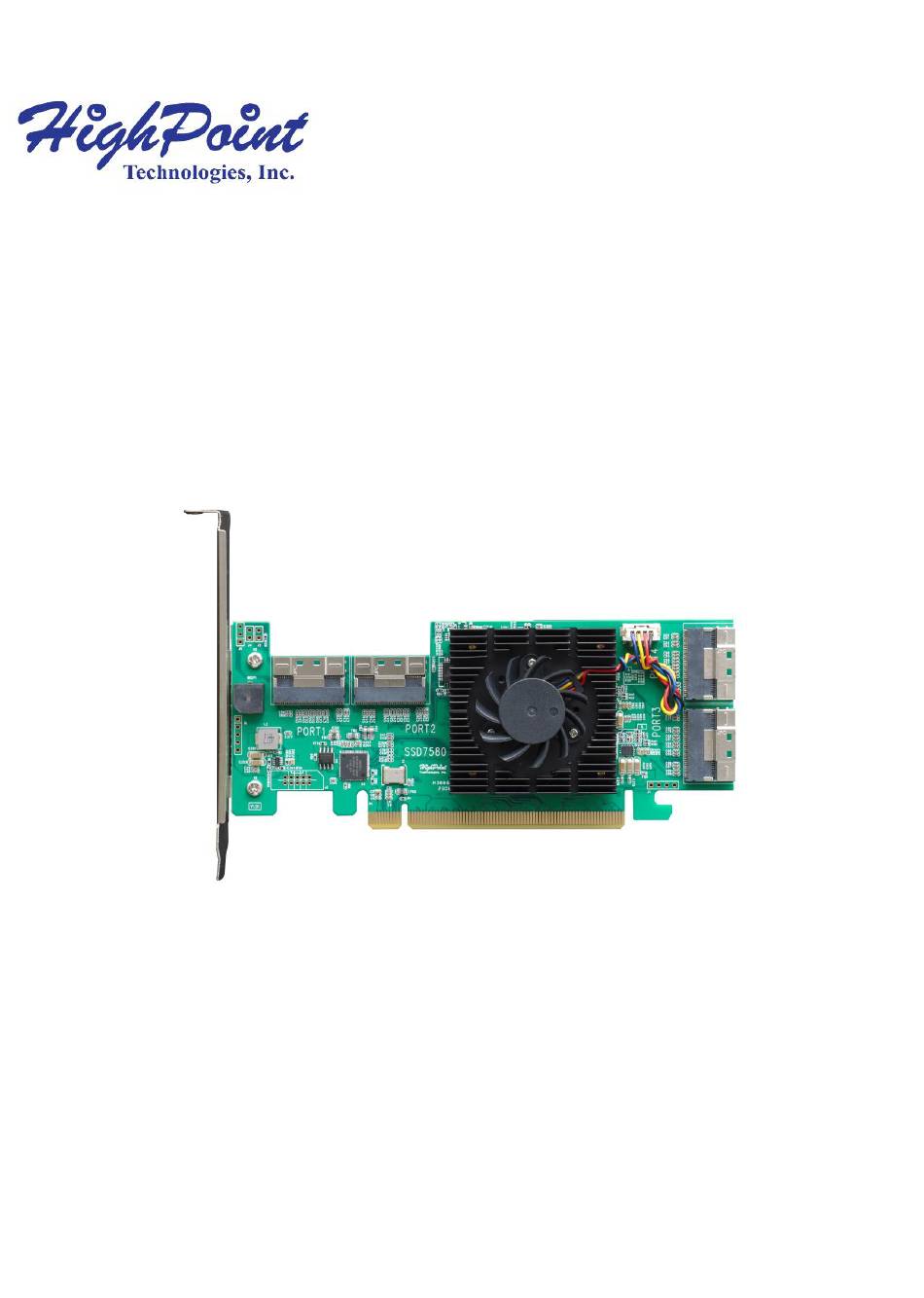

- Page 1 SSD7580C 8x U.2 Port to PCIe 4.0x16 NVMe RAID Controller Quick Installation Guide V1.01...
- Page 2 System with a free PCIe4.0 (or 3.0 or 5.0) x16 slot Windows 10 and later Windows Server 2016 and later RHEL/ Debian/ Ubuntu/ Fedora/ Proxmox/ Rocky Linux SSD7580C Kit Content 1x SSD7580C Controller Card 1x Quick Installation Guide 1x Low Profile Bracket...
- Page 3 SSD7580C Hardware Front View Port 1 Port 2 Port 4 Port 3 PCIe 4.0 x16 Host Interface Full-Height bracket (optional low-profile bracket included)
-
Page 4: Hardware Installation
These ports accept a variety of HighPoint Certified Cable Accessories (see the Accessories section towards the end of this guide for more information). The following procedure explains how to connect U.2 NVMe SSDs directly to the SSD7580C using HighPoint TS8i-8639-060 NVMe cables. - Page 5 TS8i-8639-060 NVMe cable SFF-8654 SATA-15pin SFF-8639 2. Shown above is an SFF-8654 to U.2 SFF-8639 cable with a 15-pin SATA power connector. The SFF-8639 port should be connected to the NVMe SSD’s U.2 port. The 15 pin SATA power connector should be connected to the system’s power supply.
- Page 6 3. Insert the SSD7580C controller into one of the motherboard’s open PCI-E 3.0/ 4.0/ 5.0 x16 slots. 4. Connect two pieces of NVMe SSDs with SFF-8639 port, and connect SFF-8654 port to SSD7580C. Connect the 15-pin SATA power connector to the system's power supply.
- Page 7 5. Connect the remaining NVMe SSDs to the SSD7580C controller as described above. Once complete, Power on the system. Notes: Please make sure the cables are securely connected to the SSD7580C’s device ports and the NVMe SSDs or backplane. Loose...
- Page 8 Management Installation Guides are available from the Documentation section of the product’s webpage. If you encounter any problems with damaged parts (e.g. fans, screws, etc.) during use, you need to contact our customer support team for professional help and guidance to avoid unexpected situations. You will be responsible for all the consequences of solving the problem by yourself.
- Page 9 Optional Certified Cable Accessories 8654-8643-210 SFF-8654 Host to SFF-8643 Device cable. Each cable can host up to 2x NVMe SSDs. Length: 1M (100cm)/39.37" 8654-8611-205 SFF-8654 (host) SFF-8611 Oculink Device cable. Each cable can host up to 2x NVMe SSDs. Length: 0.5M (50cm) /19"...
- Page 10 TS8i-8639-060 SFF-8654 Host to U.2 SFF-8639 Device cable with a 15-pin SATA power connector. Each cable supports two U.2 NVMe SSDs. Length: 0.6M (60cm)/23.62" 8654-8654-110 SFF-8654 to SFF-8654 cable. Each cable can host up to two NVMe SSDs. Length: 1M (100cm)/39.37"...
- Page 11 8654-CIO8-110 SFF-8654 Host to MCIO 8i Device cable. Each cable can host up to two NVMe SSDs. Length: 1M (100cm)/39.37"...
- Page 12 Resources A variety of manuals, guides and s are available for the SSD7580C RAID controller. In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides. For Software Downloads, Documentation and more information about this product, please visit the following website: https://www.highpoint-tech.com/nvme1/ssd7580c...
-
Page 13: Customer Support
Customer Support If you encounter any problems while utilizing the SSD7580C, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
