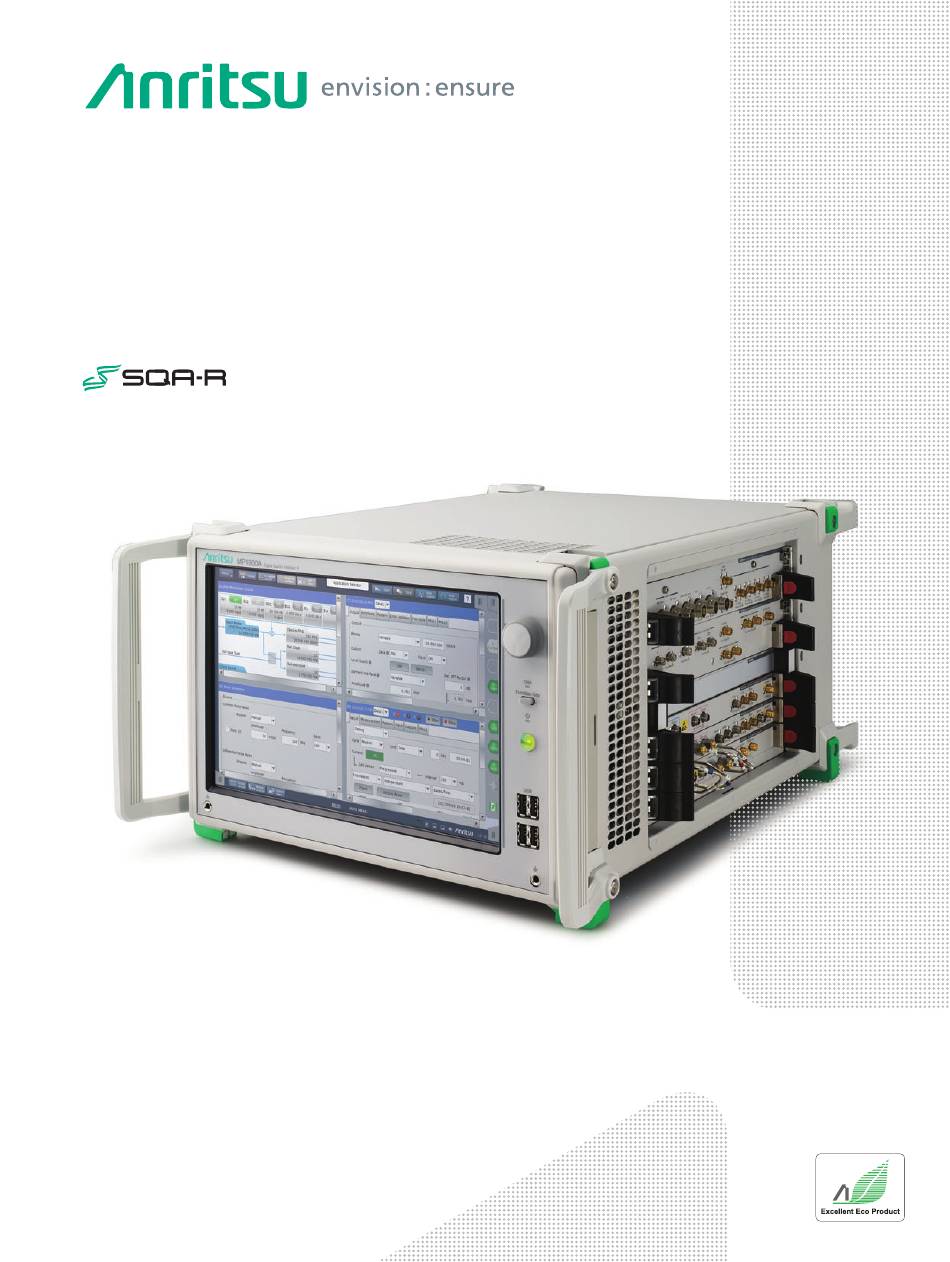

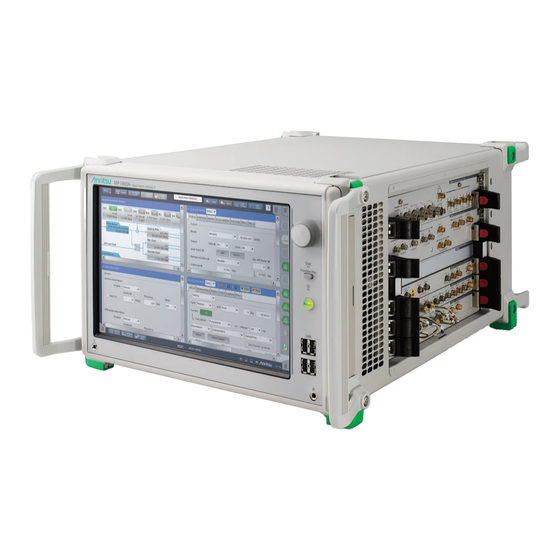

  • Page 1 Product Brochure Signal Quality Analyzer-R PCIe/USB/Thunderbolt Test Solutions* MP1900A : Refer to the 32G/64G NRZ/PAM4 Signal Integrity Test Solution Catalog (MP1900A_64G-E-A-1) for the information on MP1900A PAM4 test solution.
  • Page 2 Support 400 GbE/800 GbE and PCIe Gen4/5 Due to the explosive growth of data traffic resulting from the popularity of smartphones and mobile terminals, network interfaces are transitioning to faster 200 GbE/400 GbE standards, and PCI bus interface speeds now exceed 10G. In addition, the equipment and chipsets using these interfaces support multi-channels and multi-protocols.
  • Page 3 Wide Application Support 100 GbE/200 GbE/400 GbE/800 GbE, CEI-25G/28G/56G/112G, InfiniBand EDR/HDR, Fibre Channel PCI Express Gen 1/2/3/4/5, Thunderbolt 1/2/3, USB3.2/4 Type C, SAS-3/-4, DP1.4 Optical module, SERDES, AOC, High-speed Interconnect...
  • Page 4 Excellent Expandability All-in-One Support for Evaluating Next-Generation NRZ/PAM4 Network Interfaces and High-Speed Serial Buses The Signal Quality Analyzer–R MP1900A is a modular Bit Error Rate Tester (BERT) supporting equipment external interfaces, such as next-generation Ethernet, by installing a pulse pattern generator (PPG) for outputting high-quality multi-channel NRZ/PAM4 signals over a wide bandwidth, a high- sensitivity input error detector (ED), Jitter modulation sources for Jitter Tolerance tests, etc.
  • Page 5 Excellent Expandability Easy Flexibility for Multi-Channel Measurements at Various Transmission Rates and Formats 400 GbE is the standard for the next generation of large-capacity transmissions but it is still unknown how much further data traffic will grow. To cope with this data traffic growth, in addition to speeding-up NRZ signals and introducing multi-channel signalling, introduction of PAM4-format signals is also progressing.
  • Page 6 Multi Interface Next-Generation High-Speed Digital Interface Receiver Test The growth of IoT and Cloud computing applications is driving the need for digital equipment with high-speed serial interfaces handling large data volumes. To meet this need, the PCI Express (PCIe) and USB interfaces used by this digital equipment are transitioning to both next-generation PCIe Gen5 supporting speeds up to 32 GT/s as well as to Type-C USB3.2 Gen2 supporting 10 Gbit/s and USB4 supporting 20 Gbit/s, which is also compatible with Thunderbolt.
  • Page 7 Full Automation Full Automation Software Automation software for automating receiver tests of high-speed serial bus interfaces controls the MP1900A (PPG/ED, noise signal source, variable ISI channel) and real-time oscilloscope to automate calibration of signals required for complex operations, Jitter Tolerance tests, and creation of reports.

  • Page 8: Data Input

    SI PPG/ED Signal Integrity Evaluation Strengthened Signal Integrity Evaluations in Addition to New SI PPG, SI ED and Noise Generator Modules Emphasis and equalizer functions are built-in to correct transmission path losses and assure signal integrity as signals become faster and as high- speed devices use lower signal levels to help reduce power consumption.
  • Page 9 SI PPG/ED Signal Integrity Evaluation Jitter/Noise Addition To perform DUT receiver stressed input tolerance tests, the BER is measured under the worst conditions using a stressed signal with added jitter and voltage noise. Using the MP1900A series with the Jitter Modulation Source MU181500B, Jitter Tolerance Test MX183000A-PL001 software, and Noise Generator MU195050A for adding CM/DM/White Noise supports receiver tolerance tests in conformance with the various interface standards.
  • Page 10 SI PPG/ED Link Training The PCI Express and 10 Gbit/s USB3.2 standards require PHY layer tests MP1900A such as Jitter Tolerance tests on an established Link to assure interconnectivity between the host and device. Additionally, it is necessary to determine whether the cause is a physical or logical fault Transcation Transcation at a Link fault.
  • Page 11 SI PPG/ED High Waveform Quality and High Sensitivity Low-Noise, High-Quality BERT with Low Intrinsic Jitter Output, High Sensitivity and Wideband Input Assuring DUT design margins has become an important issue as transmission rates have become faster and PAM4 Signal formats have been introduced.
  • Page 12 Future Expandability PAM4 signaling has been adopted for the next-generation PCIe Gen6 interface. The MP1900A with installed PAM4 PPG module supports PCIe Gen1 to Gen5 measurements, such as Link Negotiation. As a result, the transition to PCIe Gen Gen6 is easy*. : Contact our business section about support for PCIe Gen6.
  • Page 13 Easy to Use Operability Improved Operability with New System View, User Interface, and Multi-windows The MP1900A features easy intuitive operability based on a redesigned GUI and large 12.1-inch touch-panel LCD. Fast mistake-free settings help shorten measurement times. The newly developed system view displays system functions as easy-to-understand blocks, supporting smooth settings and easy operation of each module.

  • Page 14: Application Examples

    Application Examples PCIe Gen3/4/5 Base Specification Receiver Test Automation Software Remote Control Test Report Test signal calibration Rx in: Victim Rx in: Aggressor PHY IC Calibration Channel MP1900A Test Board Tx out Synthesizer Jitter Modulation Source Noise Generation Source Required Items •...
  • Page 15 Application Examples PCIe Gen3/4/5 CEM Specification Receiver Test Automation Software Remote Control Oscilloscope Test Report Test signal calibration Rx in Tx out 100 MHz Ref. Clock In MP1900A CBB Controller Synthesizer Z2025A Jitter Modulation Source Noise Generation Source Required Items •...
  • Page 16 Application Examples SAS-3/-4 Receiver Test Test Report Automation Software SAS CM source (Optional) (Storage Device) to Error Detector Rx Signal Receptacle Fixture Generator* Tx Signal Test Signal + Crosstalk Signal : Should use specified ISI generator by PCIe or SAS Required Functions •...
  • Page 17 Application Examples USB Type-C Receiver Test (USB4, Thunderbolt3) Automation Software Test Report Remote Control Micro Controller USB Cable JTAG Header Cable Receptacle Board Fixture Required Functions • 20 Gbit/s PPG • Stressed Signal Calibration Function • Jitter Tolerance Function Supports USB Type-C Stressed Signal Input Test Supports specified bit rates (USB4 20G, Thunderbolt3 20.625G) •...
  • Page 18 Application Examples USB 3.2 Gen1/2 Receiver Test Automation Software Remote Control Test signal calibration Oscilloscope Test Report MP1900A USB3.2 Device/Host Required Functions • Loopback State Setting Function • Jitter Tolerance Function • Automatic Receiver Test Function • Link Training Function Link Training Function Receiver Jitter Tolerance Test The Link status required for measurement can be configured...
  • Page 19 Application Examples DisplayPort1.4 Sink Test Automation Software Test Report USB Cable Jitter Source Link Training Vector Signal BER Measurement Generator DP AUX controller ISI Generator DP Receptacle Test Signal Fixture Cross Talk Signal Required Functions • 2.7 Gbit/s to 8.1 Gbit/s PPG •...

  • Page 20: Multi-Channel

    Application Examples High-speed Interconnect Evaluation High Speed SERDES PPG/ED High Speed Interconnect Synthesizer Device/Back Plane Jitter Modulator Emphasis Differential Data #1 Aggressor Signal MP1900A Required Test Items • 32.1 Gbit/s Multi-channel signal generation • Jitter Tolerance test • Emphasis efficiency check •...
  • Page 21 Application Examples PAM4 Signal Jitter Tolerance Test using One MP1900A Jitter/Noise Addition 4 Tap Emphasis MX183000A Software Measurement Screen PCB Trace DUT Rx DUT Tx Asynchronous PCB Trace Clock Built-in Clock Recovery, Equalizer Required Items • PAM4 BER measurement • Jitter Tolerance Test BER Measurements of 64-Gbaud PAM4 Signals Jitter Tolerance Test BER measurements can be performed in real-time using the PAM4 PPG...
  • Page 22 Application Examples InfiniBand EDR (25.78G) AOC Evaluation 14 Gbit/s × 8, 26 Gbit/s × 8 Jittered Data Data #1 Data #1 4ch PPG 4ch ED Data #2 Data #2 Jitter Modulator 4ch PPG Data #3 Data #3 Synthesizer 4ch ED Data #4 Data #4 Data #5...
  • Page 23 Automation Software Selection Guide The MP1900A can execute the following receiver tests using automation software in combination with a real-time oscilloscope. Refer to the next page for option configurations required by the MP1900A. Refer to the Selection Guide (MP1900A-E-Z-1) for the supported combination of real-time oscilloscopes and automation software.
  • Page 24 MX183000A-PL022 USB Link Training 1: Anritsu is an active member of PCI-SIG and is fully engaged in helping establish new PCI Express specifications. 2: Supports PCIe Gen5 test and SAS-4 test. 3: A near-to-real environment crosstalk signal can be generated by using two channels.
  • Page 25 Module Selection Guide 32G Interconnects, 21G or 32.1G USB3.2 USB Type-C, DP 100 GbE 4ch Category Model/Name Signal Integrity/ 1ch BERT Receiver Test Receiver Test Backplanes/AOC Measurement Signal Quality Analyzer-R Main Frame MP1900A 12.5 GHz 4 Port Synthesizer MU181000B Jitter Modulation Source Synthesizer MU181000B-001 SSC Extension...

  • Page 26: Front/Rear Panel

    Signal Quality Analyzer-R MP1900A Panel Layout Front/Rear Panel Ground Jack Wrist strap to discharge static electricity Slot for secondary 2.5” HDD USB Port Ethernet Connector Four USB2 ports for connecting peripherals External: For Remote Control (Internal: Reserved for future function expansion) Power Switch Switches power on and off;...
  • Page 27 Signal Quality Analyzer-R MP1900A Panel Layout Modules 21G/32G bit/s SI PPG MU195020A Data Output, Data Output Aux Out, Aux Out Connectors outputting differential Data and Data signals Auxiliary signal output connectors Output of any of 1/N Clock, Pattern Sync, and Burst2 can be Gating Out, Gating Out selected.
  • Page 28 Signal Quality Analyzer-R MP1900A Panel Layout Modules PAM4 PPG MU196020A Data Output, Data Output Aux Out, Aux Out Connectors outputting differential Data and Data signals Auxiliary signal output connectors Output of any of 1/N Clock, Pattern Sync, and Burst2 can be Gating Out selected.

  • Page 29: Aux Input

    Signal Quality Analyzer-R MP1900A Panel Layout Modules 12.5 GHz 4port Synthesizer MU181000B 10 MHz Buff Output Trigger Output* Output 10 MHz clock for reference Outputs 1/1 or 1/64 clock frequency 10 MHz Ref Input Jitter Ext Input* Inputs 10 MHz clock for reference Inputs modulation signal source 100 MHz Ref Input* Clock Output 1 to 4...
  • Page 30 Signal Quality Analyzer-R MP1900A Specifications Refer to the MP1900A Data Sheet (MP1900A_Datasheet-E-A-1) for detailed specifications. Signal Quality Analyzer-R MP1900A 12.1” WXGA 1280 × 800 Remote Interface GPIB, LAN Module Slots External Equipment Interface USB × 6, VGA × 1, HDMI × 1 Window Embedded Standard 7 100 V(ac) to 120 V(ac), 200 V(ac) to 240 V(ac), 50 Hz to 60 Hz Power Supply...
  • Page 31 Signal Quality Analyzer-R MP1900A Specifications Refer to the MP1900A Data Sheet (MP1900A_Datasheet-E-A-1) for detailed specifications. 21G/32G bit/s SI PPG MU195020A Operation Rate (NRZ) 2.4 Gbit/s to 21 Gbit/s or 32.1 Gbit/s Number of Channels 1 or 2 0.1 Vp-p to 1.3 Vp-p (Single-end) Output Amplitude 0.2 Vp-p to 2.6 Vp-p (Differential) Emphasis...
  • Page 32 1: The Windows 10 OS will be installed in all orders from July 1, 2020. Option 2: MP1900A main units running Windows Embedded Standard 7 are retrofitted MU195050A-001 White Noise to Windows 10 using a hardware upgrade. Anritsu destroys Retrofit Option the unnecessary, post-upgrade Windows Embedded Standard 7 parts. MU195050A-101 White Noise Retrofit For details, contact our sales representative.
  • Page 33 Signal Quality Analyzer-R MP1900A Ordering Information When ordering, determine the configuration by referencing the selection guide (MP1900A-E-Z-1) and specify the type, model, name, and quantity. MU195020A MU195040A Model/Order No. Name Model/Order No. Name Module Module MU195020A 21G/32G bit/s SI PPG MU195040A 21G/32G bit/s SI ED Standard Accessories...
  • Page 34 Signal Quality Analyzer-R MP1900A Ordering Information When ordering, determine the configuration by referencing the selection guide (MP1900A-E-Z-1) and specify the type, model, name, and quantity. MU183020A MU183040B Model/Order No. Name Model/Order No. Name Module Module MU183020A 28G/32G bit/s PPG MU183040B 28G/32G bit/s High Sensitivity ED Standard Accessories Standard Accessories...

  • Page 35: Optional Accessories

    Coax skew match cable, 0.8 m K connector Junflon J12J103220-00-1 AE-TMC-10205 Coax cable, 1 m, SMA connector Optional Accessories MP1900A PCIe Measurement Component Set PICK OFF TEE Anritsu 3-68231 SMPF-SMAJ-TFLEX-10CM-5PS SMP to SMA adapter cable BNC-SMA cable K261 DC Block K241C Power Splitter 6: We recommend using either the J1789A or J1790A as the coaxial cable for the MU196020A data output.
