Summary of Contents for TREND JOINABOARD JOINTING JIG

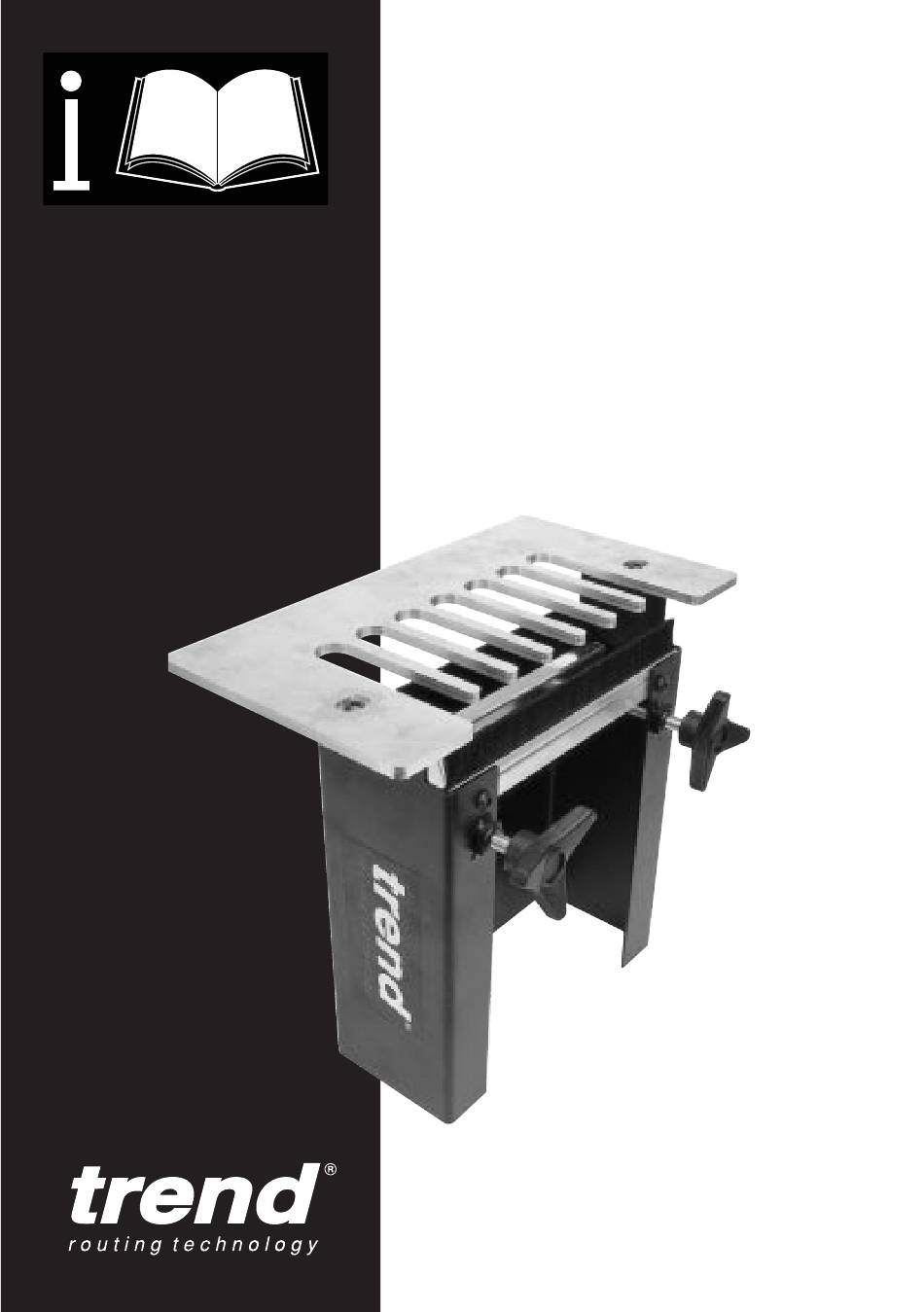

  • Page 1 JOINABOARD JOINTING JIG...

  • Page 2: Items Enclosed

    JB/JIG ITEMS ENCLOSED 2 x Machine screws button 1 x Hex key 4mm head M6 X 10mm 1 x Aluminium guide plate 1 x Chassis complete with clamping system and brush strip 1 x Instructions 1 x Cutter 2 x Countersink machine screw M5 x 10 1 x Guarantee card for guide bush...

  • Page 3: Safety Precautions

    JB/JIG SAFETY PRECAUTIONS Always switch off the power and unplug the Do not over-tighten collet as this will score the router when changing cutters or when making shank and create a weakness there. adjustments. It is also advisable to periodically check the Always wear protective goggles when routing.
  • Page 4 Trend sub-bases have a central recess to allow Makita 3612BR & 3600B Ryobi RE600N & R600N, RE601 GB/5/A fitting of the Trend guide bush, to most makes of routers and are available ready to fit the most Hitachi M12V, M12SA & TR12 GB/5/D popular makes.
  • Page 5 JB/JIG UNIBASE comprises the following Fits following Router Models Atlas Copco OFSE2000 UNIBASE Bosch GOF 1300ACE, 1600A, 1700ACE Casals FT2000VCE DeWalt DW625EK UNIBASE Draper R1800V Elu MOF 31, 77, 98, 131, 177(E) 170mm Ø Felisatti TP246(E), R346EC x 8mm Festo OF2000E 16mm Freud FT2000E 1/4"...
  • Page 6 JB/JIG Joining Boards Using the Jig For the best results when joining boards, The jig can be used vertically by clamping the ensure the ends are square and cleanly cut. wood in a vice. The jig can be taken to the work place. Place the two boards to be joined with the face sides together.
  • Page 7 JB/JIG Setting-up the Jig for 8mm to 30mm Setting-up the Jig for 31mm to 53mm thick timber thick timber Fit the Joinaboard jig over the ends of the two If using timber between 31mm to 53mm, the boards. timber will need to be cut one piece at a time. A 8mm thick backing piece will be needed for one of the two cuts.
  • Page 8 JB/JIG Adjusting the guide plate Fitting the guide bush To position the dovetails slacken the hex key Fit the 20mm guide bush to the router screws a little to allow the plate to move. ensuring it is properly centred. Plunge the Position the dovetails on the board you can router to near its maximum depth using a see, the other board will match when you...
  • Page 9 JB/JIG The Brush Strip IMPORTANT! Do not lift the router up from The brush strip reduces the vigour with which the plate with the cutter chips normally come out from the cutter. The spinning. You may damage the blades of the cutter pass through the brush without damage.
  • Page 10 JB/JIG JB/JIG - SPARE PARTS LIST v1.0 03/2000 Item Description Ref. Aluminium Guide Plate WP-JB/01 Chassis WP-JB/02 Clamp Bar WP-JB/03 3 Lobe Handwheel M8 x 80mm WP-JB/04 Rubber Pad WP-JB/05 Glue Tape For Rubber Pad WP-JB/06 ® Nut Nyloc M8 WP-NUT/09 Washer 8mm x 17mm x 1.5mm WP-WASH/15...
  • Page 11 JB/JIG JB/JIG SPARE PARTS DIAGRAM v1.0 03/2000 -11-...

  • Page 12: Troubleshooting

    JB/JIG TROUBLE SHOOTING Tear out - this occurs when cutting across the grain and can be overcome by scribing the ends of the timber with a marking knife or gauge at the height of the cutter. Dovetail joint too loose - increase depth adjustment of cutter.
