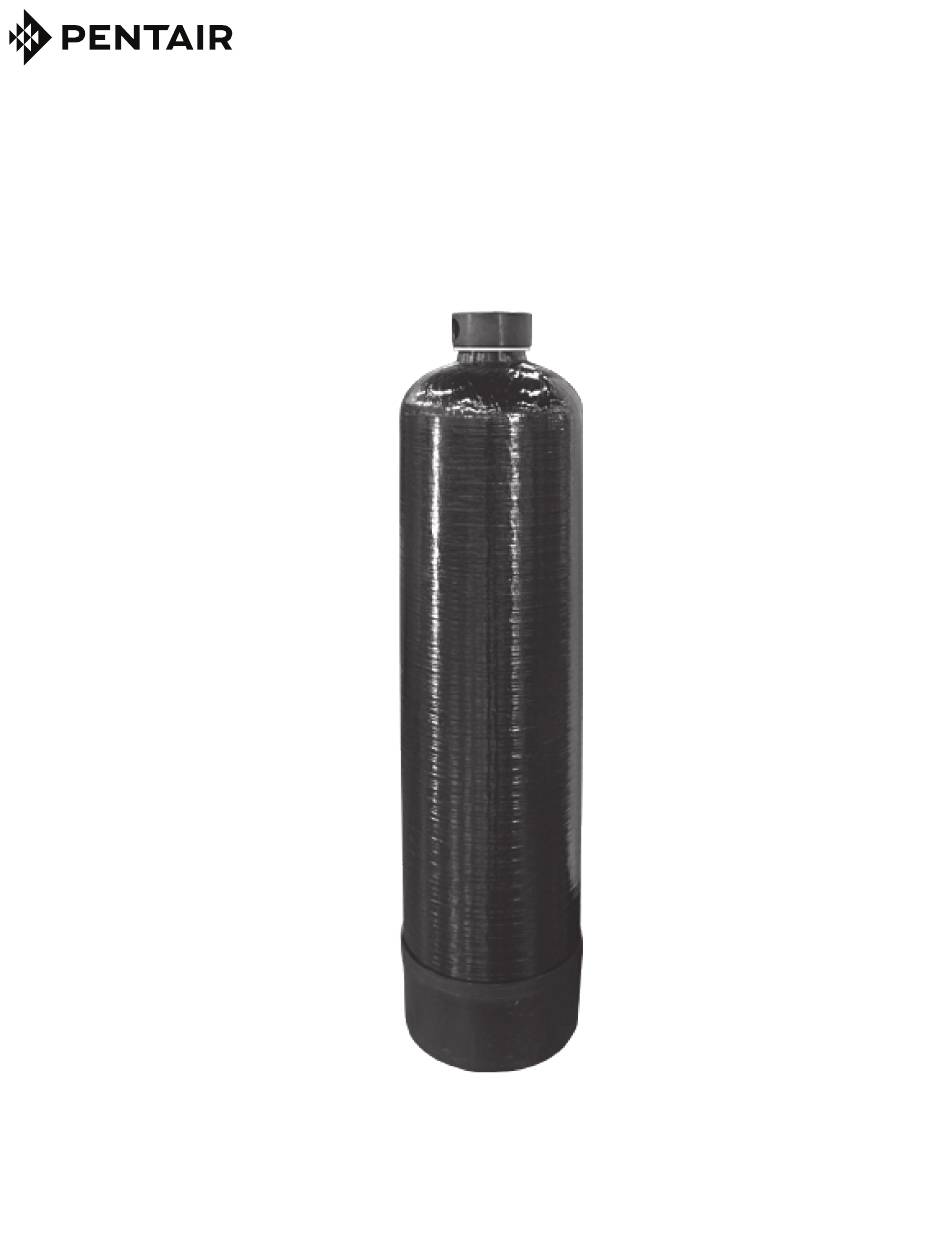

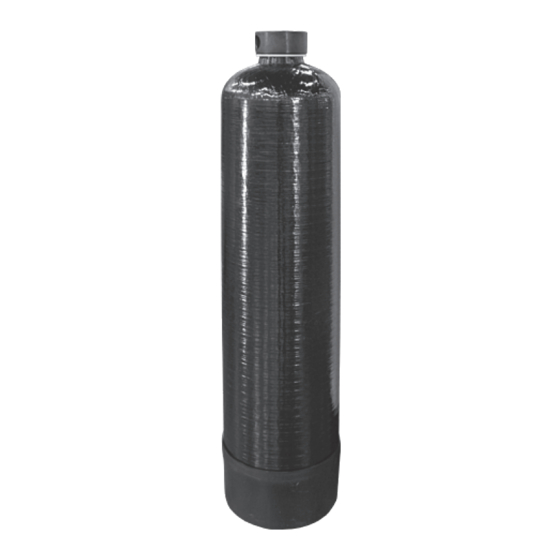

- Page 1 PELICAN HIGH FLOW SALT-FREE WATER SOFTENER ALTERNATIVE NS1354-P pentair.com/homewater...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT INFORMATION ................................2 WATER CONDITIONS FOR OPERATION ............................2 CUSTOMER SERVICE CONTACT INFORMATION ..........................2 PRODUCT OPERATION AND SPECIFICATIONS ..........................3 COMPLETE PARTS LIST ................................3 INSTALLATION INSTALLATION OVERVIEW ..............................4 SEDIMENT FILTER INSTALLATION .............................5 WATER SOFTENER ALTERNATIVE TANK INSTALLATION ....................6 MEDIA SOAK ..................................7 COMPLETE THE INSTALLATION ............................8 WHAT TO EXPECT WITH YOUR NEW WATER SOFTENER / CONDITIONER ..................9 MAINTENANCE ..................................10... -
Page 3: Product Operation And Specifications
COMPLETE PARTS LIST Note: The parts supplied are intended to accommodate a variety of water supply lines. Additional fittings may be needed to fit to your plumbing. Visit pentair.com to view our full line of installation kits. Part Description Qty. -
Page 4: Installation Overview
INSTALLATION OVERVIEW Wall Wall Prefilter Incoming Water Supply INLET OUTLET Customer-Provided Outgoing Top View Connection Water to House Bypass (Recommended) Water Softener Alternative With Salt-Free Technology Note: The plumber should follow the stickers on the head. Bypass Shutoff Valves Water to Home Water Softener Alternative... -
Page 5: Sediment Filter Installation
SEDIMENT FILTER INSTALLATION Note: Sediment filter position is at the discretion of your professional installer. As a general guideline, the sediment prefilter is typically installed in the "pre" position (as shown above) for well-water applications. For city water applications, the sediment filter is typically installed in the "post"... -
Page 6: Water Softener Alternative Tank Installation
WATER SOFTENER ALTERNATIVE TANK INSTALLATION 1. Level the Water Softener Alternative Note: See "Troubleshooting" section on tips for leveling the tank. Notice If the tank is not level, lift the tank straight up 6 inches and tap it on the ground until the tank stands vertically. The bottom of the tank is round and the boot allows the tank to stand upright. -
Page 7: Media Soak
MEDIA SOAK Wall Wall Prefilter Incoming Water Supply INLET OUTLET Customer-Provided Outgoing Top View Water to Connection House Bypass (Recommended) Water Softener Alternative With Salt-Free Technology 1. Open a cold water faucet or test spigot close to the downstream of the Water Softener. 2. Turn the water back on at the main shut-off valve allowing the system to fill with water. The air being displaced will escape through the open fixture downstream. -
Page 8: Complete The Installation
1. Turn on the main water supply and check for leaks. 2. Peel off the protective plastic wrap from the stainless steel tank jacket(s). 3. Add the Pentair logo sticker(s) in the desired location on the tank. Clean your Hot Water Heater Cleaning and restoring the plumbing system is a major benefit of the NaturSoft® system. In order to minimize the time required... -
Page 9: What To Expect With Your New Water Softener / Conditioner
WHAT TO EXPECT WITH YOUR NEW WATER SOFTENER ALTERNATIVE SYSTEM If you have never had a water softener: You will experience naturally soft water immediately after the installation. Most detergents will work better with treated water and you will be able to reduce the amount you use. However, there may be mineral deposits and hard water scale coating the inside of your pipes and fixtures. Over the first few weeks, this hard water scale will dissolve, detach itself from the pipes, and come out of your faucets. This descaling process is temporary and will steadily diminish. During these first weeks, you will notice:... -
Page 10: Maintenance
MAINTENANCE Sediment Filter It is recommended that the sediment filter be replaced every 6-9 months depending on the amount of sediment present in the water supply. If the system has been working properly and the pressure is slowing, it may be time to change the sediment filter. Check the sediment filter and replace if necessary. Prefilter Cover Sediment Filter O-Ring Blue Prefilter Housing Stand Pipe Replacing the Sediment Filter 1. Turn off the main water supply to the sediment filter system and bypass all tanks. 2. Run a faucet (cold water) inside the house to relieve the pressure. (Leave the faucet open.) 3. Unscrew the blue filter housing clockwise using the supplied filter wrench. 4. Remove the existing sediment filter and discard. -
Page 11: Troubleshooting
Check the sediment filter and replace if necessary. Notice: If you have experienced a Boil Alert or require your system to be sanitized, please go to pentair.com/assets/pwsboilalert for product sanitization instructions. PELICAN HIGH FLOW SALT-FREE WATER SOFTENER ALTERNATIVE • 11... -
Page 12: Product Warranty & Registration Form
PRODUCT WARRANTY AND REGISTRATION FORM For details on your Pentair product warranty, please visit pentair.com/assets/residential-filtration-warranty. Warranty Registration Form Send in this Warranty Registration Form to validate your warranty or visit pentair.com/register-warranty to complete the warranty registration form online. Date Item(s) were Received:...
