Fishing System Configuration; Accessory Bus - Humminbird 858c Installation And Operation Manual

The Fishing System has a wide variety of configurations
2
1
3
4
5
1
Video Out
2
RS 232 Connector
3
Power
4 Temperature
5
5 Speed
6
10
8
7
9
Optional "Y" Cable
GPS Receiver
SmartCast® Wireless Sonar Link
WeatherSense®
Sonar Transducer with Temperature

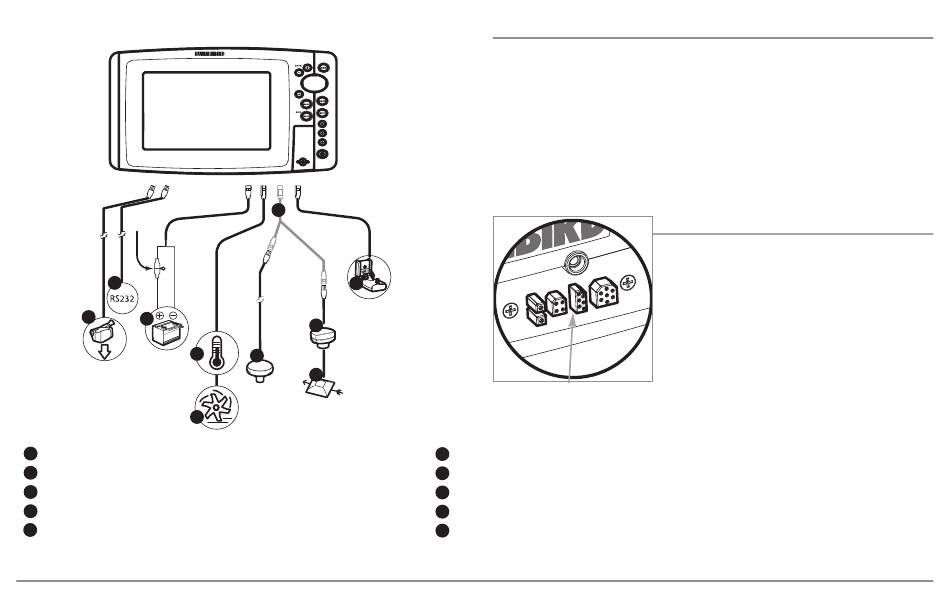

Fishing System Configuration

The Fishing System has a wide variety of configurations that will influence the
installation. The accessory bus, video output, and RS 232 connectors allow you
to expand your Fishing System capabilities. As you expand the configuration,
the menu options that correspond with the connected accessory will be added
to the menu system.
Please read all instructions that are relevant for your configuration before
beginning the installation process.

Accessory Bus

6
7
8
9
NOTE: Accessories to enable WeatherSense®, SmartCast®, and the AS WX 1
10
Satellite Weather Receiver require separate purchases. Visit our web site at
humminbird.com or contact our Customer Resource Center at 1-800-633-1468
for details.
5
Accessory Bus
Use the Accessory Bus to expand the
functionality of your Fishing
Accessories plug directly into the Fishing
System and enable advanced features such as
WeatherSense®, SmartCast®, and the AS WX 1
Satellite Weather Receiver.
When an accessory is plugged into the Fishing
System, additional functions will be added
to the menu system automatically. See
Accessories Menu Tab and Fishing System
Accessories in this manual. Also, see the
accessory's operations manual for additional
details.
Installation Introduction
System.
