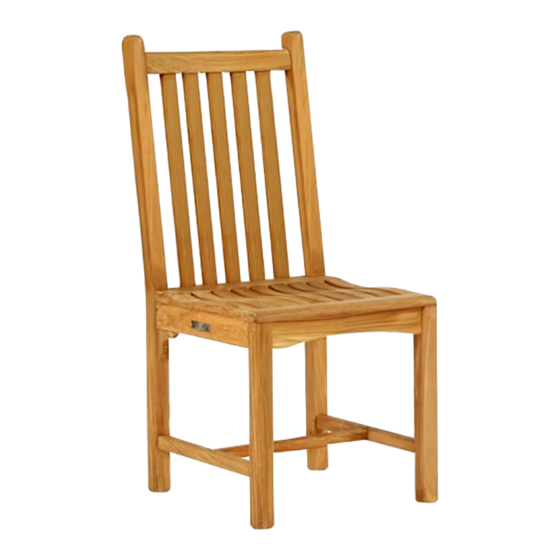

kingsley-bate CL-18 Assembly Instructions

SEAT

RIGHT END FRAME

STEP-I

Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.

NOTE: During assembly of the furniture please match all joints with the corresponding

letters or numbers stamped on the furniture.

KINGSLEY–BATE

Fine Garden Furniture

ASSEMBLY INSTRUCTIONS FOR THE CL-18

BACK

LEFT END FRAME

STEP-II

Fit the BACK, BOTTOM LEG STRETCHER and FRONT SEAT RAIL

tenons into the end frame mortise holes. If necessary, gently rock the

parts while pushing tenons into place until joints fit snugly together.

STEP-III

Fit the remaining END FRAME mortise holes onto all exposed tenons

as shown in photographs and carefully upright chair by lifting it and

setting it down while holding the END FRAMES in place securely.

* NOTE:

A TENON

B MORTISE HOLE
