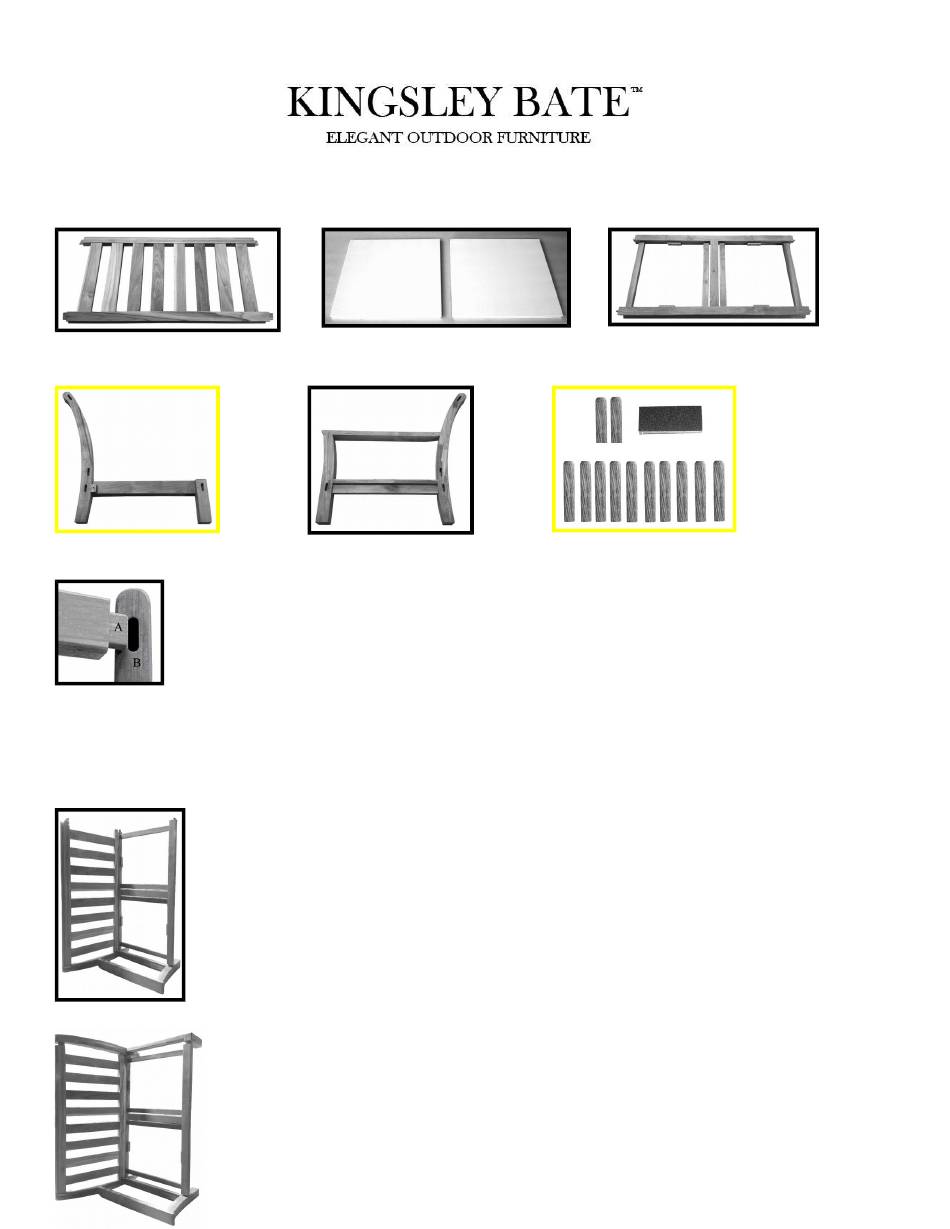

ASSEMBLY INSTRUCTIONS FOR THE CO-62R/63L
BACK
END FRAME
*NOTE
A TENON
B MORTISE HOLE

STEP-I

Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid
marring the wood.
NOTE: During assembly of the furniture please match all joints with the corresponding
letters or numbers stamped on the furniture.

STEP-II

Carefully lay down the ARMREST END FRAME with the stamped
numbers or letters on it and fit the SEAT & BACK tenons into the END
FRAME mortise holes as shown in the assembly photograph. If necessary,
gently rock the SEAT & BACK while pushing the tenons into place until
the joints fit snugly together (use a rubber mallet to drive the joints together
if necessary).
SEAT INSERTS
ARMREST END FRAME

STEP-III

SEAT
DOWELS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CO-62R and is the answer not in the manual?

Questions and answers

Summary of Contents for kingsley-bate CO-62R

  • Page 1 ASSEMBLY INSTRUCTIONS FOR THE CO-62R/63L BACK SEAT INSERTS SEAT END FRAME ARMREST END FRAME DOWELS *NOTE A TENON B MORTISE HOLE STEP-I Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood. NOTE: During assembly of the furniture please match all joints with the corresponding letters or numbers stamped on the furniture.
  • Page 2 Fit the remaining END FRAME mortise holes over and onto all exposed tenons. Using a rubber mallet or regular hammer with a wood block between the hammer and the wood, drive the tenons and mortise holes until all the joints fit snugly together. STEP-IV Hammer the dowels into their respective joints (dowel bags are marked according...

This manual is also suitable for:

Co-63l
