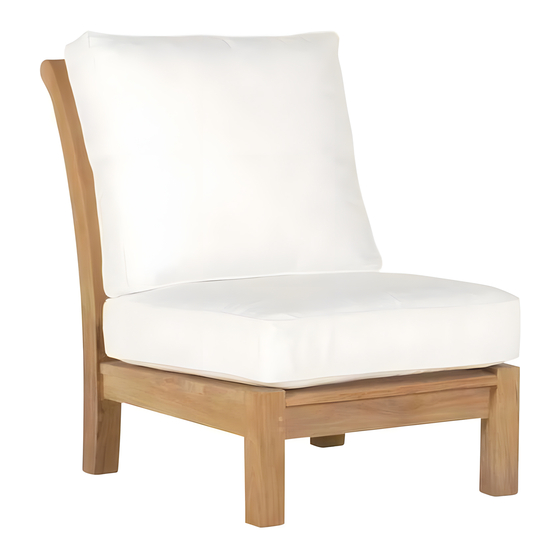

kingsley-bate CO-32 Assembly Instructions

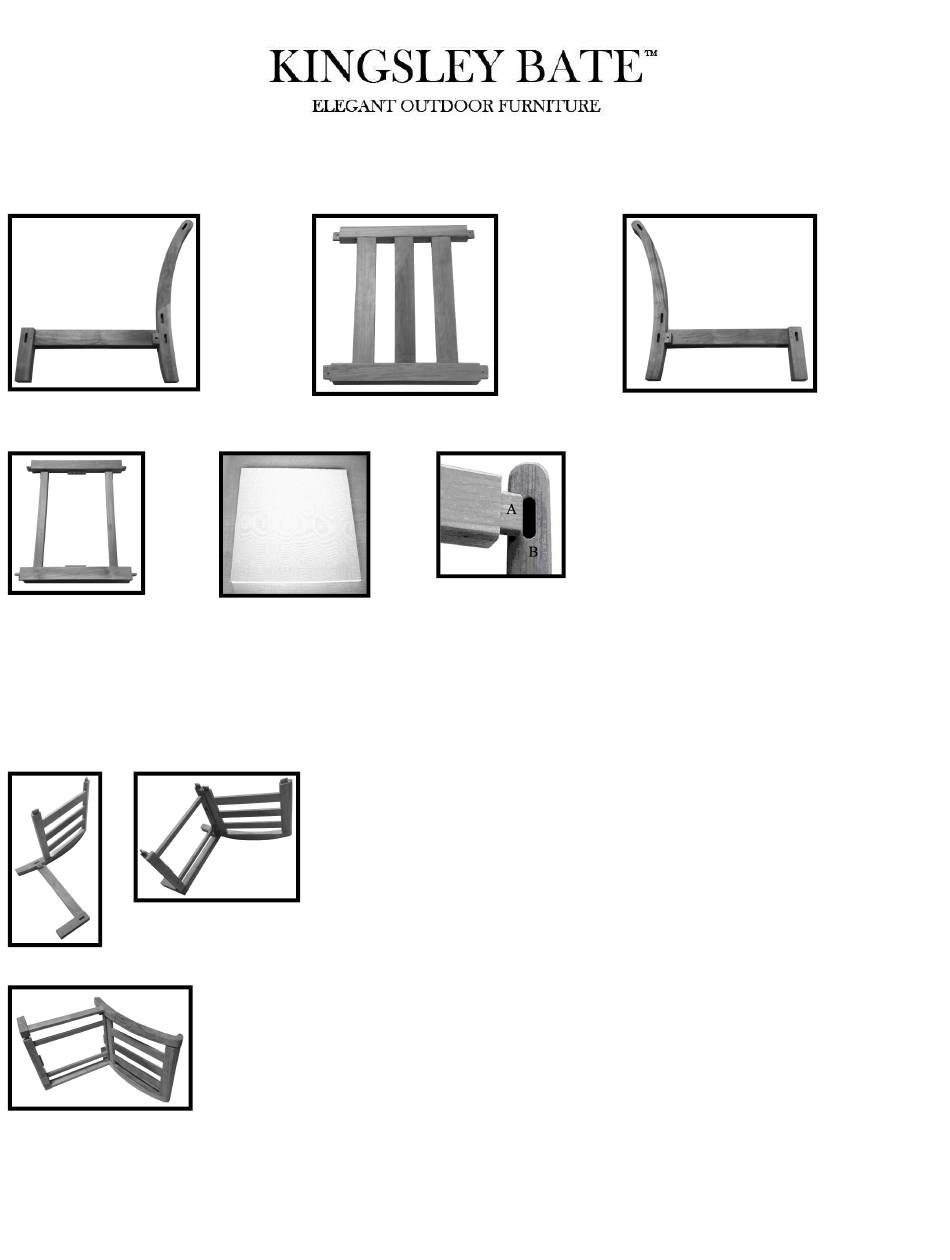

ASSEMBLY INSTRUCTIONS FOR THE CO-32

RIGHT END FRAME

SEAT FRAME

STEP-I

Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.

NOTE: During assembly of the furniture please match joints with the corresponding letters or

numbers stamped on the wood.

Carefully upright the chair by lifting it up and setting it down, tilting the chair over might

damage un-doweled tenons.

BACK

SEAT INSERT

Gently lay the END FRAME with the stamps near the

mortise holes on a clean, flat surface and fit the BACK, and

SEAT FRAME tenons into the END FRAME mortise holes.

If necessary, gently rock the parts while pushing down on

them until all the joints fit snugly together.

Carefully fit the remaining END FRAME mortise holes over all

exposed tenons and using a rubber mallet or a regular hammer with the

sanding block between the hammer and the wood, gently drive the

mortise holes onto the tenons until all joints fit snugly together.

LEFT END FRAME

* NOTE

A TENON

B MORTISE HOLE

Table of Contents

Do you have a question about the CO-32 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTIONS FOR THE CO-32 RIGHT END FRAME BACK LEFT END FRAME * NOTE A TENON B MORTISE HOLE SEAT FRAME SEAT INSERT STEP-I Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.
Page 2 STEP-IV Carefully hammer the proper dowels into the pre-drilled holes of the assembly, details are shown in the photographs and all dowels (and/or dowel bags) are marked to match where they go. NOTE: DO NOT FORCE THE DOWELS; ANY EXCESS CAN EASILY BE SANDED AWAY.
