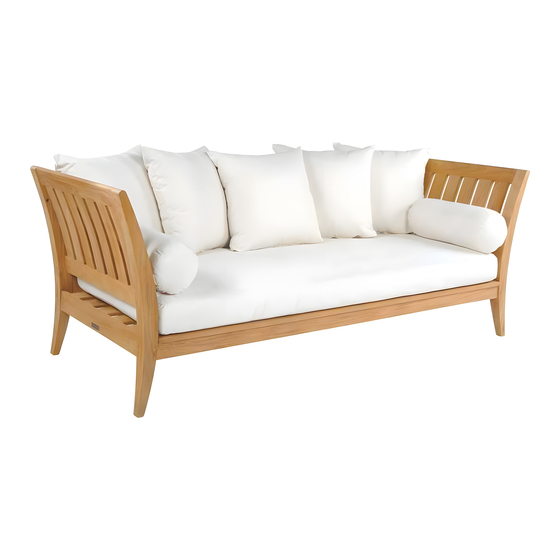

kingsley-bate IP-90 Assembly Instructions

END FRAME
SEAT
STEP-I
Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.
NOTE: During assembly of the furniture please match joints with the corresponding letters or
numbers stamped on the wood.
KINGSLEY–BATE
Fine Garden Furniture
ASSEMBLY INSTRUCTIONS FOR THE IP–90
BACK
* NOTE
A TENON
B MORTISE HOLE
STEP-II
We recommend that two people assemble this
item. Place Styrofoam under the BACK. Fit the
SEAT tenons into the BACK mortise holes as
shown in the photographs. If necessary, gently
rock the parts while pushing down on them until
all the joints fit snugly together. One person
should balance the SEAT until STEP-III is done.
STEP-III
Carefully fit both END FRAMES mortise holes
over all exposed tenons and using a rubber mallet
or a regular hammer with the sanding block
between the hammer and the wood, gently drive
the mortise holes onto the tenons until all joints
fit snugly together.
END FRAME
