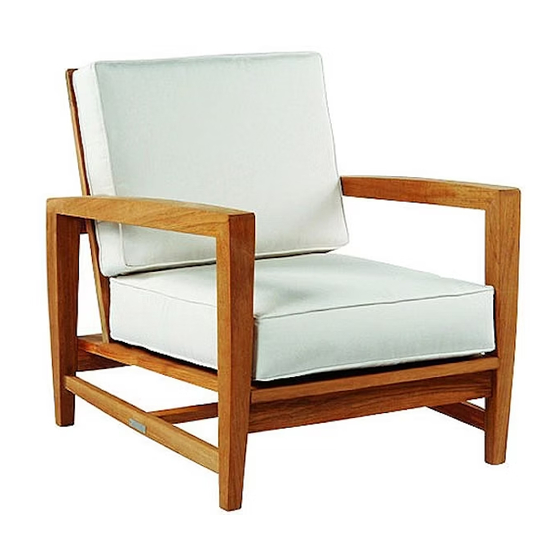

kingsley-bate AM-30 Assembly Instructions

KINGSLEY – BATE

Fine Garden Furniture

ASSEMBLY INSTRUCTIONS FOR THE AM - 30/55/80

BACK

SEAT

*NOTE

A TENON

B MORTISE HOLE

END FRAME

STEP-I

Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.

NOTE: During assembly of the furniture please match all joints with the corresponding

letters or numbers stamped on the furniture.

STEP-II

Assemble the SEAT to the BACK with the 6mm brass knock down bolts. Screw in by

hand and tighten with a proper screw driver.

Table of Contents

Need help?

Do you have a question about the AM-30 and is the answer not in the manual?

Page 1 KINGSLEY – BATE Fine Garden Furniture ASSEMBLY INSTRUCTIONS FOR THE AM - 30/55/80 BACK SEAT *NOTE A TENON B MORTISE HOLE END FRAME END FRAME STEP-I Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood. NOTE: During assembly of the furniture please match all joints with the corresponding letters or numbers stamped on the furniture.
Page 2 Place both END FRAMES flat with the mortise holes facing up. With the glue stick apply a thin film of glue to the walls of the mortise holes. If any excess glue squeezes out from the joints, wipe off with a slightly damp rag. STEP-IV Fit the assembled seat and back to one END FRAME.
Page 3 FORCE DOWELS* IF YOU HAVE ANY QUESTIONS REGARDING THE ASSEMBLY OF YOUR KINGSLEY-BATE FURNITURE, PLEASE CONTACT THE KINGSLEY-BATE DEALER NEAREST TO YOU OR KINGSLEY-BATE DIRECTLY. WE THANK YOU FOR CHOOSING OUR FURNITURE. * KINGSLEY-BATE WILL NOT TAKE RESPONSIBILITY FOR DAMAGE...
