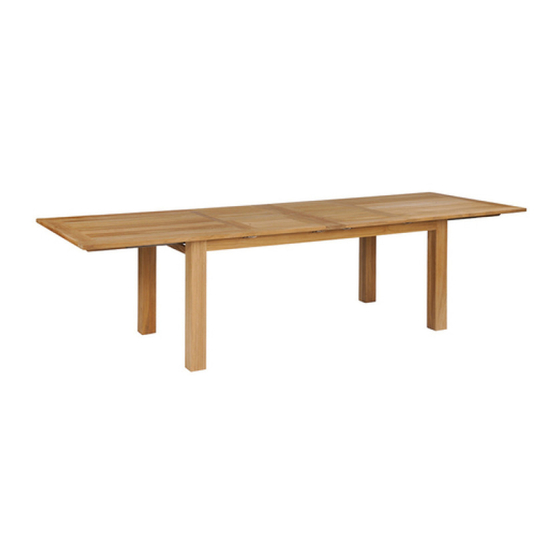

kingsley-bate Hyannis HY-118 Assembly Instructions

kingsley-bate Hyannis HY-118 Assembly Instructions

Fine garden furniture

Advertisement

ASSEMBLY INSTRUCTIONS FOR THE HY-118

LEG ASSEMBLY

HARDWARE

STEP-I

Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring
the wood.
During assembly of the furniture please match all joints with the
corresponding letters or numbers stamped on the wood.
KINGSLEY BATE
Fine Garden Furniture
TABLE TOP

STEP-II

Fit mortise holes of the LEG ASSEMBLY onto the respective tenons
of the TABLE TOP. If necessary, use rubber mallet to drive the
tenons into place until all joints fit snugly together.

STEP-III

Secure LEG ASSEMBLY as shown in photographs using 1 Knock-
Down Bolt and 2 Dowels. Use a wood block between the hammer
head and the dowel head for the last few blows to avoid marring the
wood.
LEG ASSEMBLY
* NOTE
A TENON
B MORTISE HOLE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hyannis HY-118 and is the answer not in the manual?

Questions and answers

Summary of Contents for kingsley-bate Hyannis HY-118

  • Page 1 KINGSLEY BATE Fine Garden Furniture ASSEMBLY INSTRUCTIONS FOR THE HY-118 LEG ASSEMBLY TABLE TOP LEG ASSEMBLY * NOTE A TENON B MORTISE HOLE HARDWARE STEP-I Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.
  • Page 2 **NOTE** TABLE MUST BE UPRIGHTED BY TWO PEOPLE, ROLLING THE TABLE OVER MAY CAUSE STRUCTURAL DAMAGE TO ITEM. LEGS ARE NOT DESIGNED TO HANDLE THE PRESSURE OF ROLLING OVER THE TABLE. MUST LIFT OFF THE GROUND, ROTATE OVER AND SET DOWN RIGHT SIDE UP. STEP-IV To use EXTENSIONS, release the BUCKLES under the TABLE TOP, pull the edge of the TABLE TOP out like a drawer to reveal EXTENSIONS;...
