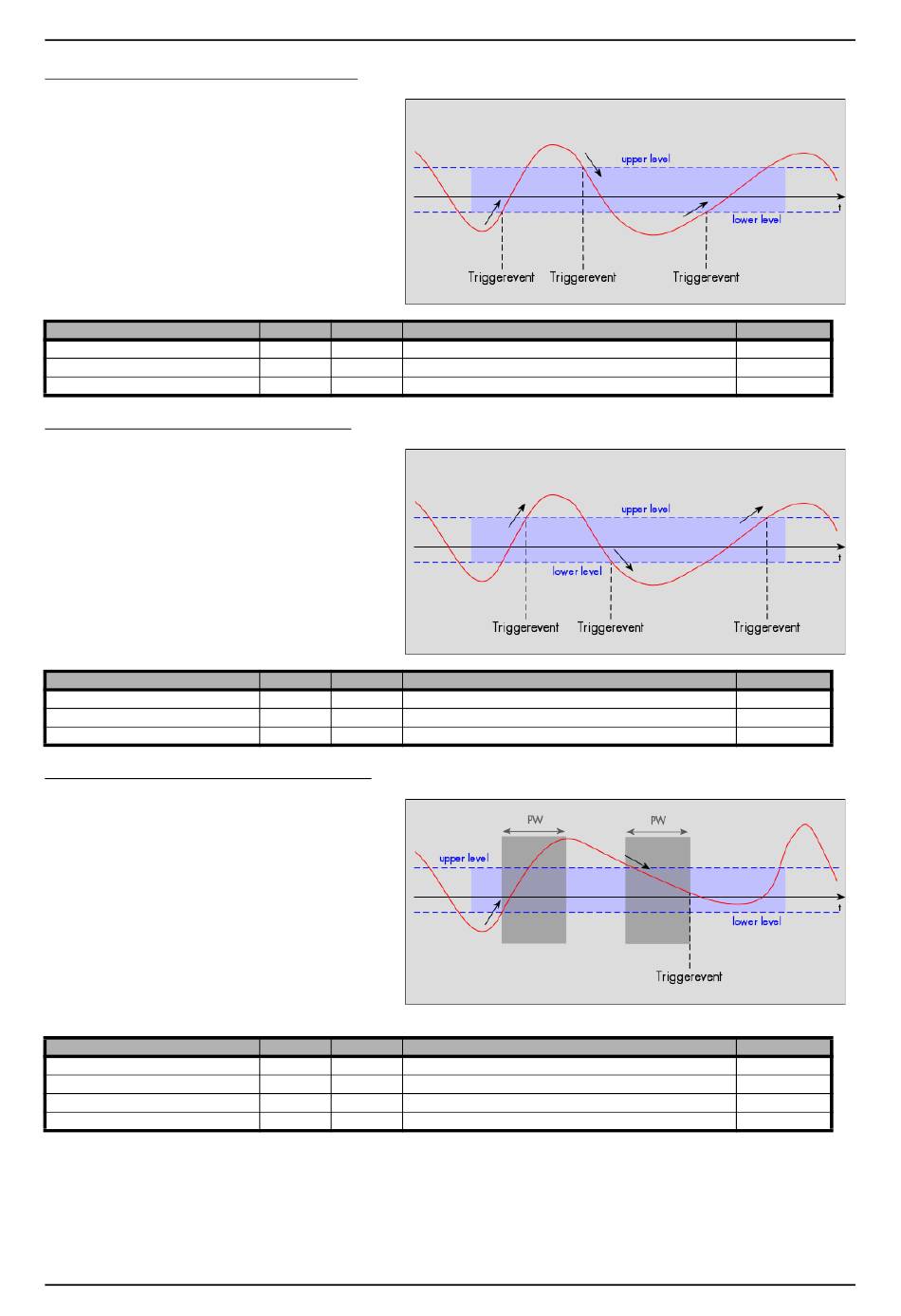

Spectrum M2p.59 Series Hardware Manual page 118

Channel Trigger
Channel window trigger for entering signals
The analog input is continuously sampled with the selected
sample rate. The upper and the lower level define a win-
dow. Every time the signal enters the window from the out-
side, a triggerevent will be detected.
Register
SPC_TRIG_CH0_MODE
SPC_TRIG_CH0_LEVEL0
SPC_TRIG_CH0_LEVEL1
Channel window trigger for leaving signals
The analog input is continuously sampled with the selected
sample rate. The upper and the lower level define a win-
dow. Every time the signal leaves the window from the in-
side, a triggerevent will be detected.
Register
SPC_TRIG_CH0_MODE
SPC_TRIG_CH0_LEVEL0
SPC_TRIG_CH0_LEVEL1
Channel window trigger for long inner signals
The analog input is continuously sampled with the selected
sample rate. The upper and the lower levels define a win-
dow. Every time the signal enters the window from the out-
side, the pulsewidth counter is started. If the signal leaves
the window before the pulsewidth counter has stopped, no
trigger will be detected.
If the pulsewidth counter stops and the signal is still inside
the window, the triggerevent will be detected.
Register
SPC_TRIG_CH0_MODE
SPC_TRIG_CH0_LEVEL0
SPC_TRIG_CH0_LEVEL1
SPC_TRIG_CH0_PULSEWIDTH
118
Value Direction set to
40610 read/write SPC_TM_WINENTER
42200 read/write Set it to the upper trigger level relatively to the channel's input range.
42300 read/write Set it to the lower trigger level relatively to the channel's input range.
Value Direction set to
40610 read/write SPC_TM_WINLEAVE
42200 read/write Set it to the upper trigger level relatively to the channel's input range.
42300 read/write Set it to the lower trigger level relatively to the channel's input range.
Value Direction set to
40610 read/write SPC_TM_WINENTER | SPC_TM_PW_GREATER
42200 read/write Set it to the upper trigger level relatively to the channel's input range.
42300 read/write Set it to the lower trigger level relatively to the channel's input range.
44101 read/write Sets the pulsewidth in samples. Values from 2 to [4G -1] are allowed.
(c) Spectrum Instrumentation GmbH
Trigger modes and appendant registers
Value
00000020h
board dependant
board dependant
Value
00000040h
board dependant
board dependant
Value
04000020h
board dependant
board dependant
2 to [4G -1]
