Operation Manual

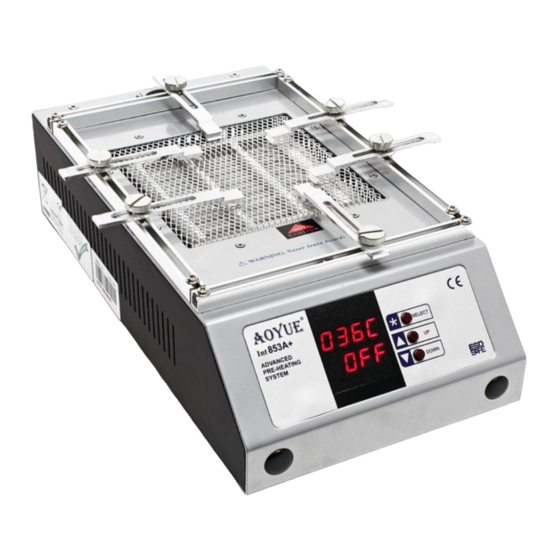

AOYUE PreHeating Station INT853A
90853A
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignific -
antly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Table of Contents
Related Manuals for WilTec AOYUE INT853A
Summary of Contents for WilTec AOYUE INT853A

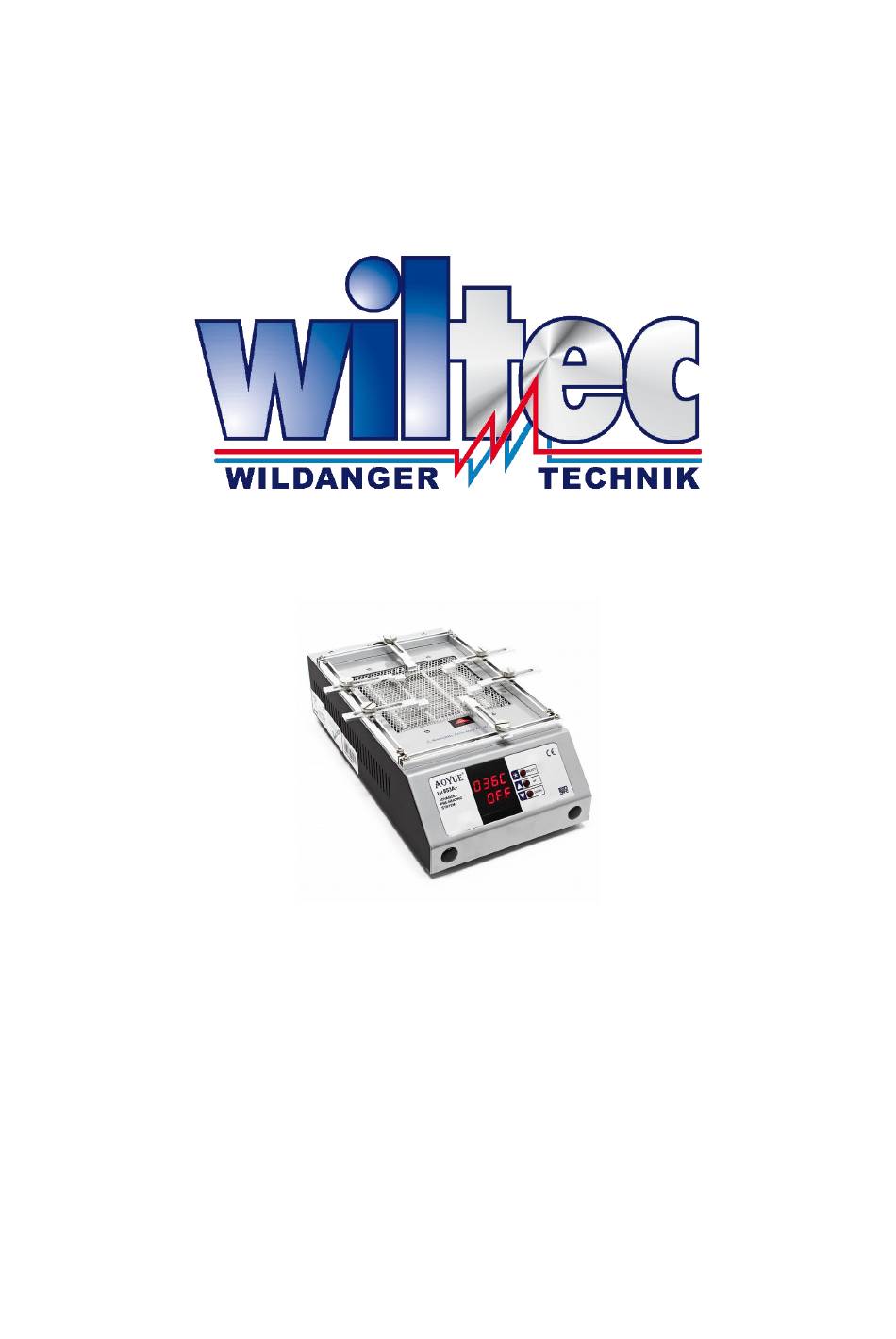

- Page 1 Operation Manual AOYUE PreHeating Station INT853A 90853A Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps and technical data can differ insignific - antly.
- Page 2 All rights reserved. The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this operating manual, nor in the diagrams and figures shown.
- Page 3 ℃ Temperature range ( 80–450 Size (㎜) 190 × 155 × 265 Weight (㎏) 2.68 Features 3-digit display protected from electrostatic discharges Heating element Quartz IR © by WilTec Wildanger Technik GmbH Item 90853A Page 3 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 4 Keep all safety notices and instructions for future use. Electrical connection The electrical connection is made to a 230 V ~ 50 Hz protective contact socket. Protection at least 10 A. © by WilTec Wildanger Technik GmbH Item 90853A Page 4 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 5 Potentially harmful fumes are generated during soldering. Only solder in a well-ventilated work area to avoid harmful concentrations. Do not make any structural changes to the device. © by WilTec Wildanger Technik GmbH Item 90853A Page 5 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 6 Explanation of the control panel № Name № Name Temperature display Temperature regulator Heating display Temperature scale switch © by WilTec Wildanger Technik GmbH Item 90853A Page 6 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 7 Reworking can begin as soon as the set temperature is reached and the heating display starts to flash. After finishing reworking, switch the main switch to off. © by WilTec Wildanger Technik GmbH Item 90853A Page 7 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 8 All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the domestic waste.
