Summary of Contents for Wasp Clay Kit

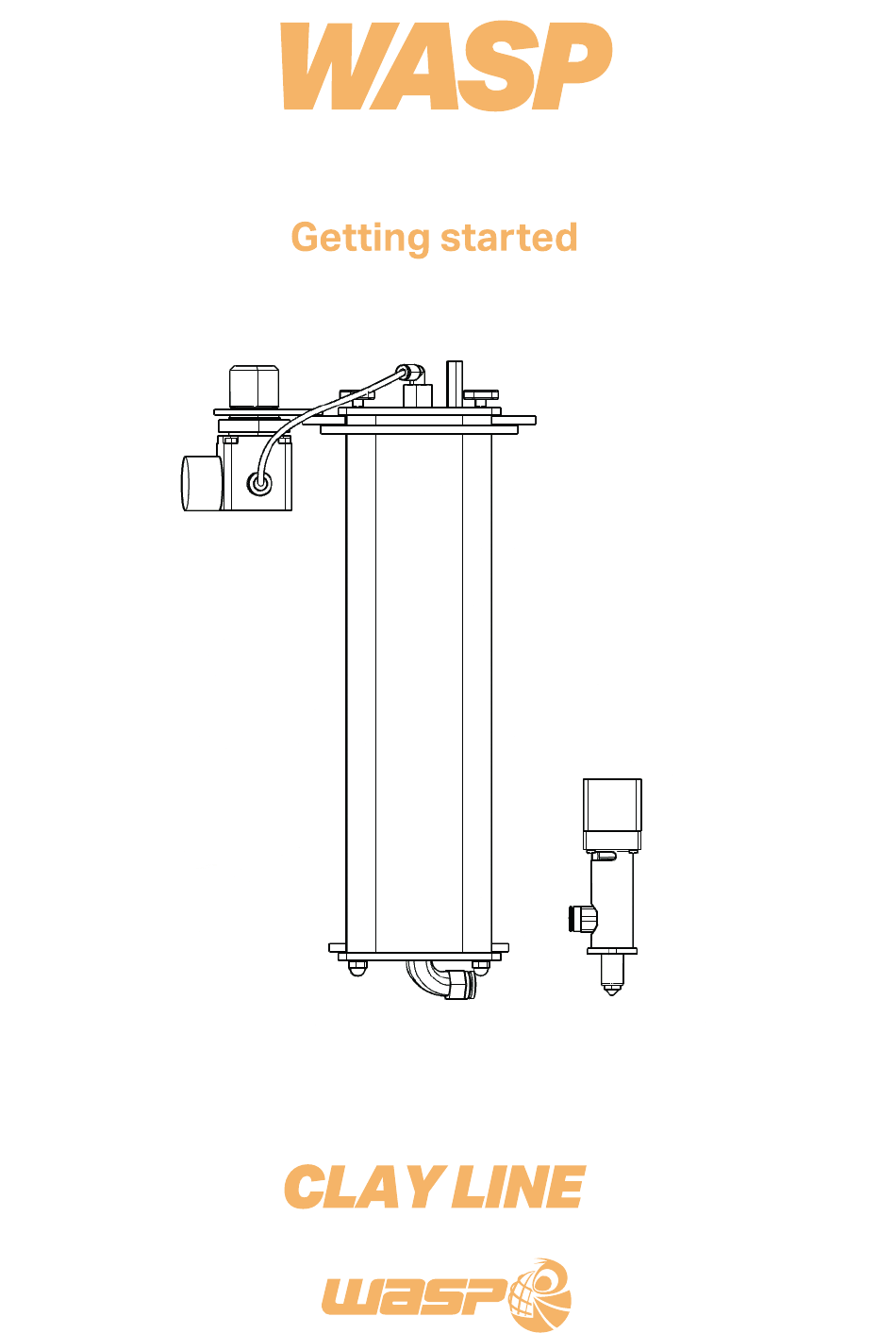

  • Page 1 CLAY KIT...
  • Page 2 For this reason the support for all of our customers and collaborators like you is fundamental. Don’t miss any news or update on WASP projects by visiting www.3dwasp.com/en/ Enjoy your printer!
  • Page 3 • 4 mm diameter nylon air pipe • 12 mm diameter teflon pipe (cut the pipe at 660 mm for model Delta WASP 2040, Delta WASP 2040 Turbo, Delta WASP 2040 Turbo 2, Delta WASP 2040 PRO) • Grease Getting Started...

  • Page 4: Installation

    The Manufacturer declines all liability for injury to persons and damage to components due to an incorrect use of the product. WASP certifies the use of the LDM extruder with ceramic material, so the use of other kind of mixtures or materials has to be considered as not covered by the technical support and warranty.
  • Page 5 WARNING: Carefully read the instruction before the use • Be sure that the two tank caps are tight before the pressurization of the tank until the thread is not visible anymore • Ensure periodically the tank and top thread and check any consume or damage •...
  • Page 6 PREPARING MATERIAL NOTE: WASP provides a mixture to be fixed with water. The amount of water depends on the kind of extruder, nozzle and environmental conditions. Normally it is possible to use the following recipe: porcelaine 95%, water 5%. With the provided machine it is possible to print the majority of the mixtures.

  • Page 7: Extruder Change

    EXTRUDER CHANGE: • Whith the printer OFF unplug the “A” connector (fig.1) of the filament puller system, the rj45 “B” connector from the extruder unit (fig.2) and unscrew the 2 screws “C” e “D” placed under the extruder plate (fig.3). Fig.1 Fig.2 Fig.3...
  • Page 8 This support is adaptable to 4070 by adding two 270 mm “F” tubes and two M6 “G” set screws contained in the kit. (Fig. 3). In the holder “H” it is possible to attach the pressure gauge (fig. 4) Fig.3 Fig.4 CLAY KIT...

  • Page 9: First Print

    FIRST PRINT LDM MODE: FFF and LDM mode switching. This operation allows the printer to automatically change some features such as E-step of the material feeder motor and disables the temperatures controllers. Follow this procedure: • menu/advanced settings /LDM mode ON. •...

  • Page 10: Maintenance

    • unscrew the black part “B” from the motor support (with the mo- tor attached) “C” • unscrew the nozzle “D” and clean it under running water • in order to remove the “E” plate unscrew the three M3 screws (not necessary) • re-build the extruder followind the process backwards CLAY KIT...
  • Page 11 (V1), it’s possible to modify these models in order to mout the system on other printers. FIRMWARE MODIFICATIONS In order to make the LDM WASP extruder working properly, it will be necessary to adapt and modify the firmware of the used printer. The following modifications will be needed: •...
  • Page 12 Share with us your best prints! INSTAGRAM YOUTUBE FACEBOOK 3dwasp 3D WASP 3dwasp #3dwasp #3dwasp #3dwasp...
