Page 1

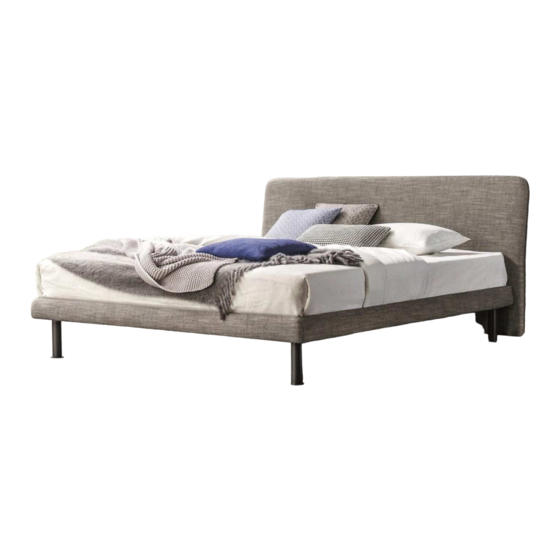

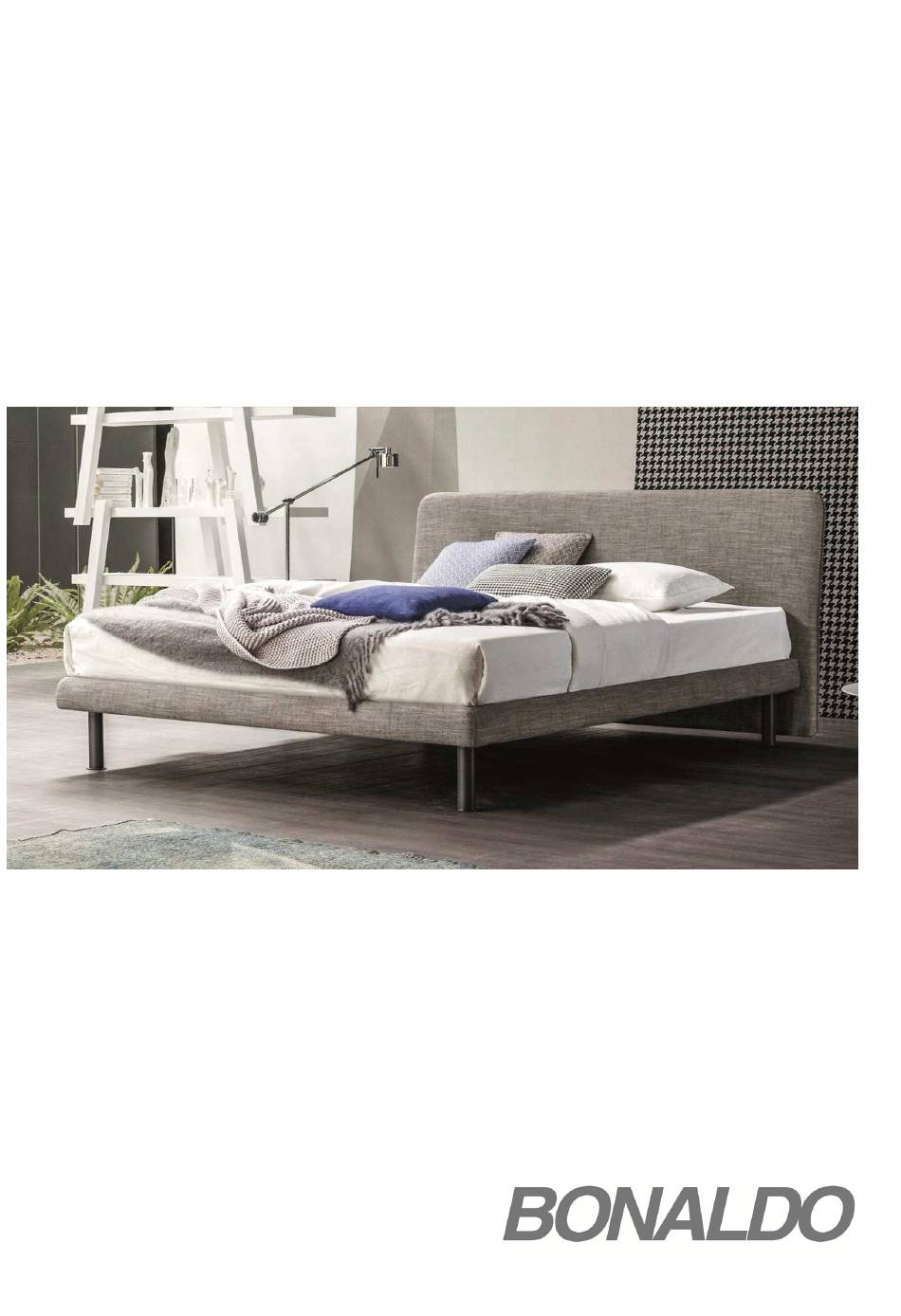

DREAM ON Letto Bett FOTO PRODOTTO Scheda montaggio Assembly instruction Aufbauanleitung Notice de montage...
Page 2
ATTENZIONE - ATTENTION - ACHTUNG - ATTENTION Maneggiare con mani pulite Handle with clean hands Auf saubere Hände achten Manipuler avec les mains propres KIT DI MONTAGGIO - ASSEMBLY KIT - MONTAGEZUBEHÖR - KIT DE MONTAGE 90/120 154/160/180/194 N° N° STAFFA PER TESTATA BRACKET FOR HEADBOARD Montagebügel für Kopfteil...
Page 3
F - G - H CHIAVE A BRUGOLA 4-5-8 Hexagon spanner, size 4 - 5 - 8 Inbusschlüssel 4 - 5 - 8 Clé Allen 4 - 5 - 8 CHIAVE FISSA 10 - 13 Spanner, size 10 - 13 Gabelschlüssel 10 - 13 Clé...
Page 4
FISSAGGIO PIEDE CILINDRICO ( fig. 1 ): Fissare il piede con la vite M e la chiave H in dotazione, come in fig 2 utilizzando il foro più interno nella rete. Fig. 1 FASTENING THE CYLINDRICAL FOOT (fig. 1): Fasten the foot using the M screw and the H spanner provided, as shown in fig 2 and using the innermost hole in the bedstead.
Page 5
Fissare le staffe sulla testiera con le viti E e la chiave G in dotazione come indicato in fig.7 e 8. Secure the brackets to the headboard using the E screws and the G spanner provided, as shown in fig.7 and 8. Fig.
