Summary of Contents for Defy DHD398

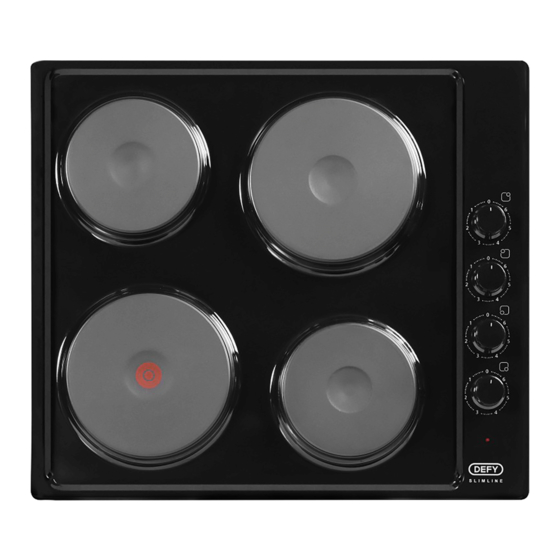

- Page 1 DHD398-DHD399-DHD415 SLIMLINE SOLID CP HOB B/SS Page 1 Cooking Instruction manual Part number: 069858...
-
Page 2: Table Of Contents
Contents 4. Preparation 1. General information Overview Tips for energy saving Technical Specifications Initial use First cleaning of the appliance 2. Important Safety Instructions General safety 5. How to use the hob Electrical safety General information about cooking Product safety Using the hob Intended use Using hotplates... - Page 3 Dear Customer, Your new Defy hob was manufactured in a state of the art facility and has passed the strictest quality control procedures. Please read this manual carefully before using your hob for the first time and then store it within easy reach for future reference.
-
Page 4: General Information
1 General Information Overview Warning lamp Hotplate Hotplates knob Base cover Burner plate Assembly clamp Warning lamp Hotplate Front right Hotplate Front left Hotplate Rear left Hotplate Rear right Figures in this manual are schematic and may not exactly match your product. Page 4... -
Page 5: Technical Specifications
2 Technical Specifications Voltage / frequency 220-240 V ~ 50 Hz Total power consumption 5000 W Circuit breaker min. 25 A Cable type / section H05V2V2-F 3 x 2,5 mm or equivalent External dimensions (height / width / depth) 60 mm / 580 mm / 510 mm Installation dimensions (width / depth) 560 mm / 480 mm Burners... -
Page 6: Important Safety Instructions
3 Important safety instructions This section contains safety Electrical safety instructions that will help you If the product has a failure, it avoid risk of injury and damage. should not be operated unless it All warranties will become void if is repaired by the Authorized you do not follow these Service Agent. -
Page 7: Product Safety
The appliance must be installed Do not place any flammable so that it can be completely materials close to the product disconnected from the mains as the sides may become hot supply. The separation must be during use. provided by a switch built into Keep all ventilation slots clear the fixed electrical installation, of obstructions. -
Page 8: Intended Use
Intended use Danger of fire: Do not This product is designed for store items on the domestic use. Commercial use cooking surface. will void the guarantee. CAUTION: The cooking This appliance is for cooking process has to be purposes only. It must not be supervised. -
Page 9: Installation
3 Installation The hob must be installed by a qualified Before installation person in accordance with the regulations in The hob is designed for installation in a force. commercial worktop. A safety distance must be left between the appliance and the Installation is the buyer’s responsibility. -
Page 10: Installation And Connection
480mm Installation and connection DANGER: The product must be installed in accordance Before starting any work on the with all local gas and electrical regulations. electrical installation, disconnect the product from the mains supply. Electrical connection There is the risk of electric shock. Connect the hob to a grounded outlet/line protected by a fuse of suitable capacity as The connection must comply with national... - Page 11 Additional protection by a residual Installing the product current circuit breaker is 1. Turning the hob upside down, place it on a recommended. flat surface. 2. In order to avoid foreign substances and 2. Open the terminal block cover with a liquids penetrating between the hob and screwdriver.
- Page 12 If it is possible to touch the bottom of the Rear view (connection holes) product if it is installed onto a drawer, then this section must be covered with a wooden plate. 1 Minimum of 30 mm When installing the hob onto a cabinet, a shelf must be installed in order to separate the cabinet Making connections to different...
-
Page 13: Package Information
Package information Packaging materials are dangerous to children. Keep packaging materials in a safe place out of reach of children. Packaging materials of the hob are manufactured from recyclable materials in accordance with Environmental Regulations. Do not dispose of the packaging materials together with domestic or other wastes. -
Page 14: Preparation
4 Preparation Initial use Tips for energy saving The surface might get damaged The following information will help you to by some detergents or cleaning use your appliance in an ecological way, materials. and to save energy: Do not use aggressive Defrost frozen dishes before cooking detergents, cleaning powders/ them. -
Page 15: How To Use The Hob
5 How to use the hob General information about cooking Using the hob DANGER Risk of fire by overheated oil! When you heat oil, do not leave it unattended. Never try to extinguish the fire with water! When oil has caught fire, immediately cover the pot or pan with a lid. -
Page 16: Maintenance And Care
6 Maintenance and care General information Do not use steam cleaners for Service life of the product will extend and the cleaning as this may cause an possibility of problems will decrease if the electric shock. product is cleaned at regular intervals. Cleaning the hob Electric hobs DANGER... - Page 17 Use only stainless steel sink Repeat several times rather Discolouration. cleaner and polish that has than resorting to a single been approved by Defy aggressive cleaning method. appliances. (Available from Defy Service Departments). Grease and fat splatter. Wipe off excess with a soft cloth or paper towel.
-
Page 18: Troubleshooting
Contact the customer care line on 086 100 3339 if you can not remedy the trouble although you have implemented the instructions in this section. Never attempt to repair a defective product yourself. PLEASE REGISTER YOUR PRODUCT AT www.defy.co.za DEFY APPLIANCES (PTY) LTD P.O.BOX 12004 JACOBS DURBAN 4026... -
Page 19: Branches
P.O. Box 33681 50 Monument Road Lusaka, 10101, Zambia Oranjesig Tel: +260 0211 242332/3 Bloemfontein Fax: +260 0211 242933 Bloemfontein.Service@defy.co.za sgiservicecentre@microlink.zm CAPE TOWN NAMIBIA: ATLANTIC DISTRIBUTORS (PTY) 5A Marconi Rd. Montague Gardens, 7441 CapeTown.Service@defy.co.za 10 Tienie Louw Street, Northern Industrial Area P.O. -
Page 20: Warranty
9 Warranty This certificate is issued by DEFY APPLIANCES (PTY) LTD manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
