2 PLATE HE 3210 CB HE 3210 CS
Record in the space below the listed information for future reference. The serial number is
on the serial label located on the underside of the hob.
SERIAL NUMBER...............................................................................................
DATE OF PURCHASE..........................................................................................
PURCHASED FROM............................................................................................
.........................................................................................................................
Page 1

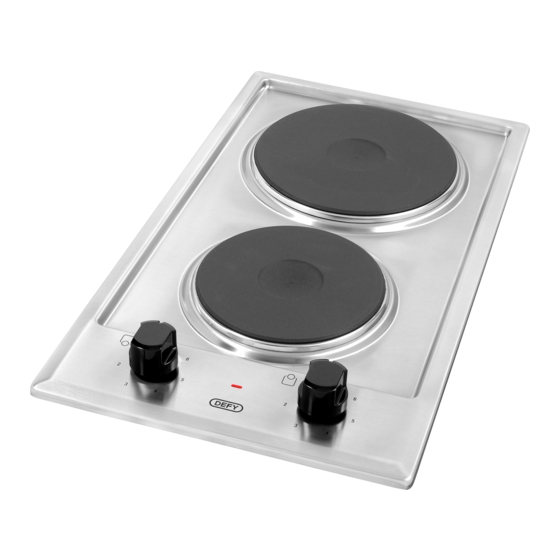

HOB DEFY SOLID
Users Manual
The manufacturer strives for continuous
improvement. For this reason, the text and
illustrations in this manual are subject to change
without notice.
DHD400
DHD401
Part number: 068990
Advertisement
Table of Contents
Related Manuals for Defy DHD400
Summary of Contents for Defy DHD400
- Page 1 DHD400 DHD401 HOB DEFY SOLID 2 PLATE HE 3210 CB HE 3210 CS Users Manual Record in the space below the listed information for future reference. The serial number is on the serial label located on the underside of the hob.
-
Page 2: Table Of Contents
Installation the product Dear Customer, Your new Defy hob was manufactured in a state of the art facility and has passed the strictest quality control procedures. Please read this manual carefully before using your hob for the first time and then store it within easy reach for future reference. -
Page 3: Important Safety Instructions
1 Important safety instructions This section contains safety instructions that Electrical safety will help you avoid risk of injury and damage. If the product has a failure, it should not be All warranties will become void if you do not operated unless it is repaired by an follow these instructions. -
Page 4: Product Safety
Product safety Prevention against possible fire risk! The appliance and its accessible parts Ensure all electrical connections are become hot during use. Care should be secure and tight to prevent risk of arcing. taken to avoid touching heating elements. Do not use damaged cables or extension Children less than 8 years of age shall be cables. -
Page 5: General Information
2 General information Hotplate Hotplate Control panel Base cover Burner plate Hotplate Front Warning lamp Hotplate Rear Page 5... -
Page 6: Technical Specifications
Technical specifications Technical Specifications Voltage / frequency 220-240 V ~ 50 Hz Total power consumption 3.0 kW Amps Cable type / section H05RR-FG 3 x 1,5 mm Cable length max. 2 m External dimensions (height / width / depth) 75 mm/288 mm/510 mm Installation dimensions (width / depth) 268 mm/490 mm Burners... -
Page 7: Installation
3 Installation The hob must be installed by a qualified Before installation person accordance with national The hob is designed for installation in a regulations. Installation is the buyer’s commercial worktop. A safety distance must responsibility. The manufacturer accepts be left between the appliance and the no liability for this service. -
Page 8: Installation And Connection
Installation and connection DANGER Before starting any The product must be installed in accordance work on the electrical installation, with all local electrical regulations. disconnect the product from the mains supply. Electrical connection There is the risk of electric shock! Connect the product to a grounded outlet/ Power cable plug must be within line protected by a fuse of suitable capacity... - Page 9 » Rear view (connection holes) Connection clamps will be supplied as installed onto the hob. Making connections to different holes is not a good practice in terms of safety since it can damage electrical system. Final check 1. Plug in the power cable and switch on the hobs fuse.
-
Page 10: Preparation
4 Preparation Tips for energy saving Initial use First cleaning of the appliance The following information will help you to use your hob in an ecological way, and to save The surface might get damaged energy: by some detergents or cleaning materials. -
Page 11: How To Use The Hob
5 How to use the hob General information about cooking DANGER Risk of fire by overheated oil! When you heat oil, do not leave it unattended. Never try to extinguish the fire with water! When oil has caught fire, immediately cover the pot or pan with a lid. -
Page 12: Using The Hobs
Using the hobs Turning on the hotplates Use hotplate knobs to operate the hotplates. Move the hotplate knobs to the relevant level in order to obtain the desired cooking level. Cooking 2 — 3 4 — 6 level warming stewing, cooking, simmering roasting,... -
Page 13: Maintenance And Care
6 Maintenance and care General information Do not use steam cleaners to Service life of the product will extend and the clean the appliance as this may possibility of problems will decrease if the cause an electric shock. product is cleaned at regular intervals Cleaning the hob DANGER Glass ceramic surfaces... -
Page 14: Troubleshooting
Never attempt to repair a defective product yourself. PLEASE REGISTER YOUR PRODUCT AT www.defy.co.za DEFY APPLIANCES (PTY) LTD P.O.BOX 12004 JACOBS DURBAN 4026... -
Page 15: Service Centres
0082 Nosso Show Room Tel: 012 377 8300 Av: da Industrias, Parcela No.735 * 735A Pretoria.Service@defy.co.za Machava, Maputo OTHER AREAS ARE SERVICED BY OVER 200 AUTHORISED SERVICE AGENTS. PLEASE CONSULT THE NEAREST REGIONAL DEFY SERVICE CENTRE FOR DETAILS. Page 15... -
Page 16: Warranty
Point 1 of this Certificate. 6. For warranties in the Republic of South Africa and Sub-Saharan Africa, please contact your nearest Defy office. Please refer to page 15 for respective South African service agents and Sub-Saharan Africa service agents.
