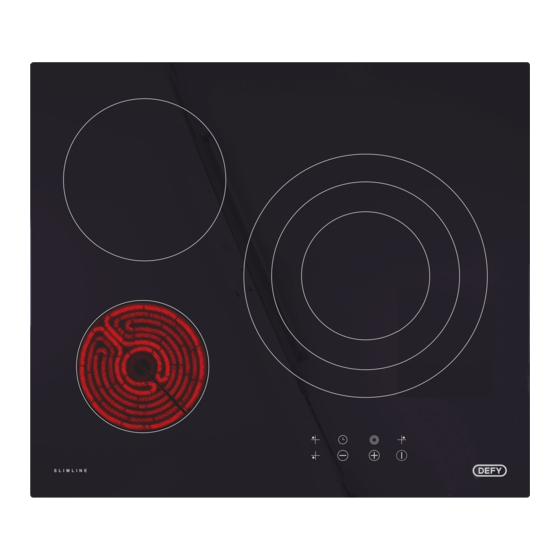

- Page 1 DHD601 SLIMLINE HOB TC Page 1 Cooking Instruction manual Part number: 071180...
- Page 2 Dear Customer, Your new Defy hob was manufactured in a state of the art facility and has passed strict quality control procedures. Please read this manual carefully before using your hob for the first time and then store it within easy reach for future reference.
-
Page 3: Table Of Contents
Contents 1. Technical specifications 5. Controls How to use your hobs features 2. Important Safety Instructions Built in safety General safety Electrical safety 6. Maintenance and care Product safety Troubleshooting Intended use Error codes Safety for children Installation check list Package information 7. -
Page 4: Technical Specifications
Technical Specifications Model DHD601 SLIMLINE HOB TC Volts 220V –240V 50/60Hz~ Amperes 23.75A Plate power rating (ø, mm/ W) Middle cooking zone right 300 mm 3 Stage Vitroceramic Plate 2700 W Front cooking zone left 165 mm Vitroceramic Plate 1200 W... -
Page 5: Important Safety Instructions
Defy Young children should be shall not be liable for any supervised to ensure that they problems arising due to the do not play with the appliance. -
Page 6: Product Safety
Never use the product when If the power connection cable for the product is damaged, it your judgment or coordination is impaired by the use of must be replaced by the alcohol and/or drugs. manufacturer, its service agent Be careful when using or similarly qualified persons in alcoholic drinks in your dishes. -
Page 7: Intended Use
This appliance is not intended Do not spray aerosols in the to be operated by means of vicinity of this appliance while external timer or separate it is in operation. remote control system Do not modify this appliance Where this appliance is Intended use installed in a marine craft or in This product is designed for... -
Page 8: Package Information
Package information DANGER Broken Packaging materials of the glass! hob are manufactured from Do not let any objects recyclable materials in fall onto the hob. Even accordance with small objects may Environmental Regulations. damage the hob. Do not use glass ceramic hobs Do not dispose of the with cracks. -
Page 9: Installation
Installation Installation is the buyer’s responsibility. The Cupboard design manufacturer accepts no liability for this Cooking appliances generate considerable service. Any action that the manufacturer heat. The layout and materials of the has to take as a result of an erroneous mounting cabinet should take account of installation will not be covered by the these characteristics. -
Page 10: Safety Installation
Earth leakage This hob should not be connected through an earth leakage system. Refer to S.A.N.S. 10142 Aperture size Safety installation A removable horizontal board must be fitted below the hob and 75mm away from the worktop bottom face. Space between this board and the appliance must be empty and no objects may be stored or kept there. -
Page 11: Fitting The Hob
Fitting the hob The hob is supplied with securing clips. These fit into dedicated slots around the hob base. (see picture A). Insert the clips. (as shown in picture B). Lift the clips up until they click into place. (as shown in picture C). To avoid liquid spills penetrating between the hob and the worktop, apply the supplied self- adhesive seal to the... -
Page 12: Preparation
Preparation Tips for energy saving Only use clean pots with an even flat base to prevent cracking on glass due to hot The following information will help you to use spots. your hob in an ecological way, and to save Initial use energy: First cleaning of the appliance... -
Page 13: Controls
Controls How to use your hobs features 3. How to activate the Triple Zone 1. Switching the cooktop on and off If you want to activate the second ring of the triple zone, press as shown below. You To switch the cooktop on, hold down the will hear a short beep power button for one second. -
Page 14: Built In Safety
5. How to Use the timer 2. Overflow Safety Select the cooking zone that you would like If an object or liquid is placed on the hob to set a timer for. controls for more than 5 seconds you will hear 2 short beeps followed by one long beep every 30 seconds until the liquid or Hold down the timer button. -
Page 15: Maintenance And Care
Non-Sugary Clean the with a nylon pad Spills or and suitable cleaning Food Spills detergent. The glass must be wiped dry after cleaning. Please check for suitable detergents and blade scrapers at any Defy Service Centre. Page 15... -
Page 16: Troubleshooting
Troubleshooting Appliance errors The following are not factory faults and so the owner is fully responsible for: Damage to the exterior surface. Breakage of the glass and/or other components. Damage caused by moving the appliance. Damage through improper use or installation of the appliance. -
Page 17: Error Codes
Error codes Heater display Fault Solution Touch control software error. If error has occurred disconnect and reconnect the hob to the power supply. If the error occurs suddenly in a normal operation or if the error persists, contact the customer care line. Touch control zone is too hot and Wait until temperature goes down. -
Page 18: Installation Check List
Installation check list Is the hob earthed? Check that the power supply is cable is not easily accessible and that it does not touch the hob base. Is the hob installed securely? Do all the plates work on the hob? Do all the functions on the hob work? The owner of the hob is responsible for the installation of the product, the manufacturer accepts no liability for this service. -
Page 19: Branches
P.O. Box 33681 50 Monument Road Lusaka, 10101, Zambia Oranjesig Tel: +260 0211 242332/3 Bloemfontein Fax: +260 0211 242933 Bloemfontein.Service@defy.co.za sgiservicecentre@microlink.zm CAPE TOWN NAMIBIA: ATLANTIC DISTRIBUTORS (PTY) 5A Marconi Rd. Montague Gardens, 7441 CapeTown.Service@defy.co.za 10 Tienie Louw Street, Northern Industrial Area P.O. -
Page 20: Warranty
Warranty This certificate is issued by DEFY APPLIANCES (PTY) LIMITED manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
