Hobo MX1104 Quick Start

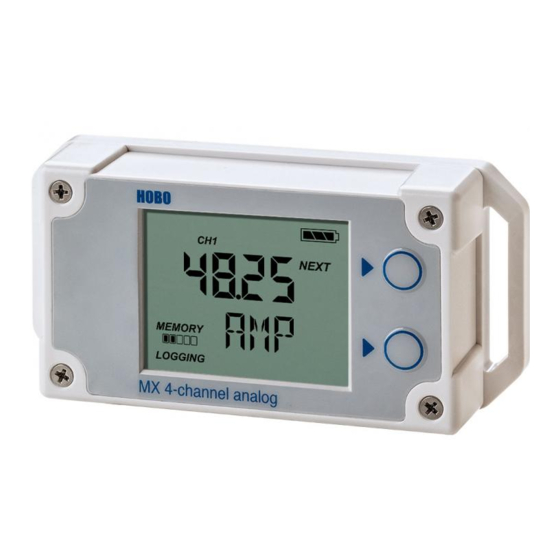

Quick Start for HOBO® Analog/Temp/RH/Light (MX1104) & 4-Channel Analog (MX1105) Loggers
• Download HOBOconnect® to a phone or tablet from the App Store® or Google Play™.
1
• Download HOBOconnect to a Windows® computer from www.onsetcomp.com/products/software/hoboconnect.
2
Open the app. Enable Bluetooth® in your device settings if prompted.
3
Install any external self-describing sensors as shown.
Using the diagram on the
logger housing shown above as
reference, insert the plug into
the analog sensor port.
For other types of external analog sensors, insert the sensor plug into an analog sensor port.
4
Press either button on the logger to wake it up.
5
Tap Devices in the app. Tap the logger in the app to connect to it. (Press the top button on the logger again to bring it to the top of the list if there
are multiple loggers.) If the logger does not appear in the list, make sure it is within range of your phone, tablet, or computer.
6
a. Once connected, tap
b. Choose your logger settings, including selecting settings for any external analog sensors. Make sure all channels you want to log are enabled.
c. Tap to save the settings to the logger. The logger will begin logging based on the settings you selected. Press the start button on the logger if
you set it up to start logging with a button push.
23967-E MAN-MX1104-MX1105-QSG
Quick Start for HOBO® Analog/Temp/RH/Light (MX1104) & 4-Channel Analog (MX1105) Loggers
• Download HOBOconnect® to a phone or tablet from the App Store® or Google Play™.
1
• Download HOBOconnect to a Windows® computer from www.onsetcomp.com/products/software/hoboconnect.
2
Open the app. Enable Bluetooth® in your device settings if prompted.
3
Install any external self-describing sensors as shown.
Using the diagram on the
logger housing shown above as
reference, insert the plug into
the analog sensor port.
For other types of external analog sensors, insert the sensor plug into an analog sensor port.
4
Press either button on the logger to wake it up.
5
Tap Devices in the app. Tap the logger in the app to connect to it. (Press the top button on the logger again to bring it to the top of the list if there
are multiple loggers.) If the logger does not appear in the list, make sure it is within range of your phone, tablet, or computer.
6
a. Once connected, tap
b. Choose your logger settings, including selecting settings for any external analog sensors. Make sure all channels you want to log are enabled.
c. Tap to save the settings to the logger. The logger will begin logging based on the settings you selected. Press the start button on the logger if
you set it up to start logging with a button push.
23967-E MAN-MX1104-MX1105-QSG
to set up the logger.
to set up the logger.
The flat part of the plug will be
Turn the plug one-
facing up when properly installed.
quarter clockwise.
The flat part of the plug will be
Turn the plug one-
facing up when properly installed.
quarter clockwise.
