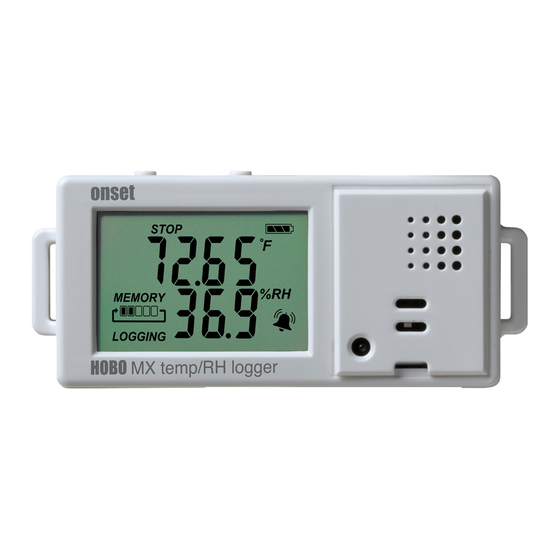

HOBO® MX Temp/RH Data Logger (MX1101) Manual
HOBO MX Temp/RH
Data Logger
Models: MX1101
MX1101-01 (Japan
and Korea)
Included Items:
• Command™ strip
• Double-sided tape
• Hook & loop strap
• Two AAA 1.5 V alkaline
batteries
Required Items:
• HOBOconnect app
• Mobile device with
Bluetooth and iOS,
iPadOS®, or Android™, or a
Windows computer with a
native BLE adapter or
supported BLE dongle
17840-U
The HOBO MX Temp/RH data logger records and transmits temperature and relative humidity
(RH) in indoor environments with its integrated sensors. This Bluetooth® Low Energy (BLE)-
enabled logger is designed for wireless communication with a phone, tablet, or computer.
Using the HOBOconnect® app, you can easily configure the logger and then download logged
data to view or export for further analysis. The logger can calculate minimum, maximum,
average, and standard deviation statistics and can be configured to trip audible or visual alarms
at thresholds you specify. The logger also supports burst logging in which data is logged at a
different interval when sensor readings are above or below certain limits. This compact data
logger also has a built-in LCD screen to display the current temperature, relative humidity,
logging status, battery use, memory consumption, and more.
Specifications
Temperature Sensor
Range
Accuracy
Resolution
Drift
RH Sensor*
Range
Accuracy
Resolution
Drift
Response Time
Temperature
RH
Logger
Radio Power
Transmission Range
Wireless Data Standard
Logger Operating Range
Logging Rate
Logging Modes
Memory Modes
Start Modes
Stop Modes
Restart Mode
Time Accuracy
Battery Life
Battery Type
Memory
Full Memory Download Time
*Per RH sensor manufacturer data sheet
-20° to 70°C (-4° to 158°F)
±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A
0.024°C at 25°C (0.04°F at 77°F), see Plot A
<0.1°C (0.18°F) per year
1% to 90% (non-condensing)
±2% from 20% to 80% typical to a maximum of ±4.5% including
hysteresis at 25°C (77°F); below 20% and above 80% ±6% typical
0.01%
<1% per year typical
7:30 minutes in air moving 1 m/s (2.2 mph)
20 seconds to 90% in airflow of 1 m/s (2.2 mph)
1 mW (0 dBm)
Approximately 30.5 m (100 ft) line-of-sight
Bluetooth Low Energy (Bluetooth Smart)
-20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
1 second to 18 hours
Fixed interval (normal, statistics) or burst
Overwrite when full or stop when full
Immediate, push button, date and time, or next interval
When memory is full, push button, date and time, or after a set
logging period
Push button
±1 minute per month at 25°C (77°F), see Plot B
1 year, typical with logging interval of 1 minute. Faster logging and/or
statistics sampling intervals, entering burst logging mode, and
remaining connected with the app affects battery life. Excessive
readouts, audible alarms, and paging all affect battery life. Visual
alarms and other events can have a marginal effect on battery life.
Two AAA 1.5 V alkaline batteries, user replaceable
128 KB (84,650 measurements, maximum)
Approximately 60 seconds; may take longer the further the device is
from the logger

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX1101 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hobo MX1101

  • Page 1 HOBO® MX Temp/RH Data Logger (MX1101) Manual The HOBO MX Temp/RH data logger records and transmits temperature and relative humidity (RH) in indoor environments with its integrated sensors. This Bluetooth® Low Energy (BLE)- enabled logger is designed for wireless communication with a phone, tablet, or computer.
  • Page 2 HOBO MX Temp/RH Data Logger (MX1101) Manual Specifications (continued) LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range Size 3.66 x 8.48 x 2.29 cm (1.44 x 3.34 x 0.9 in.) Weight 56 g (1.98 oz)
  • Page 3 HOBO MX Temp/RH Data Logger (MX1101) Manual LCD Symbol Description LCD Symbol Description The logger has been started with push button stop This is an example of an RH reading. enabled; press and hold the Start/Stop button for 3 seconds to stop the logger.
  • Page 4: Configuring The Logger

    HOBO MX Temp/RH Data Logger (MX1101) Manual If the logger does not appear or if it is having trouble Mark the logger as a favorite. You can then filter connecting, follow these tips: the list of devices to show only loggers marked as favorites.
  • Page 5: Setting Up Alarms

    HOBO MX Temp/RH Data Logger (MX1101) Manual 6. Tap Pause Options, then select Pause On Button Push to Setting up Alarms specify that you can pause the logger by pressing its button You can set an alarm to trip on the logger when a sensor for 3 seconds.
  • Page 6 HOBO MX Temp/RH Data Logger (MX1101) Manual when the logger’s LCD screen refreshes every 15 1. Tap Devices. Press the Start/Stop button on the logger to seconds. wake it up, if necessary. • The actual values for the high and low alarm limits are set 2.
  • Page 7: Setting A Password

    HOBO MX Temp/RH Data Logger (MX1101) Manual selected. Statistics are calculated at a sampling rate you specify usage is similar to what it would be if you had selected this with the results for the sampling period recorded at each rate for the normal logging interval.
  • Page 8: Battery Information

    HOBO MX Temp/RH Data Logger (MX1101) Manual To plot events, tap HOBO Files and select a file to open. the logger operating range. Expected battery life varies based on the ambient temperature where the logger is deployed, the logging or sampling interval, frequency of offloading and (if applicable) and tap .
  • Page 9 To comply with FCC and Industry Canada RF radiation exposure limits for general population, the HOBO MX1101 loggers must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
