HOBO® MX Gateway (MXGTW1) Manual

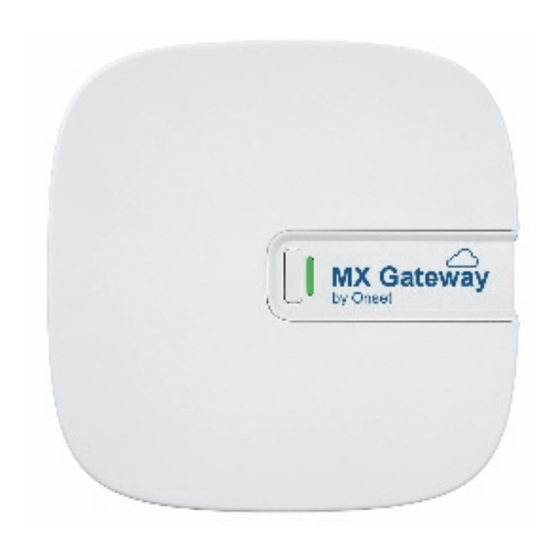

HOBO MX Gateway
MXGTW1
Included Items:
 Mounting kit
 AC adapter
Required Items:
 HOBOlink account
 Mobile device with Bluetooth
 HOBOmobile app for devices
with iOS
 HOBOconnect app for
devices with Android™
 MX1101, MX1102, MX1104,
MX1105, MX2001, MX2200,
MX2300, or MX2501 loggers
Setting up the Gateway
Follow these steps to set up the gateway for the first time.
1. Download the app.
If you are using an iPhone® or iPad®: Download
HOBOmobile from the App Store®.
If you are using an Android phone or tablet: Download
HOBOconnect from Google Play™.
2. Power up the gateway.
a. Insert the appropriate plug for your region into the AC
adapter. Connect the AC adapter to the gateway and
plug it in.
b. Wait for the gateway to boot up and appear in the app.
While the gateway boots up, the LED on the gateway
will start as solid yellow and then switch to blinking
yellow. It will take 4 to 5 minutes before the gateway
appears in the app.
3. Create a HOBOlink account. Go to www.hobolink.com and
create an account if you don't already have one. You will
receive an email to activate the new account.
23470‐F
The HOBO MX Gateway provides near real‐time data monitoring for most MX series loggers by
automatically transmitting logged data to the HOBOlink® website. You can easily set up the
gateway with the HOBOmobile® or HOBOconnect® app on your phone or tablet. Once
configured, the gateway uses Bluetooth® Low Energy (BLE) to regularly check for
measurements from up to 100 loggers within range. Logger measurements are then uploaded
from the gateway via Ethernet or WiFi to HOBOlink, where you can set up automatic email or
text alarm notifications, display your data in a dashboard, and export data for further analysis.
Note: All MX loggers except the MX100 series are supported by the gateway. Contact Onset
Technical Support for questions on MX100 logger compatibility with the gateway.
Specifications
Transmission Range Approximately 30.5 m (100 ft) line‐of‐sight
Wireless Data Standard Bluetooth 5.0 (BLE)
Connectivity WiFi 802.11a/b/g/n 2.4/5 GHz or 10/100 Ethernet
Power Source AC adapter or PoE
Dimensions 12.4 x 12.4 x 2.87 cm (4.88 x 4.88 x 1.13 inches)
Weight 137 g (4.83 oz)
The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
Plug in AC
adapter here
4. Set up the gateway with the app.
HOBOconnect instructions
a. Tap the Settings icon.
b. If your HOBOlink account is not already connected to
HOBOconnect, tap Connect Account. Enter your
HOBOlink username and password and tap Connect.
c. Make sure the Upload Data toggle is enabled.
d. Plug in the Ethernet cable if you device is using
Ethernet.
e. In HOBOconnect, tap Devices and find the gateway by
searching or scrolling through the tiles. If the gateway
does not appear, make sure it is completely powered up
as described in step 2 and within range of your phone or
tablet.
f. Tap the gateway in the app to connect to it.
g. Once connected, tap
to configure the gateway.
h. Enter a name for the gateway. The gateway serial
number will be used if no name is entered.
i. If the Ethernet connection is using DHCP (dynamic IP
addresses), then skip to step g.
j. To set up Ethernet with static IP addresses, tap Ethernet
Configuration, tap DHCP toggle to disable DHCP. Fill in
at the bottom of the screen
