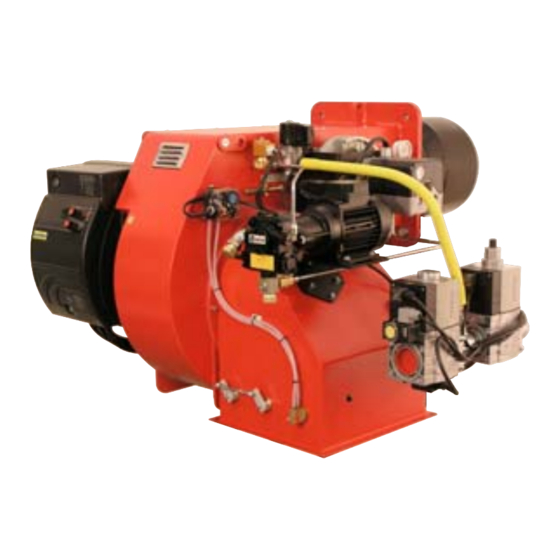

Ecoflam Multicalor 500.1 PR Manual

Gas/light-oil dual burners
Hide thumbs Also See for Multicalor 500.1 PR:
Table of Contents

Advertisement

Quick Links

Download this manual
GAS / LIGHT-OIL DUAL BURNERS
techniques for energy saving
MODEL
G A S T E C
Multicalor 500.1 PR
Multicalor 600.1 PR
Light oil / Natural Gas 500 mbar
LB1291
01.10.2003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multicalor 500.1 PR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ecoflam Multicalor 500.1 PR

Summary of Contents for Ecoflam Multicalor 500.1 PR

  • Page 1 GAS / LIGHT-OIL DUAL BURNERS techniques for energy saving MODEL G A S T E C Multicalor 500.1 PR Multicalor 600.1 PR Light oil / Natural Gas 500 mbar LB1291 01.10.2003...

  • Page 2: Working Fields

    LB1291 MULTICALOR 500.1 PR - 600.1 PR tecniche per il risparmio energetico techniques for energy saving Models MULTICALOR 500.1 PR MULTICALOR 600.1 PR Thermal power max. 5000 5800 kcal/h 4.310.000 5.000.000 Thermal power min. 1200 1500 kcal/h 1.034.500 1.290.000 Max. capacity (Natural Gas) Min.

  • Page 3: Gas Train Installation

    LB1291 MULTICALOR 500.1 PR - 600.1 PR techniques for energy saving GAS TRAIN INSTALLATION 4 Pilot gas valve 1 - Main gas pipe 5 - Gas governor and filter (Optional) 2 - Ball valve 6 - Min. gas pressure switch...
  • Page 4 ADJUSTMENT OF GAS SOLENOID VALVES The ignition flow rate is carefully adjusted. during test phase to 1/3 of the maximum flow rate (according to specifications). Operations for eventual further adjustment must be carried out by skilled personnel authorized by ECOFLAM. DUNGS DMV-DLE To adjustment gas output, loosen the screw R and turn the knob P as required.
  • Page 5 LB1291 MULTICALOR 500.1 PR - 600.1 PR techniques for energy saving DUNGS SV-DLE To adjustment gas output, loosen the screw R and turn the knob P as required. To reduce output, turn knob clockwise, to increase it turn knob counterclockwise. Tighten the screw R. For fast opening adjustment, remove the cap T and insert it in the pin Q with its groove up.

  • Page 6: Air Adjustment

    LB1291 MULTICALOR 500.1 PR - 600.1 PR tecniche per il risparmio energetico techniques for energy saving ADJUSTMENT OF GAS MINIMUM PRESSURE SWITCH Gas pressure Unscrew off and remove cover M. - Set regulator N to a value equal to 60% of gas nominal feed switch pressure (i.e.

  • Page 7: Adjusting The Intermediate Burner Capacity

    LB1291 MULTICALOR 500.1 PR - 600.1 PR techniques for energy saving ADJUSTING THE MAXIMUM AIR FLOW RATE Adjusting the maximum air flow rate (see figure, detail 2). Loosen the nut holding the air damper transmission rod; The correct air flow as established by analyzing the combustion process.

  • Page 8: Hydraulic Circuit

    LB1291 MULTICALOR 500.1 PR - 600.1 PR tecniche per il risparmio energetico techniques for energy saving OPERATION OF BURNER WITH LIGHT-OIL FUEL Once having installed the burner, check the following items: - The burner power feeding and the main line protection fuses 0 - STOP - The correct length of pipes and that the same are sealed.
  • Page 9 LB1291 MULTICALOR 500.1 PR - 600.1 PR techniques for energy saving PRIMING AND ADJUSTMENT OF OIL PUMP SUNTEC TA3C40105 1 - INLET 2 - RETURN 3 - BLEED AND PRESSURE GAUGE PORT 4 - VACUUM GAUGE PORT 5 - PRESSURE ADJUSTMENT...

  • Page 10: Description Of Control Panel

    LB1291 MULTICALOR 500.1 PR - 600.1 PR techniques for energy saving DESCRIPTION OF CONTROL PANEL A - main switch I/0 B - operating lamps (orange=light-oil; green= gas) C - Selector switch: AUTO 0 - STOP Loking of devoices for operating at intermediate outputs...
  • Page 11 LB1291 MULTICALOR 500.1 PR - 600.1 PR techniques for energy saving Check gas governor and gas filter. Check gas pressure through a manometer. Check ionization value (min. 70 µA). THE BURNER DOES NOT SWITCHES TO HIGH FLAME: Manual selector switch in wrong position.
  • Page 12 LB1291 MULTICALOR 500.1 PR - 600.1 PR techniques for energy saving pag.12...
  • Page 13 LB1291 MULTICALOR 500.1 PR - 600.1 PR techniques for energy saving Multicalor 500.1 PR Multicalor 600.1 PR Natural gas 500 mbar N° DESCRIPTION code 1 - AIR PRESSURE SWITCH DUNGS LGW10 A2P Q120 2 - GAS PRESSURE SWITCH MIN. DUNGS GW150 A4...
  • Page 14 LB1291 MULTICALOR 500.1 PR - 600.1 PR techniques for energy saving pag.14...
  • Page 15 LB1291 MULTICALOR 500.1 PR - 600.1 PR techniques for energy saving pag.15...
  • Page 16 ECOFLAM S.p.A. reserves the right to make any adjustments, without prior notice, which it considers necessary or useful La ECOFLAM S.p.A si riserva il diritto di apportare ai prodotti quelle modifiche che riterrà necessarie o to its products, without affecting their main features.

This manual is also suitable for:

Multicalor 600.1 pr
