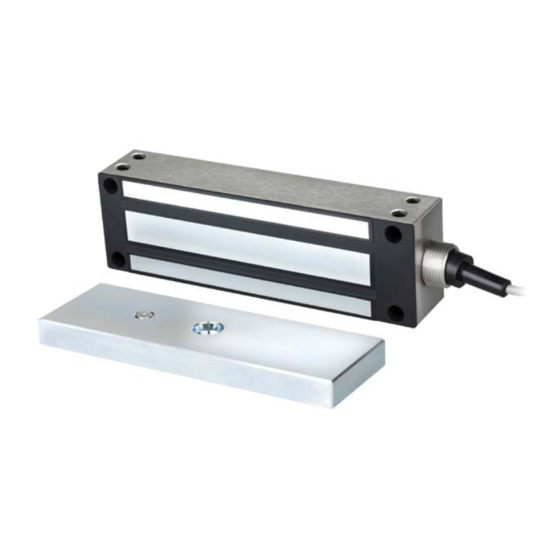

Electromagnetic Gate Locks
• Now with face and surface mounting
• For sliding or swinging gates
• Water resistant and vandal resistant
• Maintenance-free, factory-sealed design
• Dual-threaded conduit fitting
Note: Model numbers that end with "Q" or that have a round green "Q" sticker signify RoHS-compliant products.
with Face or Surface Mounting
Model
E-946FC-600Q
E-946FC-1K2Q
Manual
Holding Force
600-lbs (271kg)
1,200-lbs (544kg)
• Attractive stainless-steel housing
• Dual voltage: 12/24 VDC Operation
• No residual magnetism
• MOV Surge protection
• Complete mounting hardware included
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SECO-LARM E-946FC-600Q
Summary of Contents for SECO-LARM E-946FC-600Q
- Page 1 Electromagnetic Gate Locks with Face or Surface Mounting Manual Model Holding Force E-946FC-600Q 600-lbs (271kg) E-946FC-1K2Q 1,200-lbs (544kg) • Now with face and surface mounting • Attractive stainless-steel housing • For sliding or swinging gates • Dual voltage: 12/24 VDC Operation •...
-
Page 2: Specifications
SECO-LARM Electromagnetic Gate Locks with Face or Surface Mounting Specifications: E-946FC-600Q E-946FC-1K2Q Model Holding force 600-lb (271kg) 1,200-lb (544kg) Operating voltage 12VDC or 24VDC 12VDC 500mA Current draw 24VDC 250mA Operating temperature 14°~131° F (-10°~55° C) 8”x1 ”x1 ” ”x2 ”x1... -
Page 3: Installation Applications
SECO-LARM Electromagnetic Gate Locks with Face or Surface Mounting Overview: E-946FC-600Q Armature screw For face Guide pin mounting* Electromagnet For face mounting* For surface mounting* Steel washer Tamper cap Rubber washer For surface Steel washer Sexnut bolt mounting* *NOTE: Each installation will use either face mounting OR surface mounting. No installation will use both. For more information on which type of mounting method to use, please see page 5, Installation. -
Page 4: Wiring Diagram
SECO-LARM Electromagnetic Gate Locks with Face or Surface Mounting Wiring Diagram: 12VDC 12 VDC White Black Green IMPORTANT: Damage caused by improper 24VDC connection will void warranty. 24 VDC White Black Green Maximum Distance from Power Source to Electromagnetic Lock: For a complete chart, please visit www.seco-larm.com. -
Page 5: Installation
SECO-LARM Electromagnetic Gate Locks with Face or Surface Mounting Installation: 1. Determine type of gate: a. Single-swing gate: Gate swings on one end, and comes to rest on a fixed gate post when closed. In this case, a typical installation has the electromagnet face mounted to the gate post, and the armature plate connected to the free end of the gate with a Z bracket. - Page 6 SECO-LARM Electromagnetic Gate Locks with Face or Surface Mounting Installation, continued 2. Mount the electromagnet. In most cases, the position of the electromagnet will determine the location of the armature plate. Make sure there is space to run the cable.
-
Page 7: Installation, Continued
SECO-LARM Electromagnetic Gate Locks with Face or Surface Mounting Installation, continued 3. Mount the armature plate. Once the electromagnet is mounted, determine the correct position of the armature plate. Use the appropriate L bracket or Z bracket to position Z Bracket the armature plate so that it will lay against the electromagnet when activated. -
Page 8: Troubleshooting
LIMITED LIFETIME WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for the lifetime of the product. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. Under no circumstances will SECO-LARM be responsible for any costs or charges for removal, installation, or reinstallation.
