SECO-LARM CL-210M-U3BQ Manual

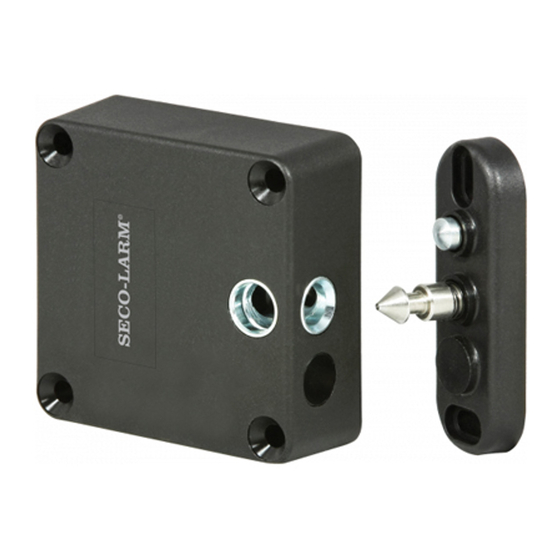

Motorized cabinet lock

Download this manual

Features:

• Electronically secure lockers, cabinets,

cases, and drawers

• Lock status sensor allows for monitoring

whether the lock is engaged

• Door status sensor allows for monitoring

whether the door is closed completely

• Compatible with existing keypads or readers

• Spring feature gently pushes door open

CL-210M-U3BQ

Motorized Cabinet Lock

Manual

• Fail-secure operation

• Various mounting positions

• 12~28 VAC/VDC Operating voltage

• Low current draw:

- 69mA@12/24 VDC (standby)

- 165mA@12/24 VDC (active)

• 220-lb (100kg) Holding force

• Two locking orientations

Need help?

Do you have a question about the CL-210M-U3BQ and is the answer not in the manual?

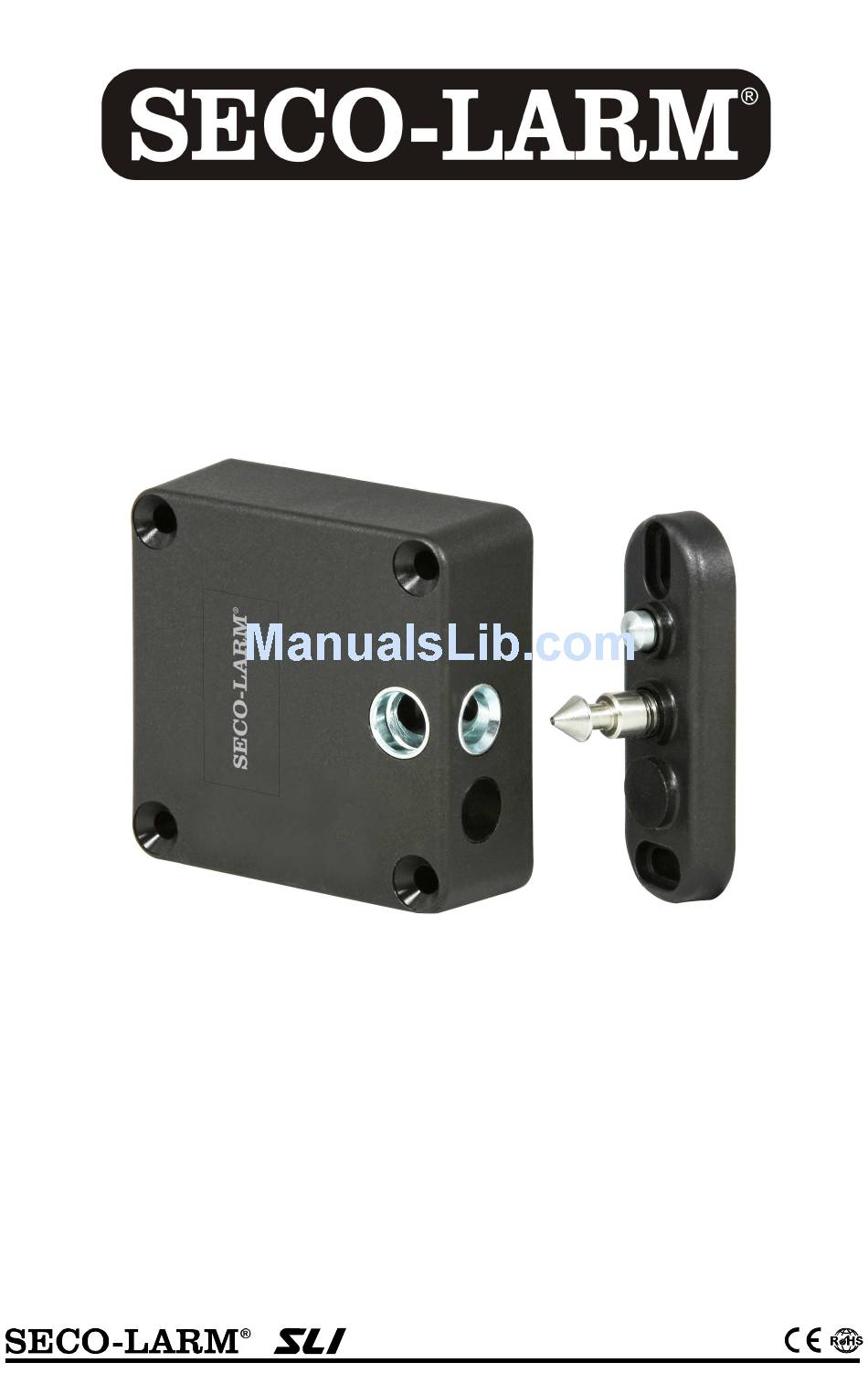

Page 1 CL-210M-U3BQ Motorized Cabinet Lock Manual Features: • Electronically secure lockers, cabinets, • Fail-secure operation cases, and drawers • Various mounting positions • Lock status sensor allows for monitoring • 12~28 VAC/VDC Operating voltage whether the lock is engaged • Low current draw: •...
Page 2 SECO-LARM Motorized Cabinet Lock Introduction: The SECO-LARM Motorized Cabinet Lock provides security for lockers, cabinets, cases, and drawers. The built-in lock and door status sensors and fail-secure operation offer additional security. The Motorized Cabinet Lock's small size and compatibility with existing keypads or readers allow for various installations.
Page 3 SECO-LARM Motorized Cabinet Lock Installation: Find a suitable location for the cabinet lock. Ensure the lock body and rosette do not prevent the drawer/door from opening and closing completely. Set relock time delay. See "Relock Time Delay" below. Wire the cabinet lock according to the wiring diagram below.
Page 4 WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for two (2) years from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if...
