SECO-LARM E-942FC-600SQ Installation Manual

Electromagnetic Gate Lock
with Weldable Bracket
Installation Manual
Model
E-942FC-600SQ
E-946FC-1K2SQ
E-942FC-1K3SQ
The SECO-LARM Electromagnetic Gate Lock with Weldable Bracket combines a strong and
durable gate lock with a weldable bracket for ease of installation and greater security. With variants
of both 1,200-lb (544kg) and 600-lb (272kg) holding force, it is suitable for almost any gate
installation and can be installed horizontally as well as vertically.
 12/24 VDC
 For use with nearly all types of outdoor sliding and swinging electric gates
 Low current draw of 500mA@12VDC, 250mA@24VDC
 Can be welded or bolted directly to gate and mounted horizontally or vertically
 Includes a magnetic lock with brackets for armature and magnet, mounting hardware included
 Zinc-plated brackets for corrosion resistance
 Maintenance-free, factory-sealed design, IP67 Waterproof
 Water- and vandal-resistant stainless-steel with black finish to match most gates
 Fail-safe operation (releases if power is removed)
 Four knockouts on junction box
Mounting Type Holding Force
Face 600-lb (272kg)
Side 1,200-lb (544kg)
Face 1,200-lb (544kg)

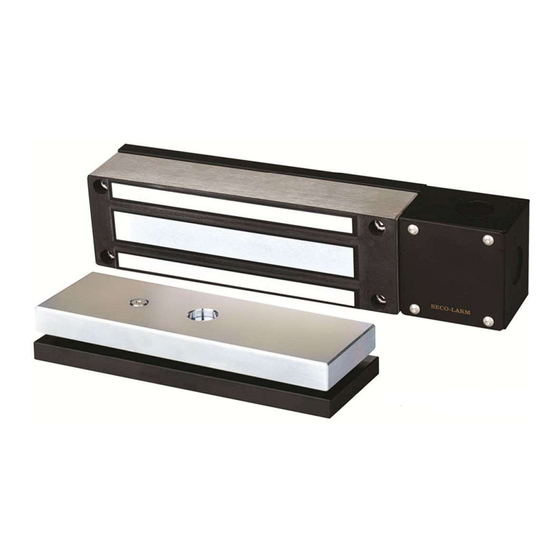

E-942FC-1K3SQ shown
Certifications (Maglock Only)
cUL, UL, CE, RoHS (Maglock E-942FC-600)
cUL, UL, CE, RoHS (Maglock E-946FC-1K2Q)
cUL, UL, CE, RoHS (Maglock E-942FC-1300)
