Aritech 2000 Series Instruction Manual
Addressable loop powered sounder-beacons
Hide thumbs
Also See for 2000 Series:
- Installation manual (36 pages) ,
- Installation sheet (25 pages) ,
- Installation & service instructions (2 pages)
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aritech 2000 Series
Summary of Contents for Aritech 2000 Series

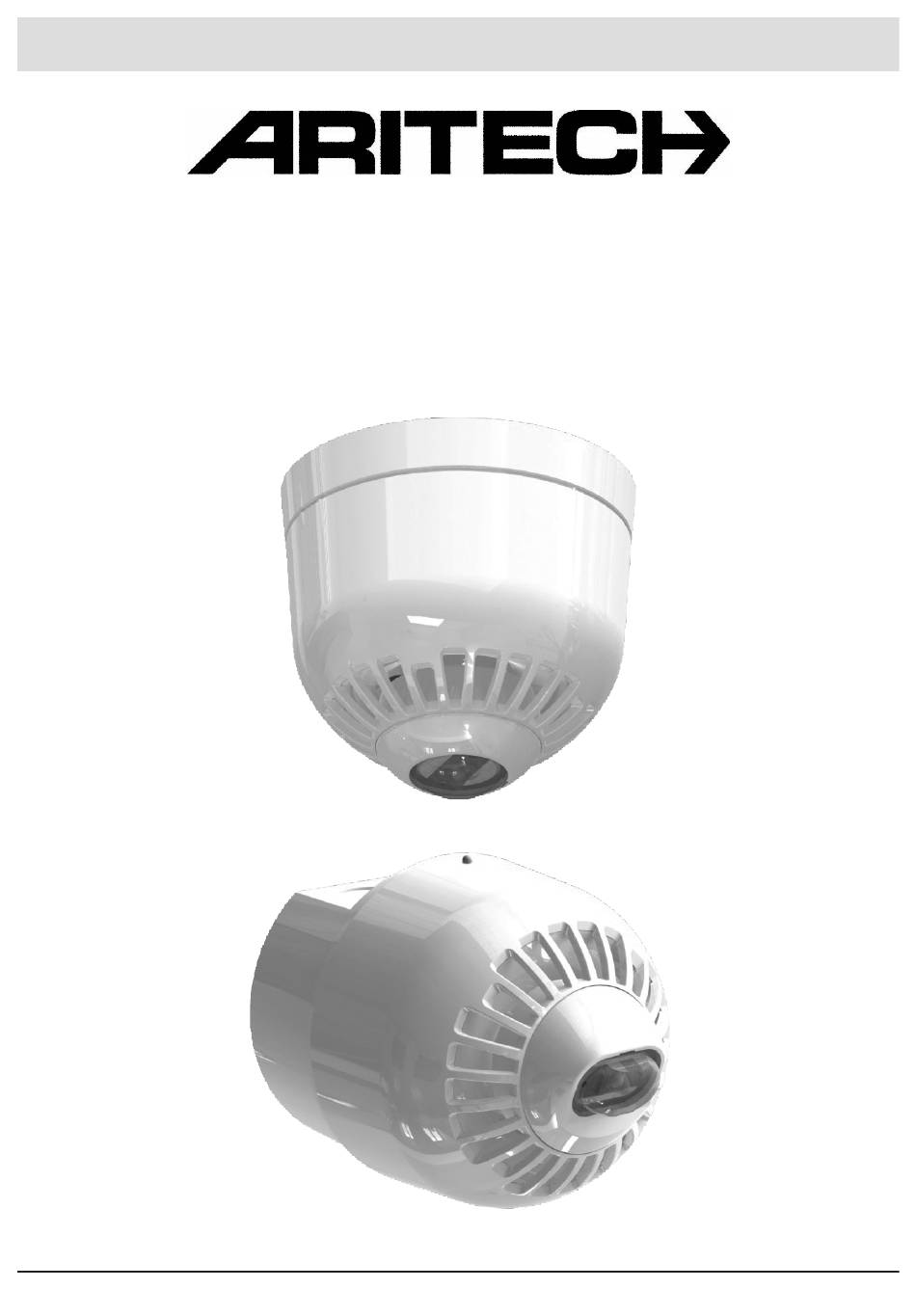

- Page 1 E N IT PL DE ES TR NL FR PT RU DK SE Instruction Manual 2000 Series Addressable Loop Powered Sounder-Beacons MADE IN ENGLAND INS570-3 www.acornfiresecurity.com...
- Page 2 www.acornfiresecurity.com Wall Mount - EN54-23 Coverage White Flash: W-3.1-11.3 Red Flash: W-3-7.49 3.1m 11.3m 7.49m 11.3m 7.49m Shallow Base Cable Entry 4.2 Fixing Holes EN: Ensure the lens of the device is pointing to the floor. FR: Assurez-vous que la lentille est dirigée vers le sol. Deep Base 97.5 M20 Drill out...
- Page 3 www.acornfiresecurity.com Ceiling Mount - EN54-23 Coverage White Flash: C-3-15 Red Flash: C-3-9 Shallow Base Cable Entry 4.2 Fixing Holes Deep Base 97.5 M20 Drill out gland hole for rear cable entry 4.5mm Fixing Holes M20 drill out gland hole for side cable entry www.acornfiresecurity.com...
- Page 4 www.acornfiresecurity.com Fig. 1a Fig. 2 Fig. 1b Fig. Fig. Fig. White Flash Approvals Essential Characteristics EN54-3:2001+A1:2002 A2:2006 Subclause Fire Alarm Device: Sounder Beacon. Reproducibility Pass Type A: For indoor use (Shallow Base) Operational performance Pass Durability Pass Type A: For outdoor use (Deep Base) Temperature Resistance Pass 0832...
-
Page 5: Tone Setting
Tone Setting www.acornfiresecurity.com Alarm Alarm Alarm Max. Tone Type Tone Description /Application Dip Switch dBA@1m 970Hz 2 3 4 5 6 800Hz/970Hz @ 2Hz 1 2 3 4 5 6 800Hz – 970Hz @ 1Hz 1 2 3 4 5 6 970Hz 1s OFF/1s ON 1 2 3 4 5 6 970Hz, 0.5s/ 630Hz, 0.5s... -
Page 6: Address Settings
www.acornfiresecurity.com Address Settings www.acornfiresecurity.com... - Page 7 www.acornfiresecurity.com www.acornfiresecurity.com...
-
Page 8: Troubleshooting
2000 series sounders and beacons are designed for use system wiring is fault free. Earth faults on data loops may in Aritech analogue addressable fire systems running cause communication errors. the 2000 Series protocol. The sounders can be put into Problem Possible Cause different operating modes. -
Page 9: Specifiche Tecniche
Le sirene e i lampeggianti della serie 2000 sono stati di terra sui circuiti dati possono provocare errori di progettati per essere utilizzati nei sistemi antincendio comunicazione. analogici indirizzabili Aritech che operano su protocollo serie 2000. Le sirene possono essere predisposte Problema Possibile causa secondo varie modalità... -
Page 10: Specyfikacja Techniczna
Czujniki i sygnalizatory serii 2000 są przeznaczone Usterki uziemienia w obwodach danych mogą skutkować do użytku w adresowalnych analogowych systemach błędami komunikacji. przeciwpożarowych Aritech, obsługujących protokół serii 2000. Czujniki mogą być ustawiane w różnych Problem Możliwa przyczyna trybach działania. -
Page 11: Fehlerbehebung
Sie einzelne Einheiten auf Fehler Die Sirenen und optischen Melder der 2000er-Serie untersuchen. Erdschlüsse in Datenkreisläufen können wurden für den Einsatz in den analog adressierbaren Kommunikationsfehler verursachen. Aritech-Brandschutzsystemen konzipiert, die mit dem Protokoll der 2000er-Serie arbeiten. Die Sirenen bieten Problem Mögliche Ursache verschiedene Betriebsarten. - Page 12 Los fallos en la puesta a tierra para su uso en sistemas de detección y control de en los bucles de datos pueden provocar errores de incendios direccionables analógicos Aritech con el comunicación. protocolo de la serie 2000. La sondas pueden ajustarse en diferentes modos de funcionamiento.
-
Page 13: Teknik Özellikler
Sorun giderme TR: Kurulum Kılavuzu Cihazlarda hata aramaya başlamadan önce sistemdeki 2000 serisi siren ve ışıldaklar, 2000 Series protokolünü kablolar hata açısından kontrol edilmelidir. Veri çalıştıran analog adreslemeli Aritech yangın alarmı bağlantılarındaki topraklama arızaları iletişim hatalarına sistemlerinde kullanılabilmek üzere tasarlanmıştır. - Page 14 De 2000-Serie sirenes en flitslichten zijn bestemd storing heeft. Aardstoringen op datalussen kunnen voor gebruik in analoge Aritech adresseerbare communicatiefouten veroorzaken. brandbeveiligingssystemen die werken met het 2000- Serie protocol. De sirenes kunnen in verschillende...
-
Page 15: Dépannage
Des défauts de masse dans les boucles avec les systèmes anti-incendie analogiques adressables de données peuvent occasionner des erreurs de Aritech utilisant le protocole Série 2000. Plusieurs modes communication. fonctionnels sont disponibles pour les sirènes. ATTENTION : Ce produit doit être installé par un Problème... -
Page 16: Especificação Técnica
Sirenes e strobes da série 2000 estão desenhados para Falhas de terra em laços de dados podem causar erros serem utilizados em detectores de incêndio analógicos de comunicação. endereçáveis Aritech correndo o protocolo Série 2000. As sirenes podem ser colocadas em diferentes modos Problema Causa Possível de operação. -
Page 17: Ru: Руководство По Установке
Звуковые и световые сигнализаторы серии 2000 землю в сетях передачи данных может привести к ошибкам предназначены для использования в системах адресно- связи. аналоговой пожарной сигнализации Aritech, работающих на основе протокола серии 2000. Звуковые сигнализаторы Проблема Возможная причина могут работать в различных режимах. - Page 18 www.acornfiresecurity.com Fejlfinding DK: Installationsvejledning Før du undersøger de enkelte enheder for fejl, skal Lydalarmerne og blinkene i 2000-serien er designet til du kontrollere, at systemets ledningsføring er brug i Aritechs analoge brandsikringssystemer, som fejlfri. Jordingsfejl på dataløkker kan forårsage kører iht. protokollen i 2000-serien. Lydalarmerne kan kommunikationsfejl.
- Page 19 Felsökning SE: Installationshandbok Innan du felsöker enskilda enheter, kontrollera att Ljud- och ljuslarmen i 2000-serien är konstruerade systemets kablage fungerar. Jordfel på dataslingor kan för användning i analoga adresserbara Aritech- orsaka kommunikationsfel. brandsystem som använder 2000-seriens protokoll. Problem Möjlig orsak Ljudlarmen kan sättas i olika driftlägen.
