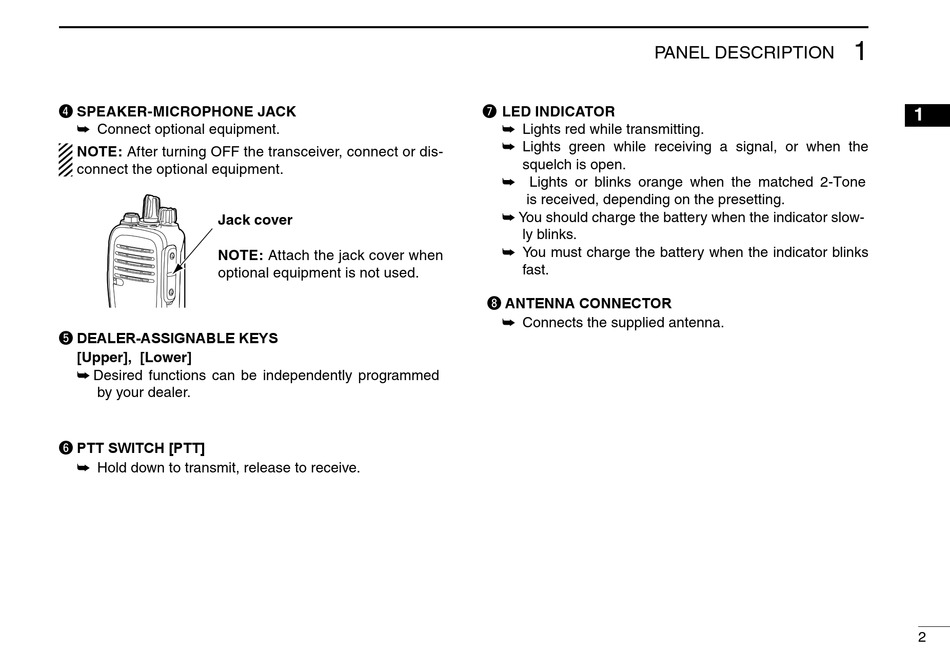

r SPEAKER-MICROPHONE JACK
Connect optional equipment.
➥
NOTE: After turning OFF the transceiver, connect or dis-
connect the optional equipment.
Jack cover
NOTE: Attach the jack cover when
optional equipment is not used.
t DEALER-ASSIGNABLE KEYS
[Upper], [Lower]
➥ Desired functions can be independently programmed
by your dealer.
y PTT SWITCH [PTT]
Hold down to transmit, release to receive.
➥
PANEL DESCRIPTION
LED INDICATOR
u
Lights red while transmitting.
➥
Lights green while receiving a signal, or when the
➥
squelch is open.
➥ Lights or blinks orange when the matched 2-Tone
is received, depending on the presetting.
➥ You should charge the battery when the indicator slow-
ly blinks.
You must charge the battery when the indicator blinks
➥
fast.
i ANTENNA CONNECTOR
Connects the supplied antenna.
➥
