2.3

Installing Your Robot

The Techman robot arm cannot stand independently after being removed from the carton. Therefore,
prepare the mounting base with the corresponding holes as described in Subsection 4.2.1.2 "Robot Arm
Mounting" of Volume 1 "I. Hardware Setup Instructions" in advance. Then follow these instructions to install
the robot.
At the installation site, at least two people should simultaneously perform installation of the robot,
otherwise you risk robot arm damage or personal injury. Do not install the robot alone.
Warning

2.3.1 Remove the Control Box

After checking the contents, remove the contents in order and perform installation.
Control box carton:
- Remove the Calibration Plate
- Remove the power cable of the control box
- Remove the control box
- Connect the power cable to the control box
- Place the control box near the robot base
At this stage, do not connect the power cable of the control box to any electrical outlet, or it may
cause equipment damage.
Note

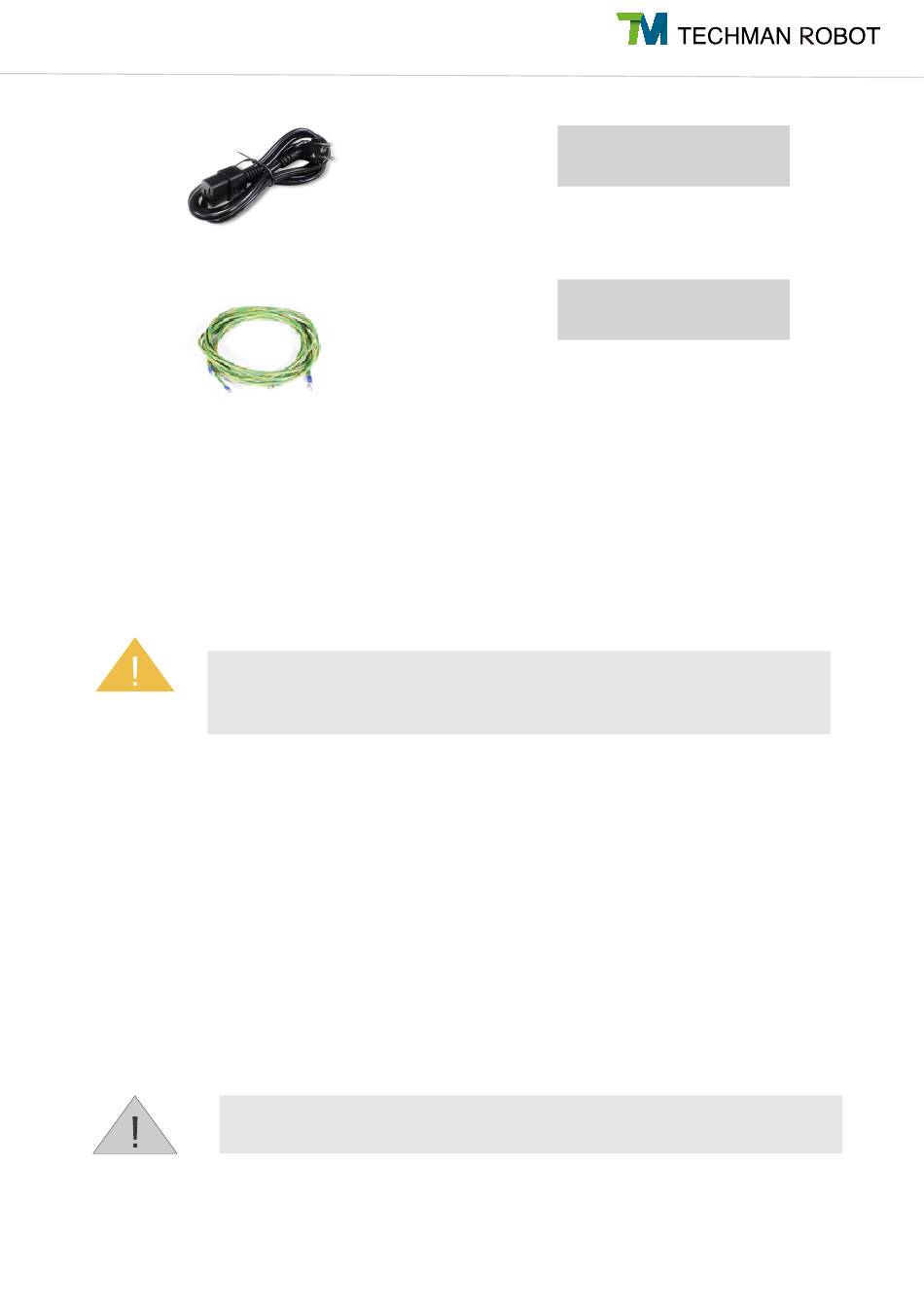

Power cable of the control box
(1 cable)
Ground Wire
(1 pack)
*After S/N AC174901, ground wire
would be provided along the delivery.
