A
PPLICATION GUIDELINES

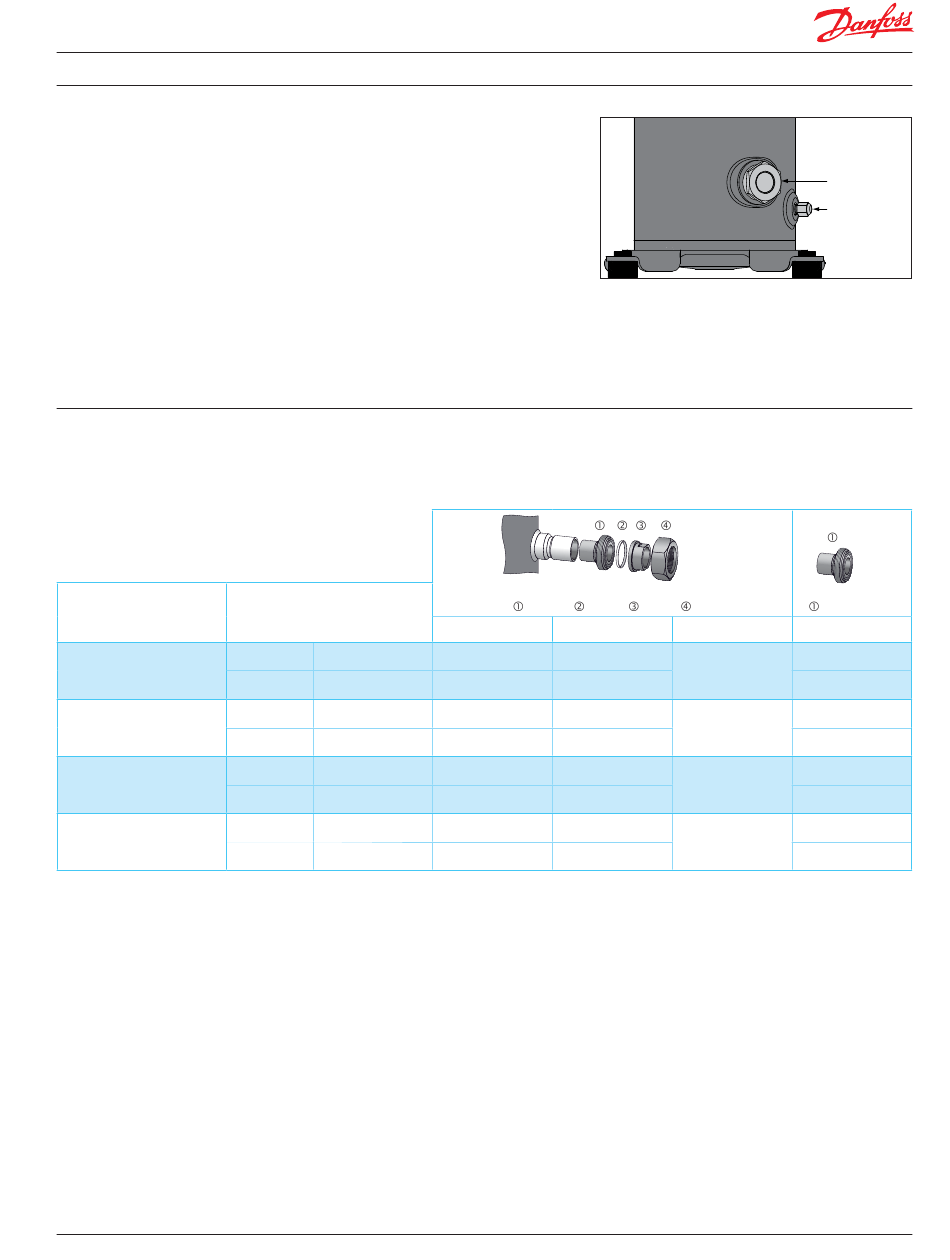

Oil sight glass

Schrader

Suction and discharge
connections
Compressor models
MLZ/MLM 015-019-021-026
MLZ/MLM 030-038-045
MLZ/MLM 048
MLZ/MLM 058-066-076
D
IMENSIONS
MLZ / MLM scroll compressors come equipped
with a threaded oil sight glass with 1"1/8 - 18 UNF
connection. It can be used for a visual check of the
oil amount and condition or it may be replaced by
an accessory oil management device. The oil level
must be visible in the sight glass during opera-
tion.
The oil fill and drain connection and gauge port
is a 1/4" male flare connector incorporating a
schrader valve.
MLZ / MLM scroll compressors are factory deliv-
ered with brazed connections only. Dedicated
rotolock adaptors and adaptor sets are available
as accessory.
Brazed connection size
Suction 3/4"
Discharge 1/2"
Suction 7/8"
Discharge 1/2"
Suction 7/8"
Discharge 3/4"
Suction 1-1/8"
Discharge 7/8"
FRCC.PC.016.A1.22
Rotolock adaptor set
( adaptor, gasket, sleeve,
Rotolock Solder sleeve ODF
1-1/4" 3/4"
1" 1/2"
1-1/4" 7/8"
1" 1/2"
1-1/4" 7/8"
1-1/4" 3/4"
1-3/4" 1-1/8"
1-1/4" 7/8"
Oil sight glass
Schrader valve
and cap
Rotolock adaptor
nut) ( adaptor only)
Code Number Code Number
120Z0366
120Z0126
120Z0365
120Z0367
120Z0127
120Z0365
120Z0367
120Z0128
120Z0366
120Z0364
120Z0129
120Z0367
