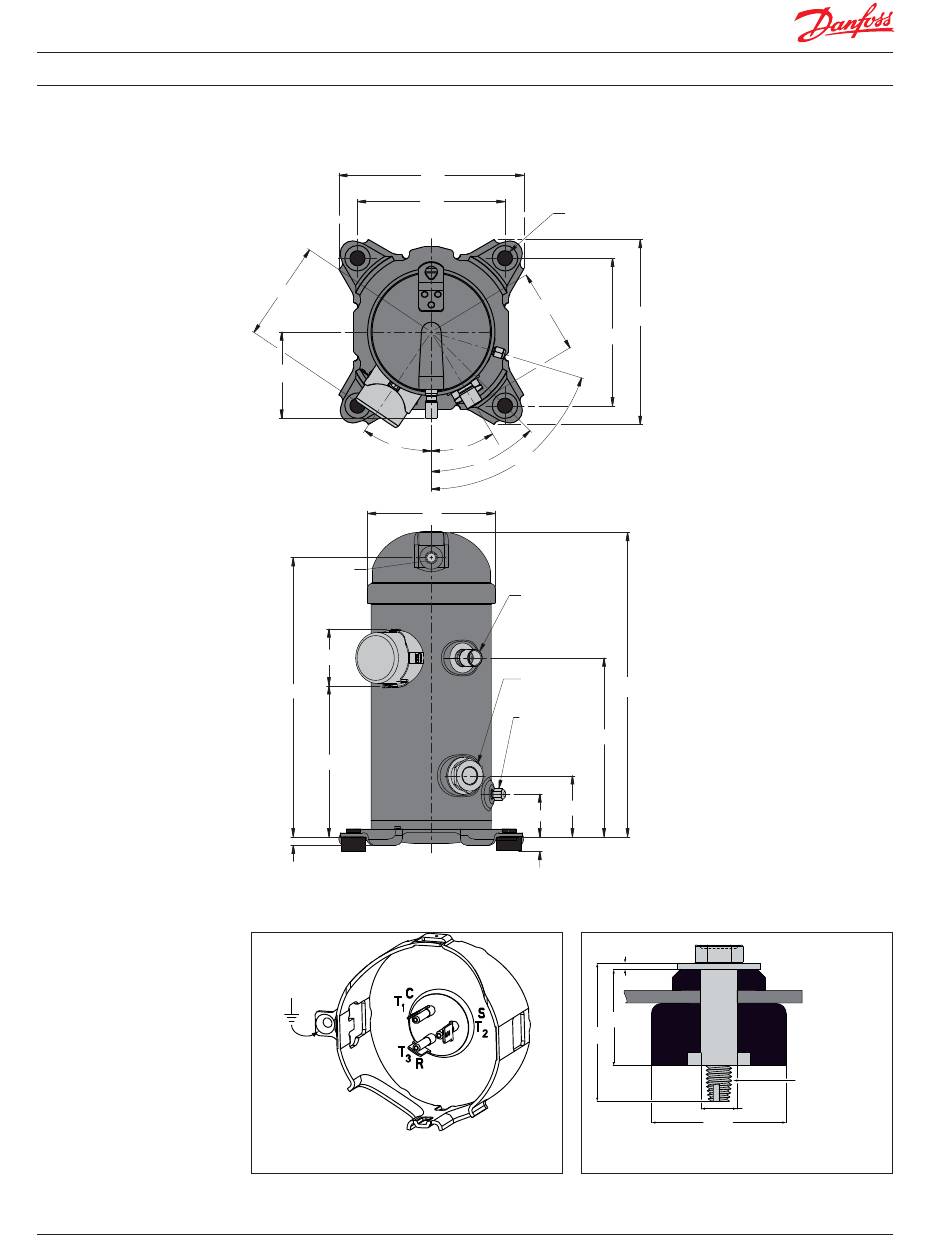

MLZ/MLM015-019-021-026

10
D
IMENSIONS
9.40
7.50
5.06
4.38
34°
6.45
Discharge
port1/2"
ODF
2.90
14.19
7.67
0.43
Terminal box
Quick connect spade terminals
P terminal box type
FRCC.PC.016.A1.22
4 x Ø 0.75
4.32
9.40
7.50
31°
73°
45°
Suction port 3/4" ODF
Oil sight glass
15.48
Schrader valve
and cap
9.09
3.09
2.15
0.74
Mounting grommet
0.06
1.16
1.61
Recommended torque for mounting bolts:
100 lbf.in (±10 lbf.in)
Refer to page 36 for overview of shipped mounting accessories
All dimensions in Inch
5/16" - 18 UNC
self tapping
Ø 0.43
Ø 1.61
