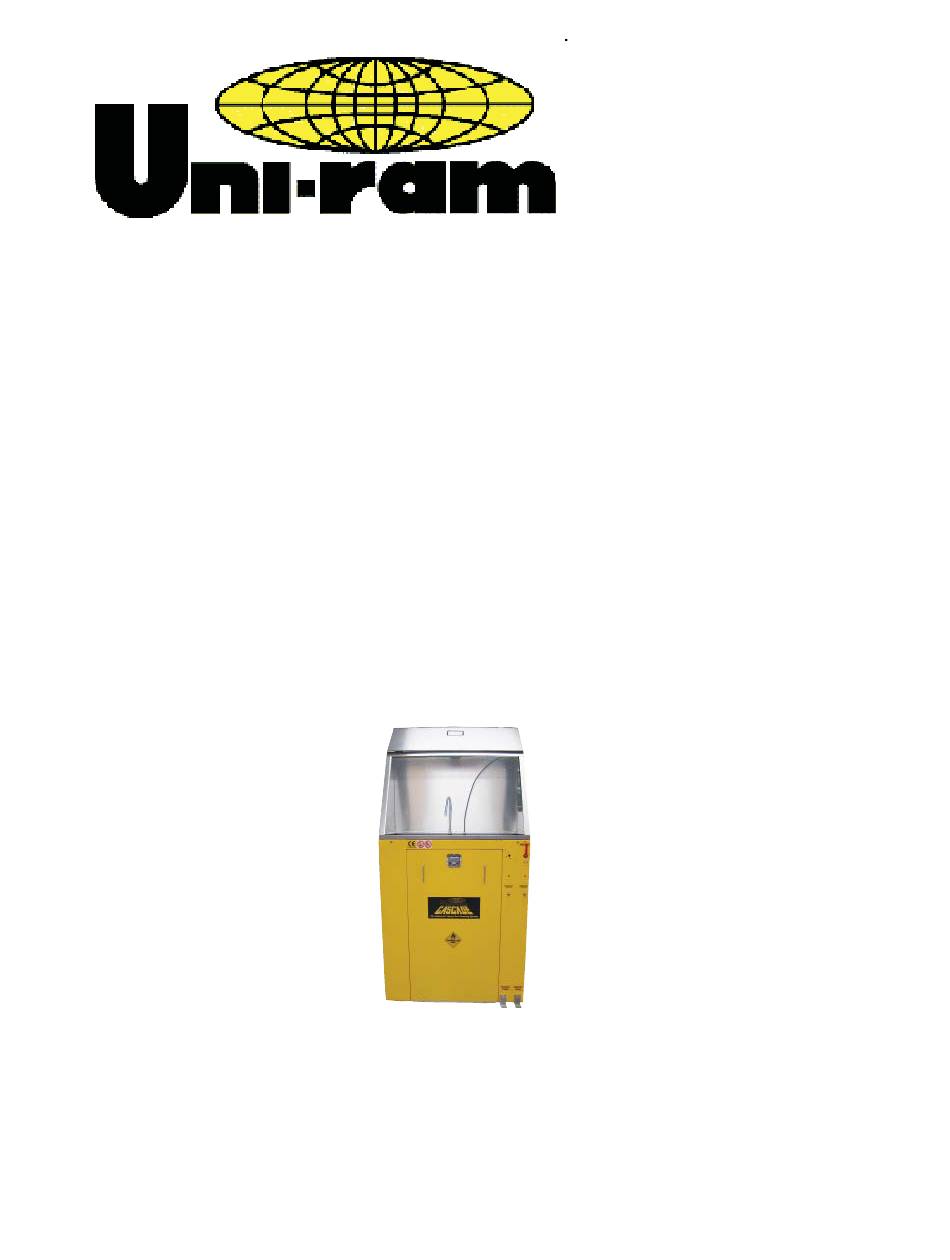

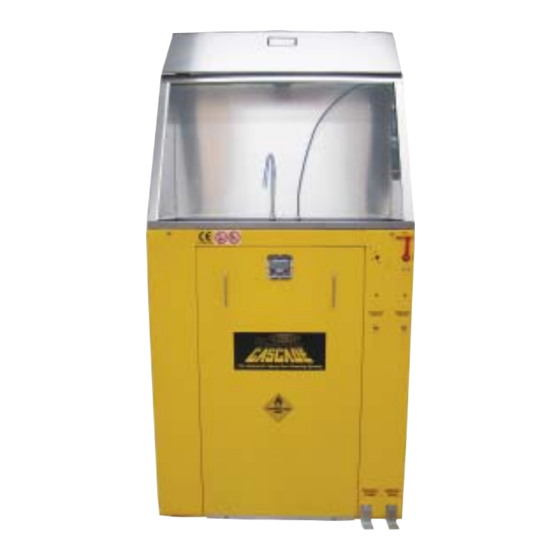

- Page 1 USER MANUAL UG7500NG UG7500NGH MANUAL CLEANING WORK STATION UG7500NG UNI-RAM CORPORATION • ONTARIO • CANADA REV 2014-10...
-
Page 2: Delivery Inspection
REVISED 2013-01 INTRODUCTION Uni-ram holds many patents on designs used in its innovative products. Every machine is tested for compliance with Quality Assurance standards. Follow the directions in this manual under Setup, Operation and Maintenance in order to operate this machine safely and effectively. Not following these instruction can lead to malfunction or damage to the machine. -
Page 3: Hose Cleaning
MANUAL - UG7500NG WORK STATION REVISED 2013-01 OPERATION FOR UG7500NG • To activate the Fume Vent during use, turn the lever labelled "Air Vent" to the open (vertical) position. • To clean with the brush, using wash liquid, step on the pedal labelled "Manual Wash". To control the flow of solvent out of the Flow-through Brush, turn the flow control valve for the Brush. - Page 4 MANUAL - UG7500NG SERIES WORK STATION REVISED 2013-01 FLOW DIAGRAM FOR THE UG7500NG Shows fl ow of compressed air and solvent.
- Page 5 MANUAL - UG7500NG WORK STATION REVISED 2013-01 Flow Diagram for UG7500NGH Shows fl ow of compressed air and solvent.
- Page 6 MANUAL - UG7500NG SERIES WORK STATION REVISED 2013-01 TROUBLESHOOTING SYMPTOM REASON CORRECTIVE ACTION WASH LIQUID DOES Drain valve closed Open drain valve (put in verticle position), if not NOT FLOW AND PUMP already open Check wash liquid level. Add liquid MAKES A PUMPING if less than 1/2 full.
- Page 7 MANUAL - UG7500NG WORK STATION REVISED 2013-01 TROUBLESHOOTING PROCEDURES PROCEDURE 1 Blocked Fluid Passage In Diaphagm Pump If the pump sounds like it is working but liquid does not flow, clear the fluid passage as follows: • Remove suction tube from the pail and blow air at 85 PSI into the INLET Liquid Hose (see diagram).
- Page 8 "Conditions of Warranty" as consumables are not covered. Uni-ram reserves the right to direct the customer to ship the unit collect to the Uni-ram factory or to an approved Service Center for repair using the Uni-ram Return Goods Procedure or to repair the unit on- site.
