Exmark NAVIGATOR Setup Instructions page 4

1. Run the machine for approximately 15 minutes to
allow any extra air to purge out of the hydraulic
system.
2. Wait until the unit cools before checking the
hydraulic oil.
3. Tilt hopper up.
4. Remove the hydraulic reservoir cap.
5. Wipe the dipstick clean and re-insert the cap back
into the hydro. Lightly tighten the cap.
6. Check hydraulic reservoir and if necessary fill the
reservoir to the appropriate level with Exmark
Premium Hydro Oil.
7. Remove the cap again and check the level of the oil

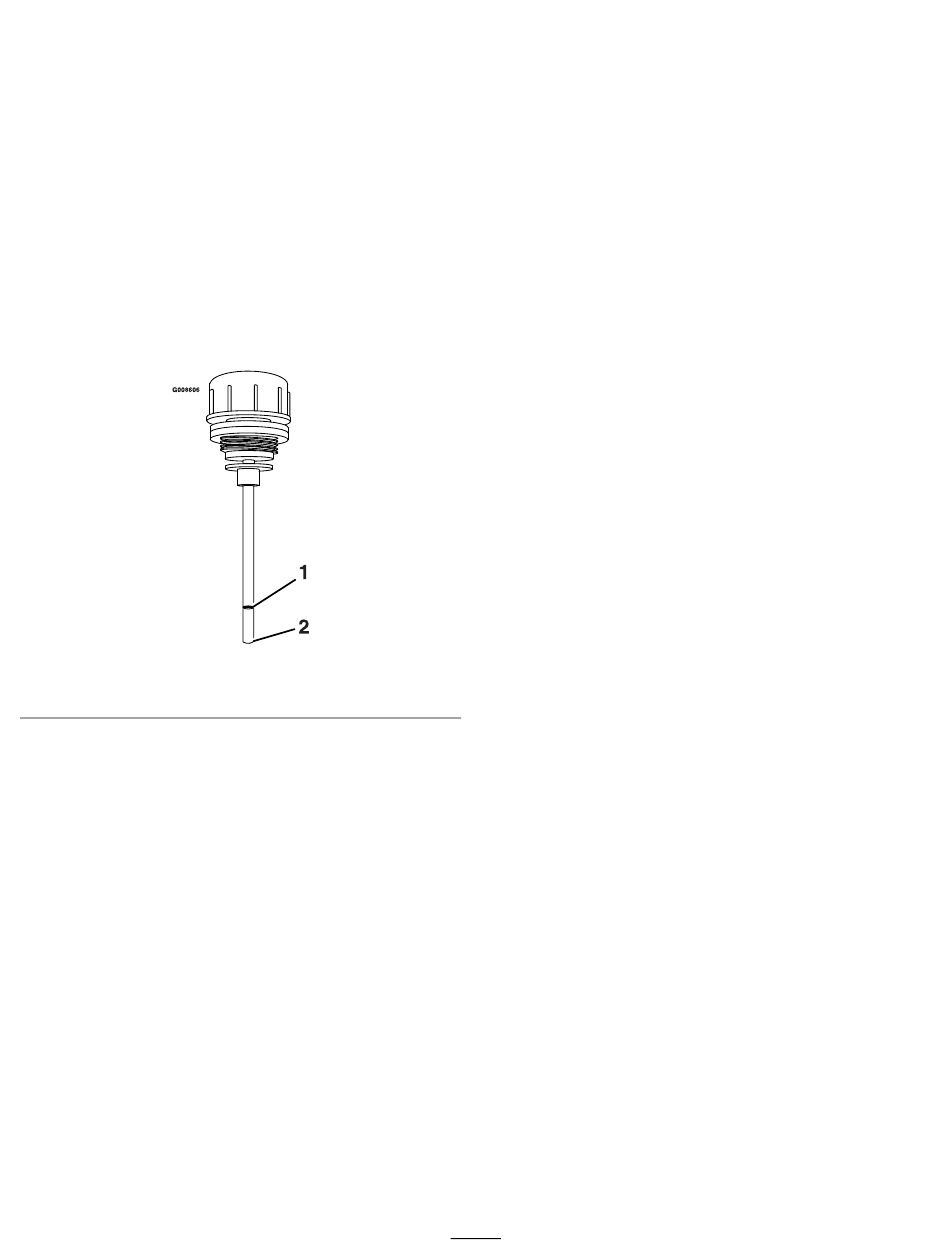

on the dipstick. See Figure 3 for oil levels.
1. Full
Note: The oil level on the dipstick will be incorrect
if the oil is checked when the unit is hot.
8. If the dipstick oil level is at the "add" mark, add
Exmark Premium Hydro Oil. Do Not overfill.
9. Replace hydraulic reservoir cap and tighten until
snug. Do Not overtighten.
Servicing the Engine
The engine is shipped with oil; check oil level and if
necessary fill to the appropriate level. Exmark 4-Cycle
Premium Engine Oil is recommended; refer to the
Engine Owner's manual for an appropriate API rating
and viscosity.
Filling Out the Product
Registration
Fill out the online warranty registration form and place
keys into literature pack.
Figure 3
2. Add
4
