Please be sure to read this manual before using the product
SAFETY NOTES
INTRODUCTION
SPECIFICATIONS
UTILIZATION PROCEDURES
1. How to install / remove a cutting tool
2. Initial rotation of the air turbine
3. Spindle speed adjustment
4. Concerning the use of coolants
Operation manual
RBX5 ・RBX5C
RBX7 ・RBX7C
● INDEX ●
P 1
5. Air nozzles adjustment
P 2
6. Pull-stud bolts installation
P 3
INSTALLATION
1. Installation of the side through type
P 3
2. Installation of the center through type
P 6
3. Installation of the manual type
P 6
4. Concerning the air supply
P 7
OTHER
P 8
P 8
P 9
P15
P16
P17
P19
Advertisement
Related Manuals for BIG RBX5
Summary of Contents for BIG RBX5

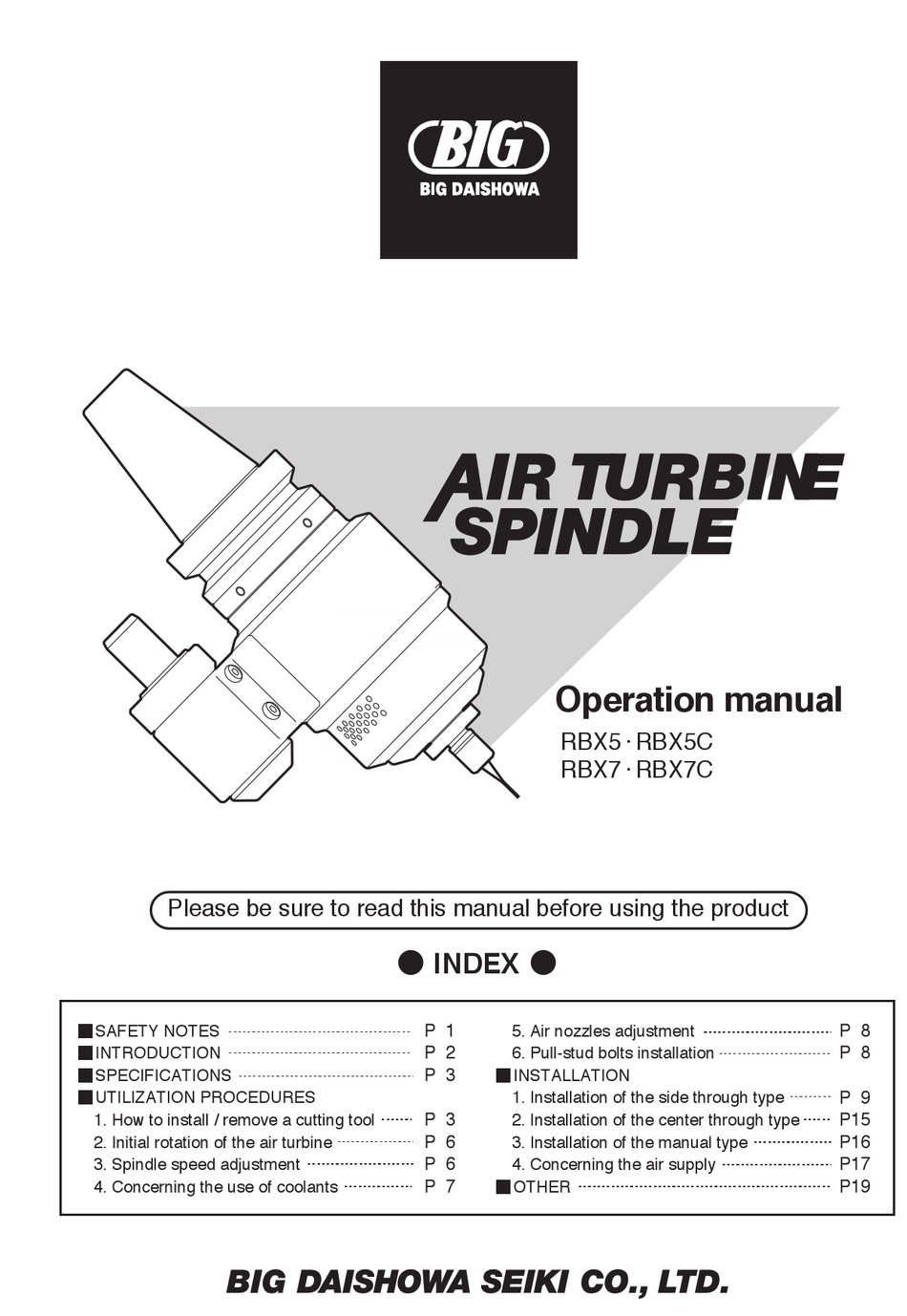

- Page 1 Operation manual RBX5 ・RBX5C RBX7 ・RBX7C Please be sure to read this manual before using the product ● INDEX ● 5. Air nozzles adjustment SAFETY NOTES 6. Pull-stud bolts installation INTRODUCTION SPECIFICATIONS INSTALLATION 1. Installation of the side through type UTILIZATION PROCEDURES 1.
- Page 2 Thank you for your purchase of AIR TURBINE SPINDLE. Please be sure to read this manual before using the product and also keep it in a location where all the operators may consult it in case of necessity. SAFETY NOTES The following safety notes are arranged in order to use correctly our product and to protect the operator and other people from possible injuries and damages.
-
Page 3: Table Of Contents
INTRODUCTION In order to be able to use the Air Turbine, it is necessary to install the machine tool, air supply, etc. Please consult the below INSTALLATION and conduct the installation correctly. Caution SPECIFICATIONS About the specifications Specifications INSTALLATION About the installation on the machine tool and the air supply Installation of Installation of... -
Page 4: How To Install / Remove A Cutting Tool
Warning The Air Turbine Spindle rotates at very high speed. In case of using cutting tools with a big unbalance or tools with small diameter and long overhang, due to the centrifugal force, the cutting tool may break creating an extremely dangerous situation. - Page 5 UTILIZATION PROCEDURES [How to install a cutting tool] Insert the cutting tool in the collet – nut and tight it lightly with your hands. Reduce the overhang of the cutting tool as much as possible. (It greatly influences the T.I.R. and Rigidity.) Let project a little bit both side-lock screws of the X-Wrench, shift the handle on the “LOCK”...
- Page 6 UTILIZATION PROCEDURES Insert the MEGA Wrench on the nut with the “LOCK” seal X-Wrench MEGA Wrench facing up and execute the tightening process with both hands. (XW27) (MGR12) (Recommended tightening torque: 3N･m) Caution Be careful to not damage the cutting tool when inserting the wrench.
-
Page 7: Initial Rotation Of The Air Turbine P6
(min for reaching the Start the process according to the time indicated target speed RBX5 / RBX5C RBX7 / RBX7C on the table. (The table indicates the time 40,000 60,000 30 sec. -
Page 8: Concerning The Use Of Coolants P7
UTILIZATION PROCEDURES Concerning the use of coolants The Air Turbine Spindle, by using air purge for moving the turbine, is built to prevent coolants and oil mists from invading the internal parts of the holder. However, if the coolant is applied directly on the spindle body, it may invade its internal parts. -
Page 9: Air Nozzles Adjustment P8
Air nozzles adjustment The direction of the air nozzles can be set in 4 directions at 90˚ each. If, due to the emitted air, the application of the coolant is inadequate, please follow the below procedures to adjust the direction of the air nozzles. -
Page 10: Installation Of
Side through type Indexing ring BBT shank Gauge line Shank Size Type øD BBT30 RBX7 RBX7 BBT40 RBX5 RBX7 BBT50 Locating collar RBX5 Locating pin Indexing ring BCV, BDV shank Gauge line Shank Size Type øD... - Page 11 Locating block of the machine spindle The locating block is necessary for the air supply. Since the measures and the shape of the locating block depend on the model of the machining center, control, by checking the operation manual, drawing and materials of the machine that the block is actually suitable for the machine’s spindle. 19.6±0.02 10˚...
- Page 12 INSTALLATION ( Side through type ) Settings check Check that the setting measures of the “Inspection sheet” included with the Air Turbine Spindle match the values of the machine’s spindle nose. If the pitch S is different Please return the product to us since the modifications cannot be done by the customer.
- Page 13 How to adjust the setting length H It is not possible to adjust the #30 type How to remove the locating pin Keeping pushed the locating pin (to release the lock mechanism), manually rotate the taper until the tip of the locating collar is located in the large notch of the indexing ring.
- Page 14 INSTALLATION ( Side through type ) How to adjust the setting angle #40, #50 types Side lock removal Loosen the 4 lock bolts of the indexing ring. (Refer to the figure on the right) Setting angle adjustment + 30゜ -30゜ -60゜...
- Page 15 Setting angle adjustment Check that indexing ring rotates around circumference. Adjust the scale of the indexing ring to the setting angle used on your machine by matching exactly the line marker on the main body. Scale (Refer to the figure on the right) Indexing ring line marker Tightening the lock bolts...
- Page 16 INSTALLATION ( Center through type, Manual type ) Installation of the center through type For safety reasons, be sure to check the following notes before the installation on the machining center. Caution Do not use it on machines that have previously used coolants, oil mists, etc. (Foreign bodies invading the holder may reduce its lifespan or cause breakages) Caution In case of using BBT, BCV and BDV shanks, please use pull-stud bolts provided with holes...
-
Page 17: Installation Of The Manual Type
Installation of the manual type Warning Be sure to stop the rotation. When using the Air Turbine Spindle, it is not necessary to fix it using an anti-rotation bar, however, if the machine’s spindle is rotated by mistake, this may twist the air tube causing severe accidents. - Page 18 INSTALLATION Concerning the air supply Since the Air Turbine Spindle uses compressed air as driving source, if an air rich with moisture and foreign bodies is used, the bearings may rust or get stuck reducing the tool life. In order to use pure air, the following device is recommended.
- Page 19 Element replacement In case of not being able to drain a great volume due to low pressure, the element of the (micro) mist separator is stuck. Replace the element assembly (sold apart) following the below procedures. Warning Before replacing the elements always check that there is no pressure inside the device. Procedures Disassembly Case assembly removal...
- Page 20 Stop immediately the operation and contact us in case of strange noises and nasty smells coming from the Air Turbine Spindle or in case of strong vibrations. In addition do not continue to operate with strong vibrations (chattering process). EXPORT DEPARTMENT ( +81 ) -72-982-8277 E-mail export@big-net.ne.jp No.0217...
