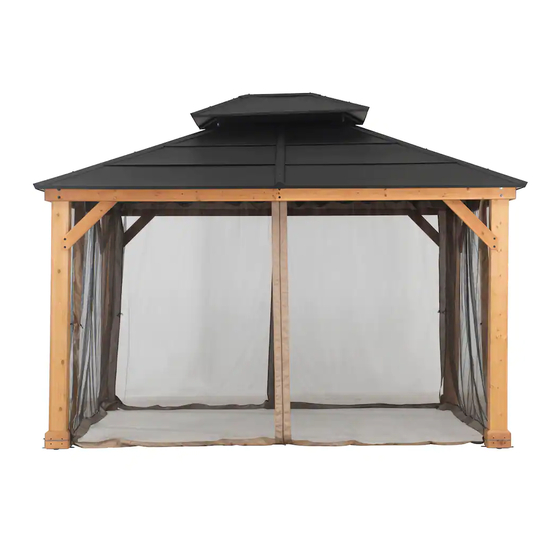

COLLINGWOOD
GAZEBO NETTING
PRODUCT NO. 088-2238-6
MODEL NO. A111503701
Assembly INSTRUCTIONS
Toll-free: 1-888-670-6684
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
Production Number: xxxxxxxx
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Canvas COLLINGWOOD A111503701
Summary of Contents for Canvas COLLINGWOOD A111503701

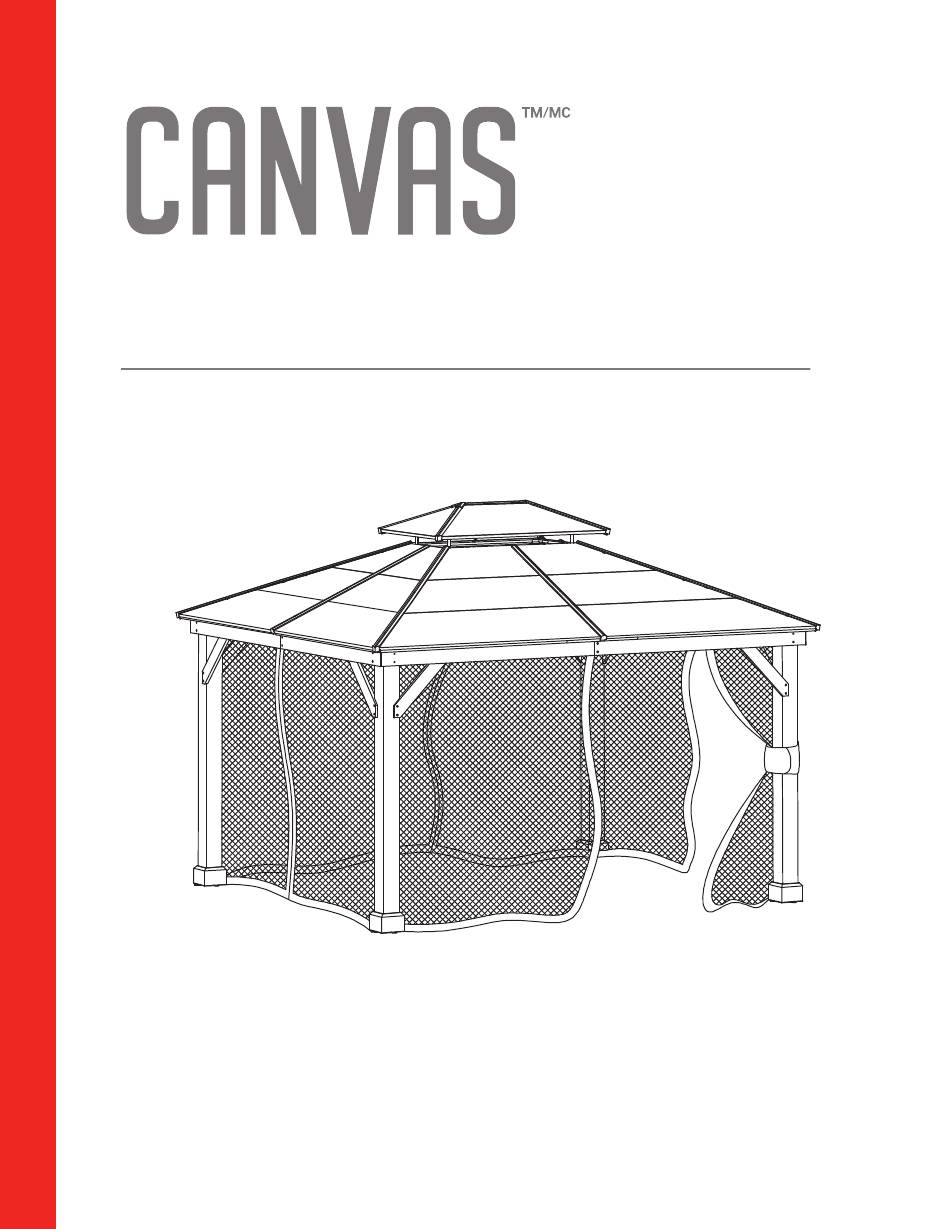

- Page 1 COLLINGWOOD GAZEBO NETTING PRODUCT NO. 088-2238-6 MODEL NO. A111503701 ASSEMBLY INSTRUCTIONS Toll-free: 1-888-670-6684 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Production Number: xxxxxxxx...
- Page 2 IMPORTED FOR TRILEAF DISTRIBUTION TRIFEUIL TORONTO, CANADA M4S 2B8...
- Page 3 Please read and understand the manual before proceeding with assembly. Check and ensure all parts are present. Retain for future reference, and read carefully.
- Page 4 PRODUCT NO. 088-2238-6 | MODEL NO. A111503701 P001200177 Mosquito Netting – P005100264 Ring – Spare...
- Page 5 Let us help you! DO NOT RETURN YOUR PRODUCT TO THE STORE. CALL US FIRST! 1-888-670-6684 If you have questions regarding your product, require warranty assistance, or have damaged or missing parts, please call our customer service toll-free helpline. Contact us for assistance; we’re here to help.
- Page 6 PRODUCT NO. 088-2238-6 | MODEL NO. A111503701 STEP Open the netting and unzip to separate the 4 panels Attach plastic rings to the netting Zipper Zipper grommets. Divide rings on each quadrant so 7 are on the longer side of gazebo, and 6 are on the shorter side of gazebo.
- Page 7 2 Assembly of netting 4x opened panels of part “Y2” Rings Rings Install the walls on the outer track of the curtain rail To correctly attach panels, please be sure to match up the small numbers at top of walls (1 + 1; 2 + 2;...
- Page 8 3 lb 12 oz 1.7 kg This CANVAS product carries a one (1) year warranty against defects in workmanship and materials on the frame and 1 year for the remaining parts. Trileaf Distribution agrees to replace a defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase.
