Summary of Contents for Canvas 088-1759-2

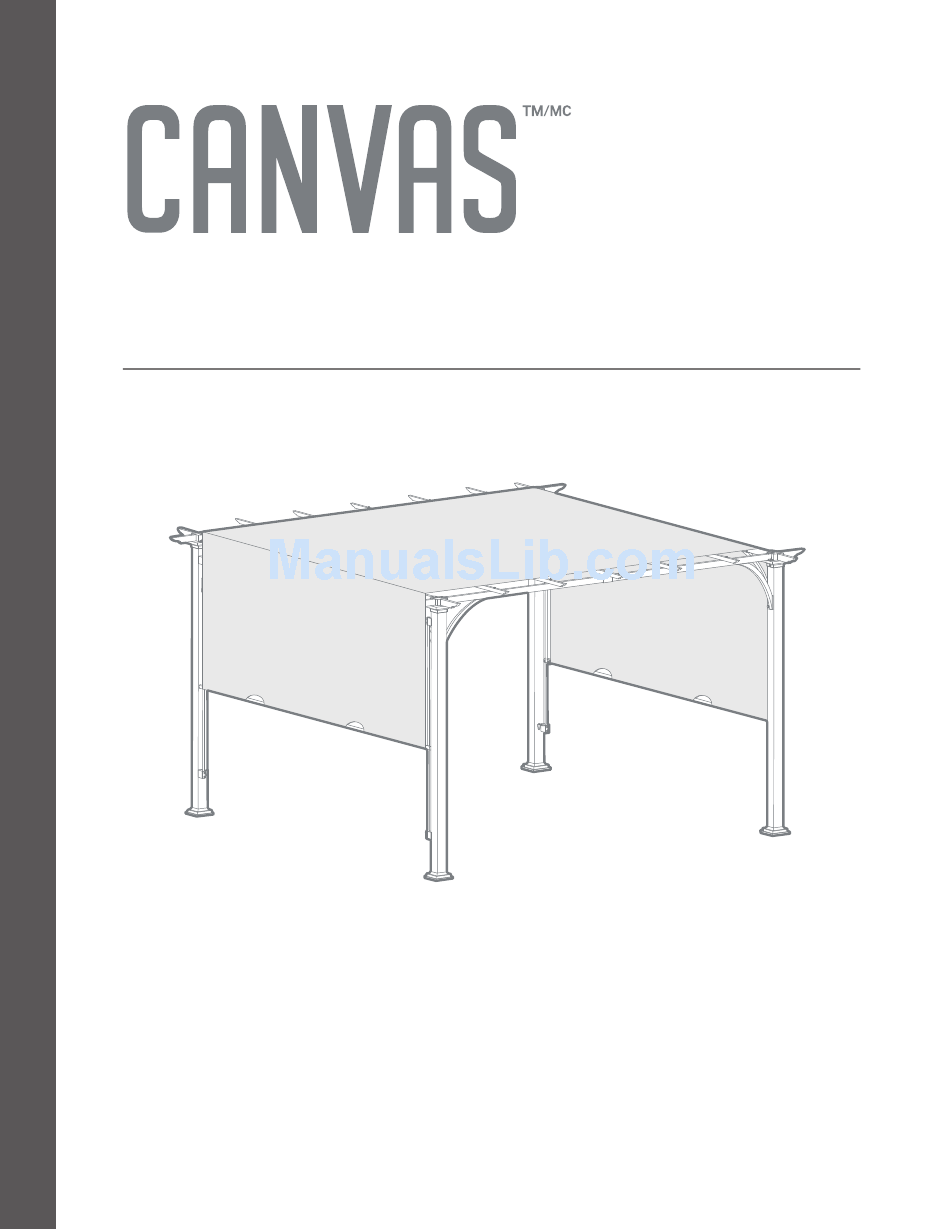

- Page 1 SUMMERHOUSE PERGOLA MODEL NO. 088-1759-2 ASSEMBLY INSTRUCTIONS Toll-free: 1-844-786-5691 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference.
- Page 2 MADE IN CHINA IMPORTED BY TRILEAF DISTRIBUTION TRIFEUIL TORONTO, CANADA M4S 2B8...
- Page 3 • Always ensure that the canvas is taut, to avoid water accumulation on the roof. If water accumulates on the roof, remove it immediately or disassemble the pergola in order to avoid damages.
-
Page 4: Table Of Contents
PRODUCT NO. 088-1759-2 Top bar 1 - 5 Connector for rail 2 - 2 Connector for rail 3 - 2 Top bar 2 - 5 Beam 1 - 2 Tube for canopy 1 - 2 Tube for canopy 2 - 2... -
Page 5: Parts List
CAUTION! • Proper placement of the pergola is essential. Do not place the product underneath electrical lines. • Keep children under close supervision while they are playing around this product. This product contains small parts which can be swallowed by children. -
Page 6: Beam
PRODUCT NO. 088-1759-2 PRODUCT NO. 088-1759-2 NOTE: When using screws and bolts to assemble the product, always use a flat washer between the frame and the screw or bolt. This will protect the parts from wear and tear. Step 1... -
Page 7: Corner
Step 3 Requires B3, B4, AA, BB, W Insert Beam 3s (B3) into Beam 4s (B4), then attach using M6x15 bolts (AA) and M6 washers (BB). Tighten the bolts using the wrench (W). Step 4 Requires B1, B2, B3, B4, C, AA, BB, W Attach the assembled beams (B1, B2), (B3, B4) in sequence of B1B2, B3B4, B1B2, B3B4 to the Corner connectors (C) using M6x15 bolts (AA) and M6 washers (BB). -
Page 8: Post
PRODUCT NO. 088-1759-2 Step 5 Requires A1, A2, B1, B2, BB, CC Attach the assembled Top bars (A1, A2) to assembled Beams (B1, B2) using M6x45 screws (CC) and M6 washers (BB). B1 B2 Step 6 Requires E1, E2, H, G, BB, DD... -
Page 9: Arch Support
Step 7 Requires C, E1, E2, AA, BB, W Attach assembled Corner connectors (C) to top of Posts (E1, E2) using M6x15 bolts (AA) and M6 washers (BB). Tighten the bolts using the wrench (W). NOTE: side with thread holes of While assembling (C) to (E1, E2), make sure to assemble E1 and E2 toward inner of pergola, otherwise Arch supports (I1, I2) will not mount... - Page 10 PRODUCT NO. 088-1759-2 Step 9 Requires N Carefully lay the Canopy (N) over the assembled structure. Step 10 Requires L1, L2, BB, DD Insert Tube for canopy 1s (L1) into Tube for canopy 2s (L2). Attach using M6x15 screws (DD) and M6 washers (BB).
-
Page 11: Connector For The Tube Of
Step 11 Requires L1, L2, N Insert assembled Tubes for canopy (L1, L2) into the holes at the lower ends of Canopy (N). NOTE: While assembling (L1, L2) to (N), make sure to assemble in such a way that the thread holes on (L1, L2) face the inner side of the pergola in order to attach Connector for the tube of canopy (J). -
Page 12: Connector For Rail
PRODUCT NO. 088-1759-2 Step 12 Requires J, K1, K2, K3, M, BB, EE 12a) Insert one Guideway bar (M) onto one Connector for the tube of canopy (J). 12b) Insert and attach the top end of the Guideway bars (M) with Connector for rail 1 (K1) and lower end with Connector for rail (K2, K3) using M6x75 screws (EE) and M6 washers (BB). - Page 13 Step 13 Requires E1, E2, J, K1, K2, K3, M, BB, EE Attach the assembled Guideway bars (M) to Posts (E1, E2) using M6x75 screws (EE) and M6 washers (BB). NOTE: When attaching Guideway bars to Posts (E1, E2), make sure that the Guideway (M) with bars with Connectors (K2) attach to Posts (E1) and the Guideway bars...
- Page 14 PRODUCT NO. 088-1759-2 Step 14 Requires J, L1, L2, BB, DD Attach each Connector for the tube of canopy (J) to the end of the Tubes for the canopy (L1, L2) using M6x15 screws (DD) and M6 washers (BB). L1 L2...
- Page 15 Step 16 Requires H, FF If using on soil or grass, pull up the Base protectors (H) and anchor the Posts (E1, E2) to the ground using stakes (FF). Step 17 The pergola is ready for use.
-
Page 16: Assembly
PRODUCT NO. 088-1759-2 CAUTION! • Check all screws and nuts periodically for tightness; tighten them as required. • Disassemble the pergola in reverse order of steps for assembly. Always disassemble the pergola completely. A partially-disassembled pergola is not stable enough to resist wind and bad weather, and therefore can be damaged and/or cause damage. -
Page 17: Warranty
This CANVAS product carries a one (1) year warranty against defects in ™ workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase. This product is not guaranteed against wear or breakage...
