Colebrook Bosson Saunders AV/VC Intro AVS/031/001 Installation Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Installation Instructions
for AV/VC Intro
AV S / 0 3 1 / 0 0 1
AVS-031-001-I N S T - B - O C T 2 0 1 8

Advertisement

loading
Need help?

Need help?

Do you have a question about the AV/VC Intro AVS/031/001 and is the answer not in the manual?

Questions and answers

Related Manuals for Colebrook Bosson Saunders AV/VC Intro AVS/031/001

Summary of Contents for Colebrook Bosson Saunders AV/VC Intro AVS/031/001

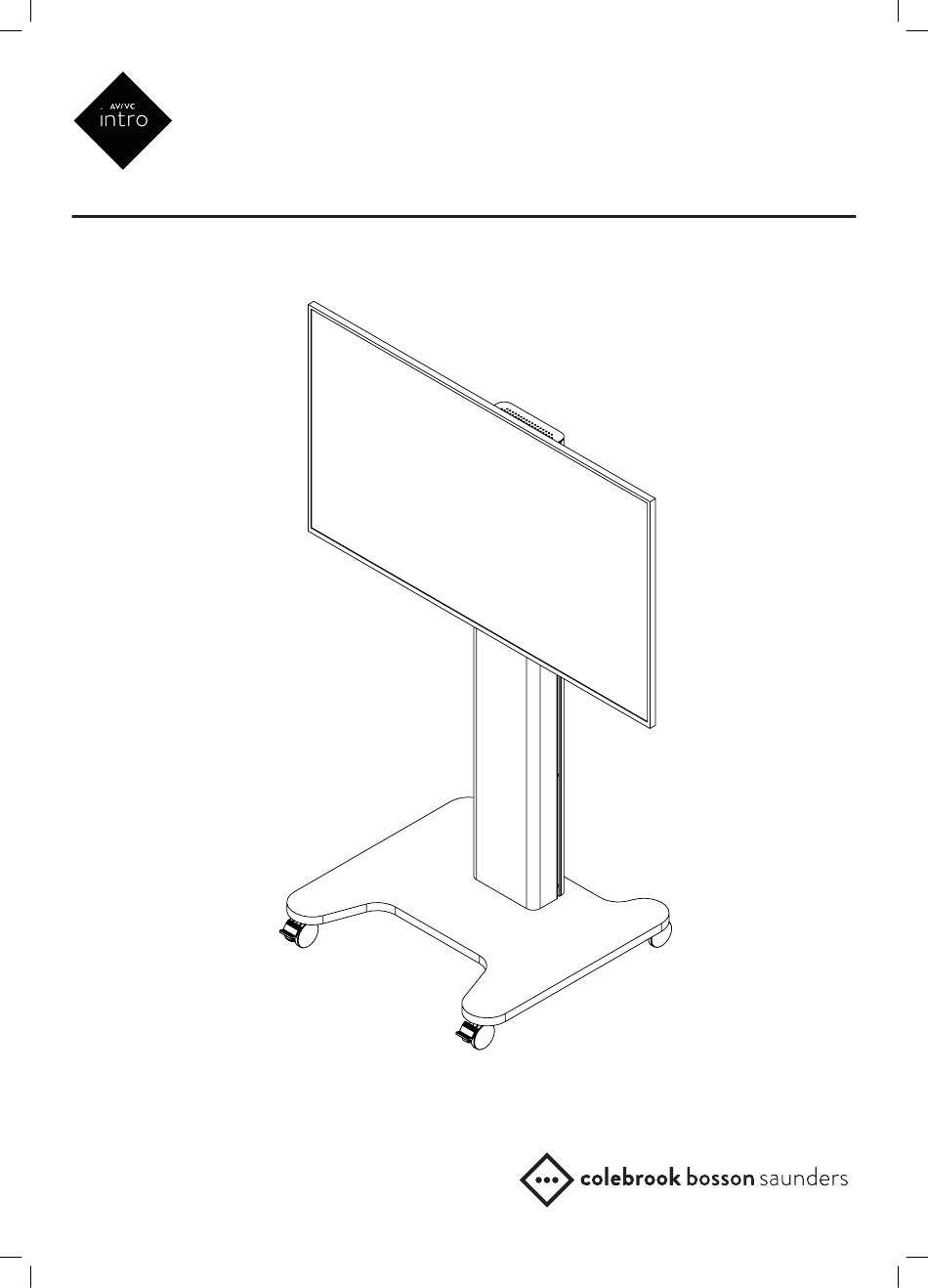

  • Page 1 Installation Instructions for AV/VC Intro AV S / 0 3 1 / 0 0 1 AVS-031-001-I N S T - B - O C T 2 0 1 8...
  • Page 2 AV/VC Intro — system overview C O r e S T A N d e l e M e N T S VESA fixing kit AVS/031/001 AVS/031/SMK1 AVS/031/002 AV/VC Intro – Column AV/VC Intro - Screen Mount Kit AV/VC Intro - Base (inc.
  • Page 3 Some important precautions LEVEL...
  • Page 4 P A T E N T S Colebrook Bosson Saunders hold a number of patents and other intellectual property rights covering our products and processes. You can find patent information on our website at: www.colebrookbossonsaunders.com/patents...
  • Page 5 Assemble column to base 1 . 1 R E M O V E B A C K P A N E L F R O M C O L U M N Turn key to unlock Lie column on floor 1 .
  • Page 6 Install screen mount 2 . 1 F I X S C R E E N M O U N T T O S C R E E N I M p O r TA N T N O T e Carefully select fixing screws to suit screen being mounted 2 .
  • Page 7 2 . 4 S E C U R E S C R E E N M O U N T T O C O L U M N I M p O r TA N T N O T e Ensure all 4 screws are fully tightened 2 .

  • Page 8: Installing Equipment

    Installing equipment 3 . 1 F E E D C A B L E S P A S T E Q U I P M E N T B A S K E T A N D P L A C E E Q U I P M E N T I N T O P O S I T I O N 3 .
  • Page 9 Install back panel 4 . 1 F I T B A C K P A N E L 4 . 2 C L O S E B A C K P A N E L I M p O r TA N T N O T e Key must be inserted and turned to close panel...
  • Page 10 I N S T A L L A T I O N I S N O W C O M P L E T E p l e A S e C O N S I d e r l e A V I N G T h e S e I N S T r u C T I O N S W I T h T h e u N I T I F F u r T h e r I N S T A l l A T I O N M A y B e r e q u I r e d B y O T h e r S I F y O u r I N S T A l l A T I O N r e q u I r e S T h e F O l l O W I N G A V / V C I N T r O A C C e S S O r I e S p l e A S e I N S T A l l A T T h I S S T A G e...
