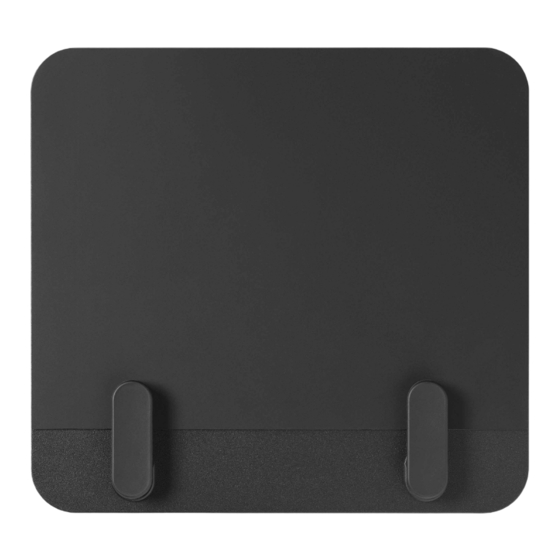

Colebrook Bosson Saunders Lima Installation Instructions

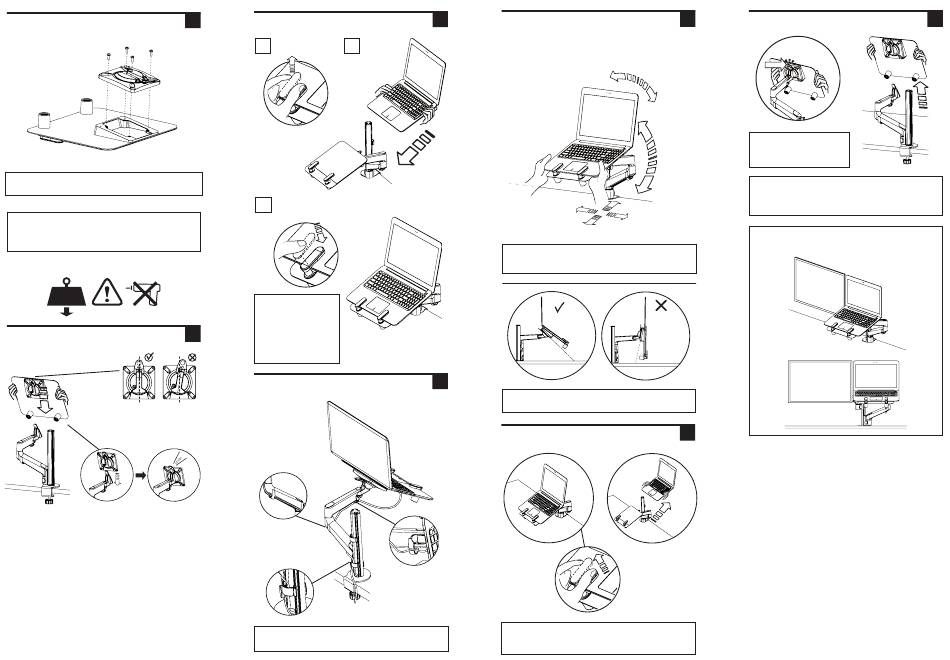

I N S T A L L V E S A P L A T E
W A R N I N G
Ensure the shorter screws (M4 x 10) provided with the VESA plate are used.
I M P O R T A N T
It is the responsibility of the installer to ensure all mounting
screws are properly inserted into the mount. Under or over insertion
may cause damage to the equipment or injury to personnel.
DO NOT exceed maximum recommended load.
TOTAL MAX
2.8KG/6.2L B
I N S T A L L L A P T O P M O U N T T O A R M
Ensure that portrait/
landscape action is returned
to vertical position.
1
M O U N T L A P T O P
Pull out the retainers.
3A 3B Push the
laptop down
into position
on the Laptop
Mount.
Push down the retainers
3C
to secure laptop.
I M P O R T A N T
If mounting a laptop to a
dynamic monitor arm, the
spring tension may need to be
adjusted to suit the mounted
2
weight. Please refer to the
instructions supplied with your
chosen arm.
I N S T A L L L A P T O P C A B L E S I N T O
C A B L E M A N A G E M E N T F E A T U R E S
I M P O R T A N T
Ensure you leave enough free cable to avoid stretching or
snagging at all positions of arm movement and laptop tilt.
3
U S I N G Y O U R L A P T O P M O U N T
Once it has been correctly
set up, you will be able to
easily position your laptop
wherever you want it.
T I P
Please refer to instructions supplied with monitor arm on how to adjust
height of arm.
4
I M P O R T A N T
Ensure Laptop Mount does not go beyond vertical.
T O R E M O V E L A P T O P F R O M M O U N T
W A R N I N G
Stored energy hazard when using a dynamic monitor arm.
Arm mechanism is under tension and will spring up when load is
removed. Failure to follow instructions could result in injury.
5
T O R E M O V E L A P T O P M O U N T F R O M A R M
PUSH
I M P O R T A N T
Ensure the quick release mechanism
on the VESA is held down throughout
removing the Laptop Mount.
W A R N I N G
If using a dynamic monitor arm, raise arm to uppermost position before
removing Laptop Mount, otherwise it may spring up when unloaded.
Ensure the laptop is not on tray when removing.
N O T E
The Laptop Mount also supports dual screen working.
6
