- Page 1 LED LIGHTING FOR UHD BROADCASTING EST.2008 SPOT LIGHT FS SERIES USER MANUAL...
-
Page 2: Safety Information
Safety Information 1. Do not open or disassemble the cover to reduce the risk of electric shock. WARNING 2. Please wear safety equipment such as safety helmet during work. 3. Be sure to fix the safety chain on the product when installing and moving. 4. -
Page 3: Table Of Contents
Contents [LCD Screen Instruction] [Error Information] Safety Information Unlocking Temperature Sensor Contents Screen Instruction Network Connection [Fixture Information] Menu Tree [Protocols] Fixture Information Main Screen by Mode DMX Protocols & Product Information Fixture Exterior View RDM Protocols DMX Mode Dimensions (Channel Change &... -
Page 4: Fixture Information
LED and color temperature change by chromatic aberration. FS Series is a single light source with a large capacity, such as a halogen lamp, and the texture of the light source projected by the lens is very soft. -
Page 5: Fixture Exterior View

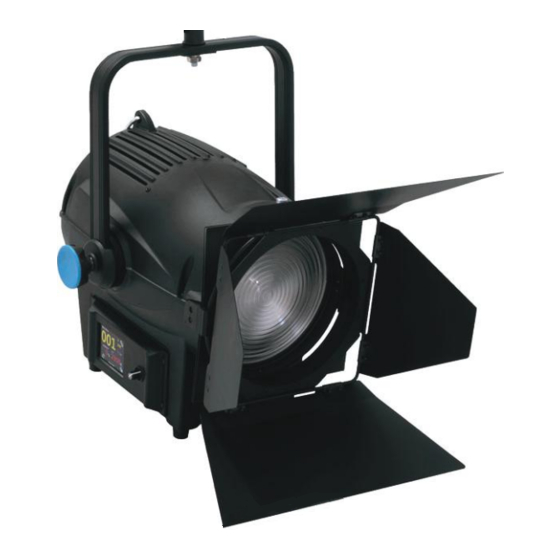

Fixture Exterior View Yoke Handle Smart Touch Install Area LCD Screen Focus Knob Install Area Connector Panel Fixed Knob Install Area... -
Page 6: Dimensions
Dimensions (FS1000 / FS1500) (inch) - Page 7 Dimensions (FS2000) (inch)
- Page 8 Dimensions (FS3000 / FS5000) (inch)
-
Page 9: Technical Specifications
Technical Specifications FS1000 FS1500 FS2000 FS3000 FS5000 Optical System Focusable Fresnel Lens Lens Diameter 170mm / 7” 200mm / 8” 250mm / 10” Beam Angle 15° ~ 55° (Half Peak Angle) Weight (kg/lbs) 8.5 / 18.7 10 / 22 14 / 30.9 Handling Adjusting Sliding Stirrup, High Strength Tilt Lock Mounting... -
Page 10: Photometric Diagram
Photometric Diagram FS1000 (50°) Illuminance(lux) FS1500 (50°) 1395 Source Four 15-55° FS2000 (50°) 1983 Zoom set at 50° (cosine) FS3000 (50°) 2947 1163 ISO-Luminace Diagram FS5000 (50°) 4130 1620... -
Page 11: Power Connection
Power connection AC power at 100-240V, 50-60Hz 1. POWER ON/OFF SWITCH 2. POWER IN 3. DMX IN 4. DMX OUT USB PORT (for ADMINISTRATOR ONLY) (Do not connect USB without administrator's permission.) 1. Observe the proper voltage range 2. If power is supplied outside the range, noise may be generated from the SMPS. 3. -
Page 12: Dmx Connection
DMX Connection 3-pin or 5-pin XLR sockets are equipped for DMX input and output, depending on user needs. Connect the controller to a lighting, or lighting fixture to other lighting fixture. If user uses a standard DMX controller, the DMX output of the controller can connect directly to the DMX input of the first fixture in the DMX chain. -
Page 13: Unlocking
Unlocking Main Screen (Locked) Fixture ID Screen (Locked) When the fixture is turned on, the Smart Touch screen automatically locked. To unlock the touch screen, touch the finger icon( ) three times. If you do not touch for 30 seconds, the lock is reset. -
Page 14: Screen Instruction
Screen Instructions Current Mode Display DMX MODE or USER MODE or COLOR MODE. Current Channel Mode Display current channel mode (only display on DMX MODE) DMX512 Address Display current DMX512 Address. Brightness (Intensity) Displays the brightness value(0~100%) of the equipment. CCT (Correlated Color Temperature) Displays the color temperature(2900~6000K) of the equipment. -
Page 15: Menu Tree
Menu Tree Θ Home (Main screen) Θ DMX512 Mode Θ Setting DMX mode select Sleep mode setup DMX address input Master function setup Θ Information RDM mode setup DMX channel value Dimming speed setup Θ User Mode Θ Information Intensity setup Description of each function Color temperature setup Θ... -
Page 16: Main Screen By Mode & Product Information
Main Screen by Mode & Product Information (DMX MODE) (USER MODE) (COLOR MODE) The current mode is displayed among DMX mode, user mode and color mode(not applicable model) in the upper left corner of the main screen, and the DMX address number of the equipment is displayed in the middle with a yellow number. At the bottom, the current lighting value and fixture temperature are displayed, and some lighting value can be adjusted on the main screen by touching the value. -
Page 17: Dmx Mode
DMX Mode Channel Change & Address Setup - DMX MODE : It is used to adjust by DMX512 signal. User can move to the DMX channel change screen by selecting ‘DMX512 MODE’ button in main screen. In DMX512 MODE screen, user can select DMX channel mode on top tap, and input DMX512 address by pressing the number pad. -
Page 18: User Mode
User Mode Setup & Intensity / CCT Adjust - USER MODE : It is used when the user directly manipulates the equipment. User can move to the User Mode change screen by selecting ‘USER MODE’ button or press ‘Current Intensity’, ‘Current CCT’, ‘Current Tint’ in main screen to activate function control bar. In USER MODE screen, select the bar user want to change to activate(Orange color), and can adjust the activated value by dragging. -
Page 19: Sleep Mode Function
Extra Function – Sleep Mode / Master / RDM / Dimming Speed Additional settings besides the main icons can be setup by selecting SETTING button in main screen. In SETTING, user can set SLEEP MODE, MASTER, RDM, and DIMMING SPEED features. Each time touch the SLEEP MODE, MASTER SETUP, RDM MODE user can select On or Off, and DIMMIN SPEED SETUP can be activated by touching, and press +, - to adjust the value. -
Page 20: Fixture Id Number Setup
Fixture ID & Label Setup (Main Screen) (Fixture ID Screen) (Fixture ID Input window) User can change the screen to Fixture ID and number Pressing the Info button in FIXTURE ID, by selecting FIXTURE ID button in main screen. displays description of the function. In FIXTURE ID, touch the large number to switch to the Fixture ID It is the number value 001 to 9999 for the number(from 1 to 9999) input window. -
Page 21: Error Information
Error Information Temperature Detects the temperature of the current fixture(LED, drive, housing) and displays it on the Smart Touch LCD screen. 45˚C or less is cyan, 46~69˚C is yellow, and 70˚C or more is red. Sensor If the temperature exceeds 75˚C, the actual LED output will decrease. If it exceeds 85˚C, the actual LED output will be 0%, and 'Temperature Error Please Check Device !!' will be displayed. -
Page 22: Dmx Protocols
DMX Protocols (1/2) Channel Mode Mode Channel DMX Value Function 0~255 0~100 Dimmer 0~255 0~100 Dimmer 0~255 0~100 Color Temperature(CCT) - Page 23 DMX Protocols (2/2) Channel 2 : White Color Temperature DMX Value Function DMX Value Function DMX Value Function 0~255 88~91 4000K 180~183 5150K Dimmer 0~100% 2900K 92~95 4050K 184~187 5200K 2950K 96~99 4100K 188~191 5250K 8~11 3000K 100~103 4150K 192~195 5300K 12~15 3050K...
-
Page 24: Rdm Protocols
RDM Protocols (1/3) Parameter ID Discovery command SET command GET command DISC_UNIQUE_BRANCH DISC_MUTE DISC_UN_MUTE DEVICE_INFO SUPPORTED_PARAMETERS SOFTWARE_VERSION_LABEL DMX_START_ADDRESS IDENTIFY_DEVICE DEVICE_MODEL_DESCRIPTION MANUFACTURER_LABEL DEVICE_LABEL SENSOR_DEFINITION SENSOR_VALUE DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION STATUS_MESSAGES Lamp Controls Control Property Value (Example) Description User Settings Remarks Device identification action active Identify On Enable Identify device = Same as On... - Page 25 Description User Setting Remarks Device Model Description FS2000 Model number of the device Disable Manufacturer Label ALPHA LITE Name of the manufacturer Disable Device Label SPOT123 ex) Input :SPOT123 ►Name : SPOT123 Fixture name and management ►Management # : 123...
- Page 26 RDM Protocols (3/3) Sensor Device Sensors Value (Example) Description User Setting Remarks Sensor Temp 64 ˚C Current fixture temperature Disable Error Message Condition Level Description Display Sensor Over Temp Warning Orange message Fixture temperature 46 ~ 69˚C Sensor Over Temp Error Fixture temperature over 70˚C Red message...
