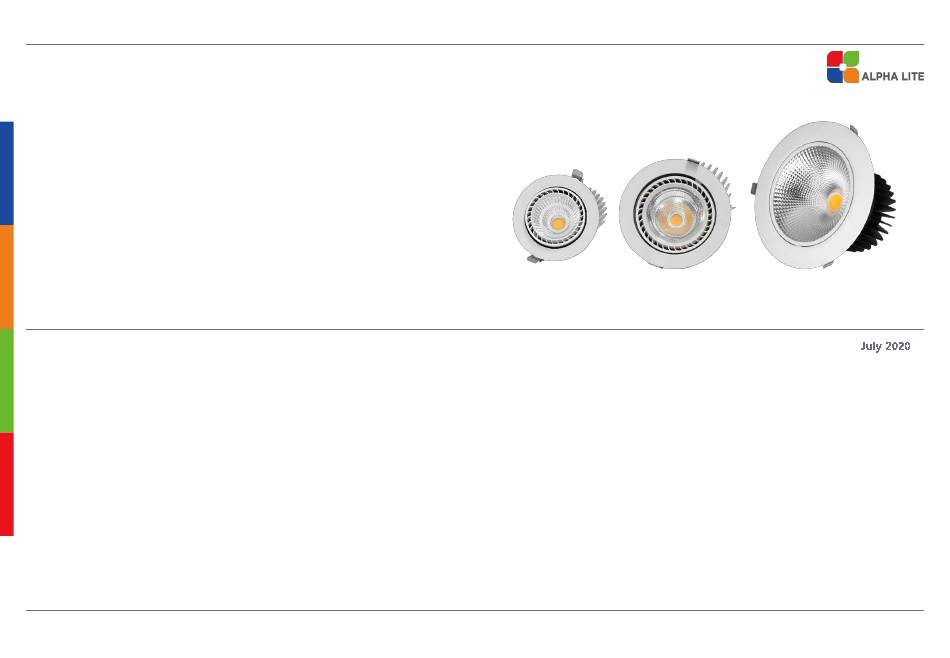

- Page 1 LED LIGHTING FOR UHD BROADCASTING EST.2008 DOWNLIGHT DL SERIES USER MANUAL...
-
Page 2: Safety Information
Safety Information 1. Do not open or disassemble the cover to reduce the risk of electric shock. WARNING 2. Please wear safety equipment such as safety helmet during work. 3. Be sure to fix the safety chain on the product when installing and moving. 4. -
Page 3: Table Of Contents
Contents Safety Information Contents [Fixture Information] Fixture Information Dimensions Technical Specifications [Connection and Setting] Connection Diagram Connect Lighting On Address Setting... -
Page 4: Fixture Information
Fixture Information - High color rendering of CRI 90 or higher - COB LED Chip - Horizontal 360˚, vertical 27˚ angle adjustable - All-in-one Main drive controller - RDM network communication possible - Maintain the last signal when DMX signal is lost - Dimming curve selectable (Linear &... -
Page 5: Dimensions
Dimensions (DL30) (7.2) ∅154 (6.1) ∅164 (6.5) (inch) - Page 6 Dimensions (DL50) (8.6) ∅174 (6.9) ∅185 (7.3) (inch)
- Page 7 Dimensions (DL100) (inch)
-
Page 8: Technical Specifications
Technical Specifications DL30 DL50 DL100 Power Consumption LED Chip White 30~60W CSP LED or COB White 30~60W CSP LED or COB White 1000W COB LED Cut-off Size ø154 ø174 ø210 Beam Angle 15°, 24°, 36°, 60° 15°, 24°, 36°, 60° 30°, 40°, 65°... -
Page 9: Connection Diagram
Connection Diagram (Lighting Console) (Termination resistance) -
Page 10: Connect
Connect ▶ SMPS – AC connection Please check the connection when connecting. Connect 100~220V Free Volt AC input cord to connector Brown Yellow-Green Blue ▶ SMPS – AC Thru connection Other controller SMPS can be connected to SMPS connector with AC power cord. The line of other SMPS match the color and connect to the right hole of the connector. -
Page 11: Lighting On
Lighting On ▶ Lighting On/Off : Manual operation without DMX signal Light on : Dip switch #1 and #10 go down, Light off : Dip switch #1 goes up The light turn on. while the light is on, the light turns off. ❖... -
Page 12: Address Setting
Address Setting ▶ Free Recommended Application Dip switch value (binary) can be easily converted DMX Calc (Android) DMX Dip (iOS) Dezelectric Matthias Bauch ▶ Initial Setting Adjust the APP layout to match the controller’s function switch layout. When the address is 000, - When the address is 000, the dip switch must be all up.
