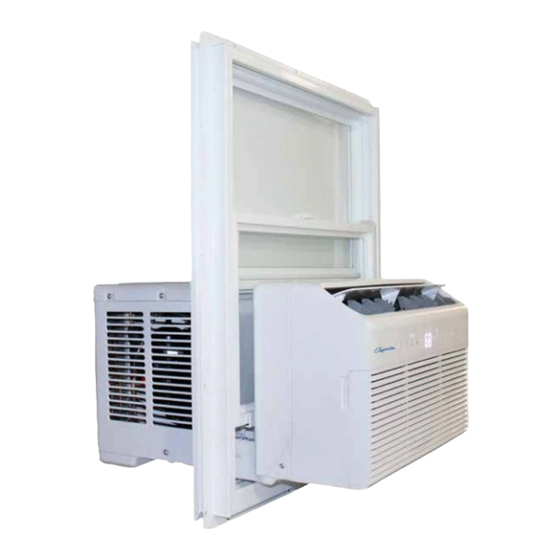

- Page 1 Installation and Operation Manual RXTS Series U-Rack Window Type Room Air Conditioner RXTS-81A RXTS-101A RXTS-121A www.comfort-aire.com...
-
Page 2: Table Of Contents
Table of Contents Important Safety Instructions ...........3 Installation Instructions..............13 Normal Sounds................18 Air Conditioner Features............19 Care and Cleaning...............24 Troubleshooting Tips..............25... -
Page 3: Important Safety Instructions
IOM - RXTS Series Important Safety Instructions READ THIS MANUAL Inside you will nd many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. - Page 4 IOM - RXTS Series CAUTION When the air filter is to be removed, do not touch the metal parts of the unit. It may cause an injury. Ventilate the room well when used together with a stove, etc. An oxygen shortage may occur.
- Page 5 IOM - RXTS Series NOTE: The power supply cord with this air conditioner contains a current detection device designed to reduce the risk of re. Please refer to the section Operation of Current Device for details.In the event that the power supply cord is damaged, it cannot be repaired-it must be replaced with a cord from the Product Manufacturer.
- Page 6 IOM - RXTS Series Operation of Current Device (Applicable to the unit that adopts current detection device only) The power supply cord contains a current device that senses damage to the power cord. To test your power supply cord do the following: 1.Plug in the Air Conditioner.
- Page 7 IOM - RXTS Series -Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.
- Page 8 IOM - RXTS Series WARNINGS (for using R290/R32 refrigerant only) 1.Transport of equipment containing flammable refrigerants See transport regulations 2.Marking of equipment using signs See local regulations 3.Disposal of equipment using flammable refrigerants See national regulations. 4.Storage of equipment/appliances The storage of equipment should be in accordance with the manufacturer's instructions.
- Page 9 IOM - RXTS Series WARNINGS (for using R290/R32 refrigerant only) 7)ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out.
- Page 10 IOM - RXTS Series WARNINGS (for using R290/R32 refrigerant only) Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of ammable atmospheres. Replacement parts shall be in accordance with the manufacturer's speci cations.
- Page 11 IOM - RXTS Series WARNINGS (for using R290/R32 refrigerant only) Open the circuit by cutting or brazing. The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be ushed with OFN to render the unit safe. This process may need to be repeated several times.
- Page 12 IOM - RXTS Series WARNINGS (for using R290/R32 refrigerant only) j)When the cylinders have been lled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed o .
-
Page 13: Installation Instructions
IOM - RXTS Series Installation Instructions NOTE: All the illustrations in this manual are for explanation purpose only. The air conditioner you have may be slightly di erent. The actual shape shall prevail. - Page 14 IOM - RXTS Series CAUTION BEFORE YOU BEGIN Do not, under any circumstances, cut or remove the third (ground) prong from the Read these instructions completely and power cord. carefully. Do not change the plug on the power cord MPORTANT-Save these instructions for of the air conditioner.
- Page 15 IOM - RXTS Series PREPARE THE WINDOW ASSEMBLE THE SUPPORT BRACKET Lower sash must open su ciently to allow a clear Connect the retaining plate and support rail vertical opening of 13 inches (330mm). Side via snaps. And x the horizontal support plate...
- Page 16 IOM - RXTS Series Prepare Sill Stop Wings: slide wings(left and right) onto frame.See Fig.3 sill stop wings Fig.3 INSTALL THE SUPPORT BRACKET Fig.4B Adjust the braket until the sliding leg is firmly secure against exterior surface. Place in window: Rest bracket on the bottom INSTALL AC sill.
- Page 17 IOM - RXTS Series Fasten the AC with L plate. See Fig.7 Cut the Sealed sponge to proper length for sealing the space beteen the window and unit. Fig.8 Fig.8 Close the window. Fig.7...
-
Page 18: Normal Sounds
IOM - RXTS Series Normal Sounds High Pitched Chatter High e ciency compressors may have a high pitched chatter during the cooling cycle. Pinging or Switching Droplets of water hitting Sound of Rushing Air condenser during normal operation may cause At the front of the unit, you "pinging or swishing"... -
Page 19: Air Conditioner Features
IOM - RXTS Series Air Conditioner Features Air Directional Louvers WARNING To reduce the risk of re, electric shock, or injury to persons, read the IMPORTANT Lever SAFETY INSTRUCTIONS before operating this appliance. Lever CAUTION Please always wait 3 minutes when turning unit o then on again, and when changing from cool to fan and back to cool. - Page 20 IOM - RXTS Series ELECTRONIC CONTROL OPERATING INSTRUCTIONS NOTE: Different models have different control buttons and indicator lights. Not all the control buttons and indicator lights described below are available for the unit you purchased. Please check the control panel of the unit you purchased.
- Page 21 IOM - RXTS Series ECO button Press ECO button to initiate this function. This function is available on COOL, DRY, AUTO (only AUTO- COOLING and AUTO-FAN) modes. The fan will continue to run for 3 minutes after the compressor shuts off.The fan then cycles on for 2 minutes at 10 minute intervals until the room temperature is above the...
- Page 22 IOM - RXTS Series FAN button Press Fan button to select the Fan Speed in four steps-Auto, Low, Med or High. Each time the button is pressed, the fan speed mode is shifted.For some models, the fan speed can not be adjusted.
- Page 23 IOM - RXTS Series DISPLAYS Display DIS P L AY S : DISPLAYS: Shows the set temperature in " ℃" or " ℉" and the Auto-timer settings. While on Fan only mode, it shows the room temperature. If the room temperature is too high or low, it will display " HI" or " LO".
-
Page 24: Care And Cleaning
IOM - RXTS Series Care and Cleaning Cabinet Cleaning CAUTION Clean your air conditioner occasionally to Be sure to unplug the air conditioner to prevent keep it looking new. Be sure to unplug the shock or re hazard. The cabinet and front may... -
Page 25: Troubleshooting Tips
IOM - RXTS Series TROUBLESHOOTING TIPS Before calling for service, review this list. It may save your time and expense. This list includes common occurrences that are not the result of defective workman-ship or materials in this appliance. Problem Solution Air conditioner Wall plug disconnected. - Page 26 IOM - RXTS Series Problem Solution Water dripping Improper installation. Tilt air conditioner slightly to the outside to allow water drainage. INSIDE when unit Refer to installation instructions - check with installer. is cooling. Water dripping Unit removing large quantity of moisture from humid room. This is normal during excessively humid days.
- Page 27 Comfort-Aire shall have the right to allow a credit in the amount of the current suggested retail price of the product instead LIMITED ONE (1) YEAR EXPRESS WARRANTY of providing replacement.
- Page 28 1900 Wellworth Ave., Jackson, MI 49203 • Ph. 517-787-2100 • www.comfort-aire.com 2/2021...
