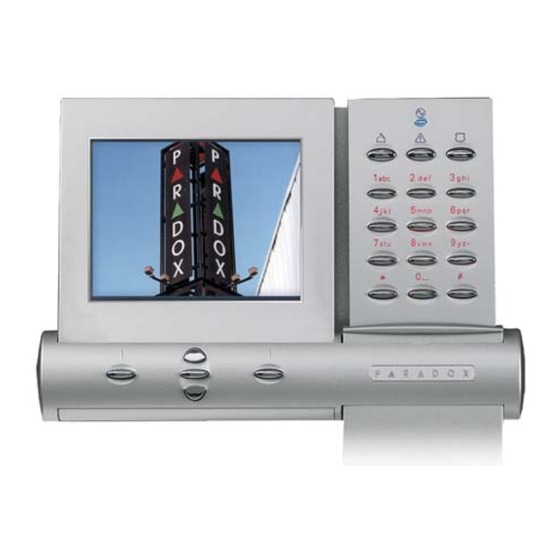

- Page 1 K07C: Grafica Color Keypad V1.0 Reference and Installation Manual...
- Page 2 Warranty For complete warranty information, please visit www.paradox.com/terms. Your use of the Paradox product signifies your acceptance of all warranty terms and conditions. Imperial, Grafica, BabyWare, EVO and WinLoad are trademarks or registered trademarks of Paradox Security Systems Ltd. or its affiliates in Canada, the United States and/or other countries.
-
Page 3: Table Of Contents
Table of Contents Overview ..............5 Description ................5 Features .................. 5 Installation .............. 6 Viewing Angle................6 Keypad Cover Clearance ............6 Mounting the Metal Wall Plate..........7 Connecting Grafica..............7 Keypad Input ................9 Temperature Sensors.............. 9 Mounting Grafica ..............10 Removing Grafica.............. -
Page 4: Specifications
Specifications Power input Typically 12 to 16 Vdc Current 120 mA (at maximum backlight setting) consumption Number of inputs Temperature 1 built-in, 1 optional external temperature sensor sensors (TEMP07) Locate indication Blue LED flashes Multibus/Combus Fault indication message will appear on the LCD screen. fault indication Anti-tamper switch Yes (optional) -
Page 5: Overview
Chapter 1: Overview Description Features Grafica sets a new milestone for • Photo screensaver keypads in the security industry. • Downloadable tunes and With its full color LCD screen, bitmaps Grafica offers the unique ability to • Smart search engine for users view zone locations on floor plan and zones drawings. -
Page 6: Installation
Chapter 2: Installation Viewing Angle Grafica’s graphic LCD screen is best viewed from an angle between 20° and -10° (see Figure 1). Be sure to install the Grafica keypad at a height and in a direction that provides the best viewing angle. Figure 1 +20°... -
Page 7: Mounting The Metal Wall Plate
Mounting the Metal Wall Plate 1. Place metal wall plate to desired position. 2. Drill and insert screws into holes labeled “A” (see Figure 3). Both the top and bottom center holes “C” can be used for an electrical box. Figure 3 - Mounting holes - For clip... - Page 8 Figure 4 Connecting Grafica with Keypad Input Multibus/ Combus 1 K * Grafica - * The keypad zone follows the control panel’s EOL definition. The zone speed is set at 600mS and cannot be programmed. - To other modules - To control panel - Door Contact Figure 5 Connecting Grafica with Temp.
-
Page 9: Keypad Input
Keypad Input Grafica’s keypad input can be utilized as a zone input or as an input for the optional temperature sensor (see Optional External Temperature Sensor). Refer to Figure 5 on page 8 for connection instructions. Temperature Sensors Grafica offers a built-in temperature sensor and an optional external temperature sensor. -
Page 10: Mounting Grafica
Mounting Grafica 1. Place Grafica’s back plate flush against the mounted metal wall plate “B” (see Figure 7). Figure 7 - Metal wall plate tabs - Metal wall plate - Optional screw 2. Slide Grafica’s open slots labeled “A” (see Figure 8) onto the metal wall plate’s tabs labeled “A”... -
Page 11: Removing Grafica
4. You may insert the optional screw “C” under the Grafica keypad through the space in the metal wall plate’s left tab (see Figure 7 on page 10). Removing Grafica 1. If required, remove the optional screw (see Figure 7 on page 10). 2. -
Page 12: Firmware Upgrade
Firmware Upgrade Imperial Systems The K07C is firmware upgradeable remotely via the V32 controller’s Multibus at 57.6Kbps. Using BabyWare connect to the V32 account using any of the connection methods (direct connect, IP static, or IP DNS). Right-click the desired module and select Upgrade. When... -
Page 13: Entering Module Programming Mode
Entering Module Programming Mode Like all other keypads in the system, Grafica is programmed through the control panel. To do so, you must enter the panel’s Module Programming Mode: 1. From Normal Mode press and hold the [0] key. 2. Enter the [ ] (by default 000000). -
Page 14: Keypad Options
Keypad Options The following sections detail Grafica’s programing options for EVO/DGP systems. Partition Assignment [001]: O ECTION PTIONS Each keypad in the system can be assigned to one or more partitions. In section [001], options [1] to [8] represent partitions 1 through 8 respectively. -
Page 15: Confidential Mode
Confidential Mode [002]: O ECTION PTIONS WARNING: For UL installations, Confidential Mode must be disabled (option [4] = OFF) If Confidential Mode is enabled and actions are not performed on the Grafica keypad for a period of time, the screen will display the time, date and all LEDs on the keypad will turn off until either a key is pressed, or an code # is entered. - Page 16 (see “Optional External Temperature Sensor” on page 9). If set as a temperature input, Grafica represents it as the outside temperature on the System Status screen next to the word “OUT”. Option [7] OFF = Temperature sensor input (default) Option [7] ON = Zone input Keypad Tamper [002]: O...
-
Page 17: All Zone Trouble Beep
All Zone Trouble Beep [003]: O ECTION PTION Option [4] OFF = Beep disabled (default) Option [4] ON = Beep on: All Zone Troubles Time Format [003]: O ECTION PTION Option [7] OFF = 24 hour format (default) Option [7] ON = 12 hour format: AM/PM Date Format [003]: O... -
Page 18: Temperature Broadcast
Temperature Broadcast Using sections [007] to [011], you can define which temperature readings are used for which purpose. For example, a Grafica keypad is installed in the main house as well as the guest house. The indoor temperature from the guest house keypad can be displayed as the outdoor temperature of the main house keypad, allowing you to monitor the indoor temperatures of both buildings. - Page 19 For Outdoor Temp., Import all Temp. Data From: [010] ECTION When section [007] option [2] is enabled, enter the serial number of the Grafica keypad from which you would like to import temperature data. Which Imported Temp. Value is Displayed as Outdoor Temp.
-
Page 20: Evo/Dgp Programming Sections
EVO/DGP Programming Sections = Default Setting Section [001]: Keypad Partition Assignment Option Partition 1 Disabled Enabled Partition 2 Disabled Enabled Partition 3 Disabled Enabled Partition 4 Disabled Enabled Partition 5 Disabled Enabled Partition 6 Disabled Enabled Partition 7 Disabled Enabled Partition 8 Disabled Enabled... - Page 21 Section [003]: Beep on Trouble Option System & clock trouble beep Disabled Enabled Communicator trouble beep Disabled Enabled Module & combus trouble beep Disabled Enabled All zone trouble beep Disabled Enabled Future use Future use Time format 24h / AM PM AM /PM Date display yy-mm-dd...
- Page 22 Section [007]: Temperature Options Option Indoor temperature from another Disabled Enabled Grafica Outdoor temperature from Disabled Enabled another Grafica Future Use Send indoor / outdoor Disabled Enabled temperature to other Grafica keypads [5]-[8] All Zone Trouble Beep Section [008]: For Indoor Temp., Import all Temp. Data From: Data __/__/__/__/__/__/__/__ (Another Grafica’s serial #) Section [009]: Which of the Imported Temp.
- Page 23 Index Numerics 12/24 hour time ................17 All zone trouble beep ..............17 AM/PM ................... 17 Beep ..................16 Beep - exit delay ................15 Beep on trouble ................16 Clock trouble beep ................. 16 Code entry ..................14 Combus trouble beep ..............16 Communicator trouble beep ............
- Page 24 Feature select programming ............13 Firmware upgrade ................12 Hexadecimal programming ............13 Hourglass icon ................14 Imperial systems ................12 Indoor temperature ................ 18 Input ....................9 Input type ..................15 Installation height ................6 Keypad clearance ................6 Keypad Input ..................
- Page 25 Removing Grafica ................11 Sections ..................20 Specifications ................... 4 System trouble beep ..............16 Tamper ..................16 Temperature - indoor/outdoor ............18 Temperature broadcast ..............18 Temperature calibration ..............17 Temperature sensor ................. 9 Time format ..................17 Trouble - beep ................16 UL installations ................
- Page 28 Monday to Friday from 8:00 a.m. to 8:00 p.m. EST. For technical support outside Canada and the U.S., call 00-1-450-491-7444, Monday to Friday from 8:00 a.m. to 8:00 p.m. EST. Please feel free to visit our website at www.paradox.com. K07C-EI00 06/2009 PARADOX.COM...
