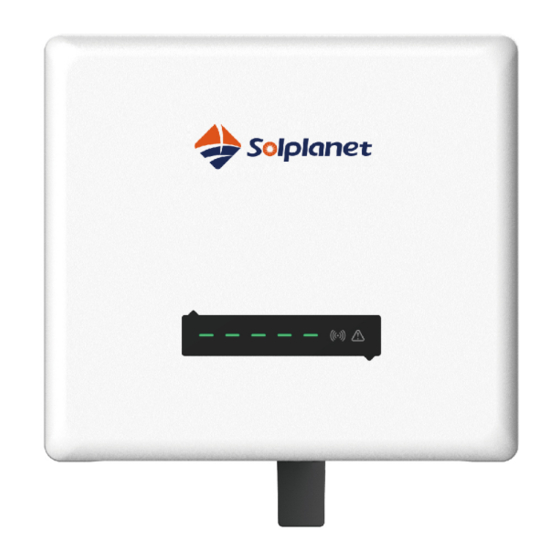

Solplanet ASW T Series User Manual

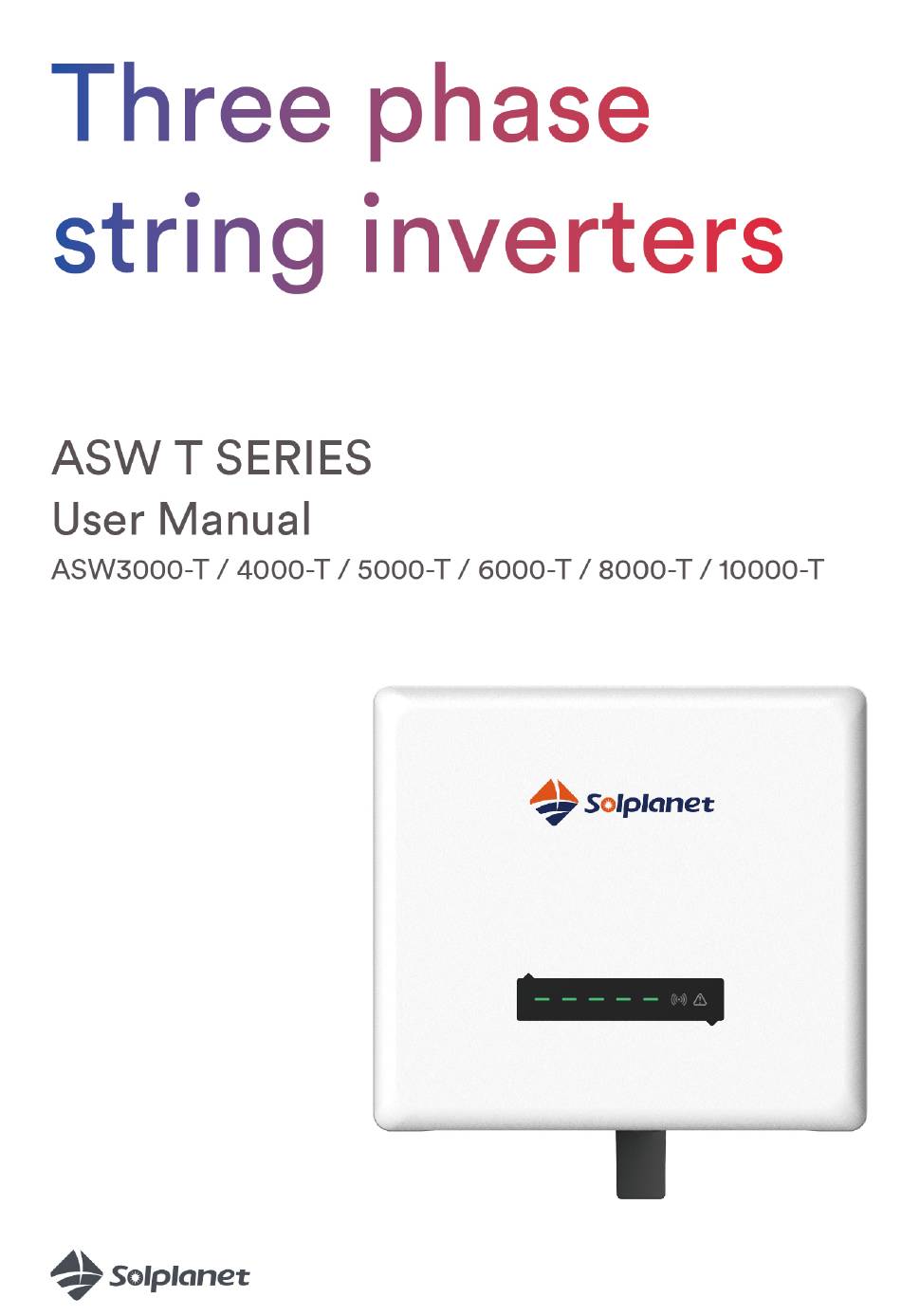

Three phase string inverters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASW T Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Solplanet ASW T Series

Summary of Contents for Solplanet ASW T Series

  • Page 2: Table Of Contents

    Solplanet inverter Table of Contents 1 Notes on this Manual ..............4 1.1 General Notes ..............4 1.2 Area of Validity ..............4 1.3 Target group ............... 4 1.4 Symbols used in this manual ..........5 2 Safety ..................6 2.1 Intended use ...............
  • Page 3 5.5 DC connection ..............31 5.6 Conmunication equipment connection ......39 6 Communication ............... 45 6.1 System monitoring via WLAN ........... 45 6.2 System monitoring via RS485 ........... 46 6.3 Active power control with Smart meter ......47 6.4 Active power control via demand response enabling device (DRED) ...................
  • Page 4 10 Technical data ............... 58 10.1 DC input data ..............58 10.2 AC output data ..............59 10.3 General data ..............62 10.4 Safety regulations ............63 10.5 Tools and torque ............. 64 10.6 Efficiency ................. 65 10.7 Power reduction .............. 71 11 Troubleshooting ..............

  • Page 5: Notes On This Manual

    1 Notes on this Manual 1.1 General Notes Solplanet inverter is a transformerless solar inverter with two MPP trackers. It converts the direct current (DC) from the photovoltaic(PV) arrays to grid-compliant alternating current (AC) and feeds it into the grid.

  • Page 6: Symbols Used In This Manual

    All persons installing inverters must be trained and experienced in general safety which must be observed when working on electrical equipment. Installation personnel should also be familiar with local requirements, rules and regulations. Qualified persons must have the following skills: •...

  • Page 7: Safety

    2. Solplanet inverter is suitable for indoor and outdoor use. 3. Solplanet inverter must only be operated with PV arrays (PV modules and cabling) of protection class II in accordance with IEC 61730, application class A. Do not connect any sources of energy other than PV modules to Solplanet inverter.
  • Page 8 4. PV modules with a high capacity to ground must only be used if their coupling capacity does not exceed 1.0μF. 5. When the PV modules are exposed to light, a DC voltage is supplied to this inverter. 6. When designing the PV power plants, ensure that the values comply with the permitted operating range of all components at all times.

  • Page 9: Important Safety Information

    2.2 Important safety information Danger to life due to electric shock when live components or cables are touched • All work on the inverter must only be carried out by qualified personnel who have read and fully understood all safety information contained in this manual.
  • Page 10 Danger to life due to high voltages of the PV array When exposed to sunlight, the PV array generates dangerous DC voltage which is present in the DC conductors and the live components of the inverter. Touching the DC conductors or the live components can lead to lethal electric shocks.
  • Page 11 Risk of injury due to electric shock Touching an ungrounded PV module or array frame can cause a lethal electric shock. • connect and ground the PV modules, array frame and electrically conductive surfaces so that there is continuous conduction. Risk of burns due to hot enclosure parts Some parts of the enclosure can get hot during operation.

  • Page 12: Symbols On The Label

    2.3 Symbols on the label Explanation Symbol Beware of a danger zone This symbol indicates that the product mus be additionally grounded if additional grounding or equipotential bonding is required at the installation site. Beware of high voltage and operating current The inverter operates at high voltage and current.

  • Page 13: Unpacking

    RCM Mark The product complies with the requirements of the applicable Australian standards. Capacitors discharge Before opening the covers, the inverter must be disconnected from the grid and PV array. Wait at least 5 minutes to allow the energy storage capacitors to fully discharge.

  • Page 14: Check For Transport Damage

    Please carefully check all of the components in the carton. If anything is missing, contact your dealer at once. 3.2 Check for transport damage Thoroughly inspect the packaging upon delivery. If you detect any damage to the packaging which indicates the inverter may have been damaged, inform the responsible shipping company immediately.

  • Page 15: Mounting

    4 Mounting 4.1 Requirements for mounting Danger to life due to fire or explosion Despite careful construction, electrical devices can cause fires. • Do not mount the inverter on flammable construction materials. • Do not mount the inverter in areas where flammable materials are stored.
  • Page 16 Direction Min. clearance (mm) above below sides Clearances for one inverter Clearances for multiple inverters 6. In order to avoid power reduction caused by overheating, do not mount the inverter in a location that allows long-term exposure to direct sunlight. 7.
  • Page 17 8. The mounting method, location and surface must be suitable for the inverter's weight and dimensions. 9. If mounted in a residential area, we recommend mounting the inverter on a solid surface. Plasterboard and similar materials are not recommended due to audible vibrations when in use. 10.

  • Page 18: Mounting The Inverter

    4.2 Mounting the inverter 1. Risk of injury when lifting the inverter, or if it is dropped 2. The weight of Solplanet inverter is max. 15.1 kg. There is risk of injury if the inverter is lifted incorrectly or dropped while being transported or when attaching it to or removing it from the wall bracket.
  • Page 19 Mounting procedure: Risk of injury due to damaged cables There may be power cables or other supply lines (e.g. gas or water) routed in the wall. • Ensure that no lines are laid in the wall which could be damaged when drilling holes. 1.
  • Page 20 1. Risk of injury due to the inverter falls down 2. If the depth and distance of the holes is not correct, the inverter maybe fall down from the wall. 3. •Before inserting the wall anchors, measure the depth and distance of the holes.
  • Page 21 is securely in place. 5. Attach the outer fins of heat sink to both sides of the wall bracket using M4 screws. (screw driver type: PH2, torque: 1.6 Nm). Dismante the inverter in reverse order. User Manual UM0006_ASW3000-10000-T_EN_V01_0221...

  • Page 22: Electrical Connection

    5 Electrical connection 5.1 Safety Danger to life due to high voltages of the PV array When exposed to sunlight, the PV array generates dangerous DC voltage which is present in the DC conductors and the live components of the inverter. Touching the DC conductors or the live components can lead to lethal electric shocks.

  • Page 23: Overview Of The Connection Area

    Risk of injury due to electric shock Touching an ungrounded PV module or array frame can cause a lethal electric shock. • connect and ground the PV modules, array frame and electrically conductive surfaces so that there is continuous conduction. 5.2 Overview of the connection area User Manual UM0006_ASW3000-10000-T_EN_V01_0221...

  • Page 24: Electrical Connection Diagram With A Separate Dc Isolator23

    Object Description DC input: plug-in connectors to connect the strings DC-switch: switch on or off for PV-load WiFi or GPRS (optional): transmit and receive GPRS or Wi-Fi signal RS485(optional) and Smart meter(optional): system monitoring AC connector: AC connection Additional grounding screw 5.3 Electrical connection diagram with a separate DC isolator Local standards or codes may require that a separate DC isolator should be installed next to the inverter.

  • Page 25: Ac Connection

    5.4 AC Connection 5.4.1 Conditions for the AC connection Cable Requirements The grid connection is made using 5 conductors (L1, L2, L3, N, and PE). We recommend the following requirements for stranded copper conductor. User Manual UM0006_ASW3000-10000-T_EN_V01_0221...
  • Page 26 Object Description Value 10…16 mm External diameter 2.5…6 mm Conductor cross-section Stripping length of the insulated Approx. 13 conductors Stripping length of the AC cable’s Approx.53 mm outer sheath The PE insulated conductor must be 2 mm longer than the L and N conductors Larger cross-sections should be used for longer leads.
  • Page 27 The product is equipped with an integrated universal current- sensitive residual current monitoring unit inside. The inverter will disconnect immediately from the mains power as soon as fault current with a value exceeding the limit. If an external residual-current device is required, install a residual-current device which trips at a residual current of 100 mA or higher.
  • Page 28 The maximum output current and the maximum output overcurrent protection of the inverters can be found in section 10 "Technical data". Grounding conductor monitoring The inverter is equipped with a grounding conductor monitoring device. This grounding conductor monitoring device detects when there is no grounding conductor connected and disconnects the inverter from the utility grid if this is the case.
  • Page 29 Safety in accordance with IEC 62109 when the grounding conductor monitoring is deactivated. In order to guarantee safety in accordance with IEC 62109 when the grounding conductor monitoring is deactivated, carry out one of the following measures: • Connect a copper-wire grounding conductor with a cross- section of at least 10 mm²...
  • Page 30 1. Switch off the AC circuit breaker and secure it against reconnection. Damage to the inverter due to wrong wiring If the phase line was connected to PE terminal, the inverter will not function properly. • Please ensure that the type of the conductors matches the signs of the terminals on the socket element.
  • Page 31 5.4.3 Additional grounding connection If additional grounding or equipotential bonding is required locally, you can connect additional grounding to the inverter. This prevents touch current if the grounding conductor on the AC connector fails. Procedure: 1. Align the terminal lug with protective conductor. 2.

  • Page 32: Dc Connection

    5.5 DC connection Danger to life due to high voltages in the inverter Touching the live components can lead to lethal electric shocks. • Before connecting the PV generator, ensure that the DC- switch is switched off and that it cannot be reactivated. •...
  • Page 33 DC connectors. 5.5.2 Assembling the DC connectors Danger to life due to high voltages on DC conductors When exposed to sunlight, the PV array generates dangerous DC voltage which is present in the DC conductors. Touching the DC conductors can lead to lethal electric shocks. •...
  • Page 34 2. Route the stripped cable all the way into the DC connector. Ensure that the stripped cable and the DC connector have the same polarity. 3. Press the clamping bracket down until it audibly snaps into place. 4. Ensure that the cable is correctly positioned: Result Measure •Proceed to step 5.
  • Page 35 •Remove the cable and go back to step 2. 5. Push the swivel nut up to the thread and tighten (torque: 2 Nm). 5.5.3 Disassembling the DC connectors Danger to life due to high voltages on DC conductors When exposed to sunlight, the PV array generates dangerous DC voltage which is present in the DC conductors.
  • Page 36 2. Unscrew the swivel nut. 3. To release the DC connector, insert a flat-blade screwdriver (blade width: 3.5 mm) into the side catch mechanism and lever open. 4. Carefully pull the DC connector apart. 5. Release the clamping bracket. To do so, insert a flat-blade screwdriver (blade width: 3.5 mm) into the clamping bracket and lever it open.
  • Page 37 5.5.4 Connecting the PV Array Destruction of the inverter due to overvoltage If the voltage of the strings exceeds the maximum DC input voltage of the inverter, it can be destroyed due to overvoltage. All warranty claims become void. • Do not connect strings with an open-circuit voltage greater than the maximum DC input voltage of the inverter.
  • Page 38 Damage to the inverter due to moisture and dust penetration Seal the unused DC inputs with sealing plugs so that moisture and dust cannot penetrate the Inverter. • Make sure all DC connectors are securely sealed. 7. Insert the sealing plugs provided into the DC plug connectors which are not used.
  • Page 39 • Insert the DC connectors with sealing plugs into the corresponding DC inputs on the inverter. User Manual UM0006_ASW3000-10000-T_EN_V01_0221...

  • Page 40: Conmunication Equipment Connection

    5.6 Conmunication equipment connection 5.6.1 Mounting the WiFi or GPRS Stick Damage to the inverter due to electrostatic discharge Internal components of the inverter can be irreparably damaged by electrostatic discharge. • Ground yourself before touching any component. When the system uses WiFi Stick or GPRS monitoring, WiFi Stick or GPRS Stick should be connected to C in the figure.
  • Page 41 5.6.2 Connect the network cable Danger to life due to electric shock when live components are touched. Disconnect the inverter from all voltage sources before connect the network cable. The inverter can be destroyed by wrong communication wiring • Internal components of the inverter can be irreparably damaged due to incorrect wiring between the power wire and signal wire.
  • Page 42 This inverter is equipped with RJ45 interfaces for multipoint communication. Pinout detail of the RJ45 interface on the inverter as follows: Pin1------- TX_RS485A Pin2------- TX_RS485B Pin3------- RX_RS485A Pin4-------GND Pin5-------GND Pin6------- RX_RS485B Pin7-------+7V Pin8-------+7V The network cable meeting the EIA/TIA 568A or 568B standard must be UV resistant if it is to be used outdoors.
  • Page 43 hole of the sealing ring against water ingress. 3. Current pin assignment for the network cable as per EIA/TIA 568 standard. 4. Route the cable into the inverter through the M25 cable gland, and pass through the magnetic ring, then connect it. 5.
  • Page 44 Disassemble the network cable in reverse order. 5.6.3 Connect the smart meter cable Danger to life due to electric shock when live components are touched. Disconnect the inverter from all voltage sources before connect the network cable. Procedure: 1． Remove the communication plate from the inverter. User Manual UM0006_ASW3000-10000-T_EN_V01_0221...
  • Page 45 2． Loosen the swivel nut of the cable gland on the communication plate, remove the sealing plug and lead the stripped cable through the cable gland and communication plate, press the latch of the smart meter terminal and insert the stripped cable accordingly. Make sure the cable is connected firmly.

  • Page 46: Communication

    6 Communication 6.1 System monitoring via WLAN User can monitor the inverter through the external WiFi stick with WLAN module. The connection diagram between the inverter and internet with a WLAN connection is shown as following two pictures, both two methods are available. Please note that each WiFi stick can only connect up to 5 inverters in method1.

  • Page 47: System Monitoring Via Rs485

    Mehod 2 ervery inverter with WiFi Stick, Every inverter can connect to internet. As shown above, we offer a remote monitoring platform called “AiSWEI cloud”. You can install the “AiSWEI cloud” application on a smart phone using Android or an iOS operating systems. You can also visit the website ( http://www.aisweicloud.com ) for system information.

  • Page 48: Active Power Control With Smart Meter

    Possible reason of communication failure due to closed port • The AiCom uses port #1883 and #80 communicates with the AiSWEIcloud. Both of these two ports must be opened, or else the AiCom cannot connect to the AiSWEIcloud and upload data. Possible reason of communication failure due to DHCP •...
  • Page 49 AiCom by RS485, and also the smart meter connect to the AiCom, the connection description please refer to the picture in section 6.2. You can vist the website www.solplanet.net for more information and download the user manual for the AiCom.

  • Page 50: Active Power Control Via Demand Response Enabling Device (Dred)

    The active power limit can be set on “AiSWEI cloud” application, the details can be found in the user manual for the AISWEI Cloud APP. 6.4 Active power control via demand response enabling device (DRED) DRMs application description • Only applicable to AS/NZS4777.2:2015. •...

  • Page 51: Communication With The Third Party Device

    AiCom. 6.5 Communication with the third party device Solplanet inverters can also connect with one third party device instead of Aicom or WiFi stick, the communication protocol is modbus. For more information, please contact the Service.

  • Page 52: Commissioning

    7 Commissioning 7.1 Electrical check Carry out the main electrical checks as follows: ① Check the PE connection with a multimeter: check that the inverter’s exposed metal surface has a grounding connection. Danger to life due to the presence of DC-Voltage Touching the live conductors can lead to lethal electric shocks.

  • Page 53: Mechanical Check

    Danger to life due to the presence of AC-Voltage Touching the live conductors can lead to lethal electric shocks. • Only touch the insulation of the AC cables. • Wear personal protective equipment such as insulating gloves. ⑤ Check the grid voltage: check that the grid voltage at the point of connection of the inverter is within the permitted range.

  • Page 54: Start-Up

    The Solplanet’s inverters comply with local safety code when leaving the factory. 7.4 Start-up After finishing the electrical and mechanical checks, switch on the miniature circuit-breaker and DC-switch in turn. Once the DC input voltage is sufficiently high and the grid-connection conditions are met, the inverter will start operation automatically.

  • Page 55: Display

    8 Display 8.1 Overview of the control panel The inverter is equipped with a display panel. You can view the running status. The seven LEDs are: LED5 LED4 LED3 LED2 LED1 LED6 LED7 8.2 LED indicators The inverter is equipped with three LED indicators including “green”, “yellow”...

  • Page 56: Led1~Led5 Green Power Indicator

    8.2.1. LED1~LED5 Green power indicator When the output power is 0 to 20% rated power, the LED1 bright. When the output power reaches 20% to 40% , LED1 and LED2 bright. When the output power reaches 40% to 60%, LED1 to LED3 bright, output power reaches 60% to 80% rated power LED1 to LED4 bright.
  • Page 57 1. Disconnect AC circuit breaker and secure against reconnection. 2. Disconnect the DC-switch and secure against reconnection. 3. Use a current probe to ensure that no current is present in the DC cables. Danger to life due to electric shock when touching exposed DC conductors or DC plug contacts if the DC connectors are damaged or loose The DC connectors can break or become damaged, become...
  • Page 58 3.5 mm) into one of the side and pull the DC connectors straight out. Do not pull on the cable. 5. Release and disconnect the AC connector. Rotate the socket element counter-clockwise to open. 6. Wait until all LEDs and the display have gone out. User Manual UM0006_ASW3000-10000-T_EN_V01_0221...

  • Page 59: Technical Data

    10 Technical data 10.1 DC input data Type 8000- 1000 6000 Max. PV modules 9000 1200 1500 ower(STC) Max. input voltage/ 1000V/630V Rated input voltage MPP voltage range 125～950 V Full load MPP 300～820 V 500～820V voltage range Intitial feed-in 150V voltage Min input voltage...

  • Page 60: Ac Output Data

    Strings per MPP tracker Overvoltage category in accordance with IEC60664-1 (1) When the DC input voltage is greater than 1020V, the inverter will alarm an error. (2) When the DC input voltage is lower than 995V, the inverter starts self-checking. 10.2 AC output data Type 3000...
  • Page 61 Operating range at AC power 45 Hz to 55Hz frequency 50 Operating range at AC power 55 Hz to 65Hz frequency 60 Max. 3×5. 3×6. 3×8. 3×9.1 3×13. 3×15. continuous output current Maximum output current 3×13A 3×21A under fault conditions Maximum output 3×16A...
  • Page 62 Harmonic distortion (THD) < 3% at the rated power Night-time <1 W power loss Standby power <12 W loss Overvoltage category in accordance with IEC60664- (1) The AC voltage range depends on the local safety standards and rules. (2) The AC frequency range depends on the local safety standards and rules.

  • Page 63: General Data

    10.3 General data Type 3000 4000 5000 6000 8000 1000 Net weight 13.5 KG 15.0 KG Dimensions(L×W 424×375×172 mm ×D) Mounting Indoor and Outdoor environment Mounting Wall bracket recommendation Operating temperature -25…+60℃ range Max. permissible value for relative 100% humidity ( non- condensing ) Max.

  • Page 64: Safety Regulations

    Topology Transformerless Feed-in phases Cooling concept Convection Fan cooling Display Communication WiFi /RS485 (optional) interfaces Radio technology WLAN 802.11 b / g / n WLAN 2.4 GHz with 2412MHz – 2472MHz Radio spectrum band Antenna gain 10.4 Safety regulations Type 3000 4000 5000...

  • Page 65: Tools And Torque

    EN61000-6-3 EMC emission EN61000-6-4 Utility interference EN61000-3-2, EN61000-3-3 10.5 Tools and torque Tools and torque required for installation and electrical connections. Tools, model Object Torque Torque Screws for the cover 3.0 Nm screwdriver, T25 Torque Screws for connecting 1.6Nm screwdriver, T20 the inverter and wall bracket Screw for second...

  • Page 66: Efficiency

    Sock Open end Swivel nut of M25 Hand-tight of 33 cable gland wren Open end Swivel nut of sunclix 2.0Nm of 15 connector Wire stripper Peel cable jackets Crimping tools Crimp power cables Hammer drill, Drill holes on the wall drill bit of Ø10 Rubber mallet Hammer wall plugs...
  • Page 67 refers to the standardized power output (P ). (According to ac,r EN 50524 (VDE 0126-13): 2008-10, cl. 4.5.3). Notes: Values are based on rated grid voltage, cos (phi) = 1 and an ambient temperature of 25℃. Efficiency curve ASW 10000-T ASW10000-T 100.00% 98.00%...
  • Page 68 ASW8000-T 100.00% 98.00% 96.00% 94.00% 92.00% 90.00% 88.00% 630V MPPT 86.00% 430V MPPT 84.00% 820V MPPT 82.00% 80.00% 5.00% 10.00% 20.00% 30.00% 50.00% 75.00% 100.00% Max. efficiency, η 98.34 % European weighted 97.99 % efficiency,η Max. MPPT efficiency, η 99.99% MPPT Efficiency curve ASW 6000-T User Manual UM0006_ASW3000-10000-T_EN_V01_0221...
  • Page 69 ASW6000-T 100.00% 98.00% 96.00% 94.00% 92.00% 90.00% 630V MPPT 88.00% 86.00% 350V MPPT 84.00% 800V MPPT 82.00% 80.00% 5.00% 10.00% 20.00% 30.00% 50.00% 70.00% 100.00% Max. efficiency, η 98.23 % European weighted 97.63 % efficiency,η Max. MPPT efficiency, η 99.99% MPPT Efficiency curve ASW 5000-T User Manual UM0006_ASW3000-10000-T_EN_V01_0221...
  • Page 70 ASW 5000-T 100.00% 98.00% 96.00% 94.00% 92.00% 90.00% 88.00% 630V MPPT 86.00% 84.00% 350V MPPT 82.00% 800V MPPT 80.00% 5.00% 10.00% 20.00% 30.00% 50.00% 70.00% 100.00% Max. efficiency, η 98.21 % European weighted efficiency, 97.48 % η Max. MPPT efficiency, η 99.99% MPPT Efficiency curve ASW 4000-T...
  • Page 71 ASW 4000-T 100.00% 98.00% 96.00% 94.00% 92.00% 90.00% 88.00% 630V MPPT 86.00% 350V MPPT 84.00% 800V MPPT 82.00% 80.00% 5.00% 10.00% 20.00% 30.00% 50.00% 70.00% 90.00% 100.00% Max. efficiency,η 98.21 % European weighted 97.23 % efficiency, η Max. MPPT efficiency, η 99.99% MPPT Efficiency curve ASW 3000-T...

  • Page 72: Power Reduction

    ASW 3000-T 99.00% 97.00% 95.00% 93.00% 91.00% 89.00% 87.00% 85.00% 630V MPPT 83.00% 350V MPPT 81.00% 79.00% 800V MPPT 77.00% 75.00% 5.00% 10.00% 20.00% 30.00% 50.00% 70.00% 100.00% Max. efficiency, η 98.20 % European weighted efficiency, η 96.55% Max. MPPT efficiency, η 99.99% MPPT 10.7 Power reduction...
  • Page 73 Power reduction with increased ambient temperature (ASW 3000-T) ASW3000-T 3500 3000 2500 2000 260Vmppt 1500 630Vmppt 800Vmppt 1000 20 25 30 35 40 45 50 55 60 65 70 75 Ambient temperture (℃) User Manual UM0006_ASW3000-10000-T_EN_V01_0221...
  • Page 74 Power reduction with increased ambient temperature (ASW 4000-T) ASW4000-T 4500 4000 3500 3000 2500 260Vmppt 2000 630Vmppt 1500 800Vmppt 1000 20 25 30 35 40 45 50 55 60 65 70 75 Ambient temperture (℃) User Manual UM0006_ASW3000-10000-T_EN_V01_0221...
  • Page 75 Power reduction with increased ambient temperature (ASW 5000-T) ASW5000-T 6000 5000 4000 260Vmppt 3000 630Vmppt 2000 800Vmppt 1000 20 25 30 35 40 45 50 55 60 65 70 75 Ambient temperture (℃) User Manual UM0006_ASW3000-10000-T_EN_V01_0221...
  • Page 76 Power reduction with increased ambient temperature (ASW 6000-T) ASW6000-T 7000 6000 5000 4000 260Vmppt 3000 630Vmppt 800Vmppt 2000 1000 20 25 30 35 40 45 50 55 60 65 70 75 Ambient temperture (℃) User Manual UM0006_ASW3000-10000-T_EN_V01_0221...
  • Page 77 Power reduction with increased ambient temperature (ASW 8000-T) ASW8000-T 9000 8000 7000 6000 5000 450Vmppt 4000 630Vmppt 3000 800Vmppt 2000 1000 20 25 30 35 40 45 50 55 60 65 70 75 Ambient temperture (℃) User Manual UM0006_ASW3000-10000-T_EN_V01_0221...
  • Page 78 Power reduction with increased ambient temperature (ASW 10000-T) ASW10000-T 12000 10000 8000 450Vmppt 6000 630Vmppt 4000 800Vmppt 2000 20 25 30 35 40 45 50 55 60 65 70 75 Ambient temperture (℃) User Manual UM0006_ASW3000-10000-T_EN_V01_0221...

  • Page 79: Troubleshooting

    11 Troubleshooting When the PV system does not operate normally, we recommend the following solutions for quick troubleshooting. If an error occurs, the red LED will light up. There will have “Event Messages" display in the monitor tools. The corresponding corrective measures are as follows: Error Object...
  • Page 80 • Check the fuse and the triggering of the circuit breaker in the distribution box. • Check the grid voltage, grid usability. • Check the AC cable, grid connection on the inverter. If this fault is still being shown, contact the service.
  • Page 81 service. • Check whether the airflow to the heat sink is obstructed. • Check whether the ambient temperature around the inverter is too high. • Check whether the open circuit voltage of each photovoltaic group is ≥1020V. If the open circuit voltage of each pv group is less than 995V and this fault still exists, please contact the service personnel.

  • Page 82: Maintenance

    Permanent If this fault is still being displayed, contact Fault the service. Warning Warning message code PV1 input over voltage PV2 input over voltage PV1 input over current-software PV1 input over current-hardware PV2 input over current-software PV2 input over current-hardware BUS over voltage-software BUS voltage unbalance(for three phase inverter) Grid voltage over instant...

  • Page 83: Cleaning The Contacts Of The Dc-Switch

    Normally, the inverter needs no maintenance or calibration. Regularly inspect the inverter and the cables for visible damage. Disconnect the inverter from all power sources before cleaning. Clean the housing, cover and display with a soft cloth. Ensure the heatsink at the rear of the inverter cover is not covered. 12.1 Cleaning the contacts of the DC-switch Clean the contacts of the DC-switch once per year.

  • Page 84: Eu Declaration Of Conformity

    The entire EU Declaration of Conformity can be found at www.solplanet.net. 15 Warranty User Manual UM0006_ASW3000-10000-T_EN_V01_0221...

  • Page 85: Contact

    The factory warranty card is enclosed with the package, please keep well the factory warranty card. Warranty terms and conditions can be downloaded at www.solplanet.net, if required. When the customer needs warranty service during the warranty period, the customer must provide a copy of the invoice, factory warranty card, and ensure the type label of the inverter is legible.
  • Page 86 AISWEI Pty Ltd. Hotline: +61 390 988 673 Service email: service.au@aiswei-tech.com Add.: Level 40, 140 William Street, Melbourne VIC 3000, Australia AISWEI B.V. Hotline: +31 208 004 844 (Netherlands) +48 134 926 109 (Poland) Service email: service.eu@aiswei-tech.com Add.: Muiderstraat 9/G, Amsterdam 1011 PZ , the Netherlands Rest of the world Service email: service.row@aiswei-tech.com...
