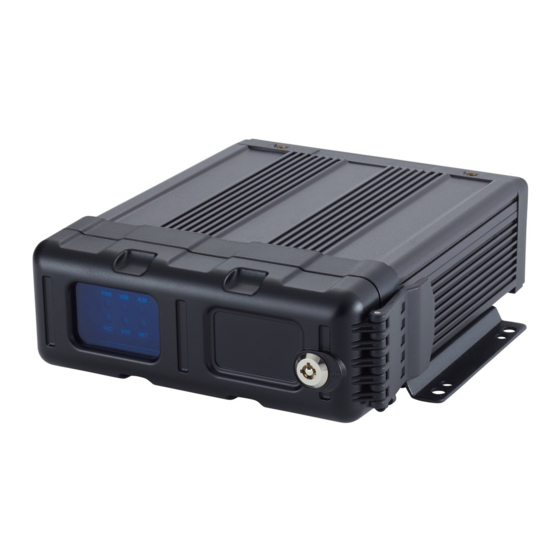

- Page 1 User Manual MOBILE DVR RANGE EchoMaster DVR Range Installation Manual +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
-
Page 2: Table Of Contents
- Log Out Page Basic Setup Page - Registered Info Page Page Device Info Page - Vehicle Info Page - Driver Info - Time Setup Page Page General Page - Time sync Page - DST +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com... - Page 3 - Image Setup Page - Margins Page - Startup screen Page - Auto Loop Page - Live OSD - Record Page Page - General Page - System Page - Overwrite Page - Lock Duration Page - Pre-recording +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 4 Page 32 - Navigation Page 32 Page 32 - Mileage Page 32 - Source Page 32 - Total Page 32 - Base Value Page 32 - Operation - Flow Limit Page 32 Page 32 - Unit +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 5 Page 37 - Storage Page 37 - Reset Page 37 Offline Video Playback Page 38 Specification Page 38 Page 38 - Non-Connected Range Page 39 - Connected Range References Page 42 - Storage Capacity Page 42 +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
-
Page 6: Introduction
Introduction Thank you for purchasing your EchoMaster Digital Video Recorder (DVR). EchoMaster DVR’s are specifically designed for vehicle video surveillance and monitoring. They are able to provide high resolution video recording of connected cameras, GPS location information, trigger alerts and vehicle data (Model Dependant). - Page 7 HDD caddy USB dongle inserted Power On Alarm Indicator HDD caddy lock Recording in progress Network connected Operation Error USB Port DVR-350 Range HDD caddy SIM and SD card slots Status LED panel USB port +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 8 Front Panel Layouts - continued DVR-380 Range HDD caddy USB Status Power Record Status Network Operation Error Alarm Indicator USB port DVR-580 Range HDD caddy SIM and SD card slots USB port AV output Status LED panel +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
-
Page 9: Dimensions
User Manual MOBILE DVR RANGE Dimensions DVR-50 167.3 157.8 DVR-150 19.5 150.4 +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com... - Page 10 User Manual MOBILE DVR RANGE Dimensions - continued DVR-350 255.3 DVR-380 41.5 DVR-580 +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
-
Page 11: Installation
GSM/LTE Antenna AHD-1 AHD-2 AHD-3 +12V (RED) (YELLOW) (BLACK) POWER Sensor & Serial A/V OUT AHD-4 DVR-50-TH-CAB (optional) Camera CH4 in: A/V Out Up to 1020p AHD resolution IPC Camera in: Up to 1080p resolution +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com... - Page 12 Up to 1080p AHD resolution Up to 1020p AHD resolution GPS Antenna GSM/LTE Antenna +12V (RED) (YELLOW) (BLACK) DVR-50-TH-CAB (optional) Camera CH4 in: A/V Out Up to 1080p AHD resolution IPC Camera in: Up to 1080p resolution +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 13 IPC Camera in: Up to 1080 resolution DVR-FPBOX GSM/LTE Antenna GPS Antenna (optional) DVR-350-SR-CAB (optional) DVR-350-TH-CAB (optional) Video Output DVR-UPS (optional) MON-7010-TS Kit +12V (optional) (red) (black) (yellow) Reverse camera input Reverse trigger input Microphone +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 14 Camera in: Up to 1080 AHD resolution MON-7010 (optional) GSM/LTE Antenna DVR-FPBOX (optional) DVR-380-TH-CAB (optional) GPS Antenna Reverse Camera Input Reverse Trigger Input DVR-380-SR-CAB (optional) Microphone VGA Out (optional) +12V (RED) IGN (YELLOW) GND (BLACK) +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 15 (optional) Ampli er Output DVR-FPBOX (optional) DVR-UPS IPC Camera in: (optional) Up to 1080 resolution +12V (black) (red) IPC-PON-4 (yellow) (optional) MON-7010TS Kit (optional) +12V (black) (red) (yellow) Reverse camera input Reverse trigger input Microphone +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
-
Page 16: Dvr-50-Th-Cab - For The Dvr-50 & 150 Range (Optional)
RS232: Can be used to send and receive data from external devices. The external mic input can be used to record separate audio to that of the mic normally housed in the cameras. +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com... -
Page 17: Dvr-350-Th-Cab - For The Dvr-350 Range (Optional)
Can be used to record speed information of the vehicle onto the recording captured on the DVR-350. It should be connected to the analogue speed output wire on the vehicle (often found behind the radio or instrument cluster). +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com... -
Page 18: Dvr-350-Sr-Cab - For The Dvr-350 Range (Optional)
RS 485B -2 (Green/Blue) RS 485A -2 (White/Yellow) RS 485B -2 (Green/Yellow) RS232: Can be used to send and receive data from external devices. RS485: Can be used to send and receive data from external devices. +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com... -
Page 19: Dvr-380-Th-Cab - For The Dvr-380 Range (Optional)
Can be used to record speed information of the vehicle onto the recording captured on the DVR-380. It should be connected to the analogue speed output wire on the vehicle (often found behind the radio or instrument cluster). +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com... -
Page 20: Dvr-580-Th-Cab - For The Dvr-580 Range (Optional)
DVR-350. It should be connected to the analogue speed output wire on the vehicle (often found behind the radio or instrument cluster). RS232: Can be used to send and receive data from external devices. RS485: Can be used to send and receive data from external devices. +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com... -
Page 21: Initial Setup
Once initial setup is complete, if connected unplug the mouse, close and lock the door and you are ready to start using the product. Note: It is always recommended to carry out a format on storage media using the internal format function of the DVR before first use. (See page 37) +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com... -
Page 22: Menu Function
The BIZ menu allows you to read text messages sent to the device via the mobile app. All configurable options are accessed by selecting the icon to bring up the home menu. +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com... -
Page 23: Home Menu
.264, .265 or .avi format of which may be more easily read by various devices. When selecting to export a file you are given the option to choose the start and end time for export. +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com... -
Page 24: Log Search
In this menu all configurable options for the DVR can be set. Note: Please ensure that you click save in each screen after making any changes otherwise these changes may not be saved. Log Out Click this to log out the current user. +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com... -
Page 25: Basic Setup
Timer Allows a specific power up and power down time to be set. Light off time Sets a timer for the lighting on the MON-7010-TS to turn off. +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com... - Page 26 Typically only 1 server config is required and is set by the service administrator. Any saved server connection that is to be utilised must have the ON check box selected. +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 27 DVR to the Connected platform. You can check the module being used and the Server address here in this menu. NOTE: A subscription is required for access to the EchoMaster Connected platform. +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 28 (typically reserved for Wi-Fi enabled units) Other Set-Up This allows the ‘Text to Speech’ and MON-7010-TS volume levels to be set. +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 29 You are able to configure what information is displayed on the live view by ticking the required box. Note: Not all options are available on all devices and some options require additional add on accessories. +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 30 Choose whether files are encoded at variable bit rate (VBR) or constant bit rate (CBR). You are able to copy the settings from one channel to all others, or selected channels by using the copy function. +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 31 There will now be an IP address and port number displayed on the main IPC setup screen. Click save and the camera image should now be able to be viewed in the live view. This feature is reserved for future use. +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 32 Clicking clear will reset the mileage counter to zero. Flow Limit This allows you to set a maximum data transfer speed for live view etc. Unit Allows you to change the units for temperature etc. +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 33 Use the option page to configure snapshot criteria. u Channel Number u Check to enable u Resolution and Quality settings u Upload via Connected Server (subscription and connected device required) or FTP u Snapshot quantity and interval time between snapshots +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 34 Post recording will continue to record locked video for the set time after the alarm has been cancelled. It is possible to copy the settings from 1 alarm to any or all of the others using the copy feature. +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 35 The alarm snap feature is not functional on this product. Post recording will continue to record locked video for the set time after the alarm has been cancelled. +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 36 ACC Alarm tab Electricfence By Selecting this feature it will an alarm to be triggered when the preset area has been configured using the connected platform. See Connected Platform manual for additional detail. +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 37 This option will display all connected storage mediums and also gives you the option to format each device individually. Reset You are able to reset all parameters to default factory settings using the reset feature in this menu. You can also reboot the system from this location. +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 38 To view the stored video content from the device, either remove the storage medium or download the video files to a external storage media i.e. USB memory stick. The files are accessible for playback by using the EchoMaster Connected application. This is downloadable from the following location https://bit.ly/3bVFhcN Please refer to the separate Platform user guide for additional detail on using the software.
- Page 39 206.0 x 170.0 x 70.5 Physical Characteristics Weight 0.83 KG 0.83 KG +44(0)1420 487110 1.24 KG Operating Temp -40ºC + 70ºC -40ºC - +70ºC -40ºC ~+70ºC (with heating and no HDD) Environment Operating Humidity 8%~90%(No Condense) 8%~90%(No Condense) 8%~90%(No Condense) echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 40 206.0 x 170.0 x 70.5 Physical Characteristics Weight 1.24 KG 1.24 KG +44(0)1420 487110 Operating Temp -40ºC ~+70ºC (with heating and no HDD) -40ºC ~+70ºC (with heating and no HDD) Environment Operating Humidity 8%~90%(No Condense) 8%~90% (No Condense) echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 41 295 x 222 x 89mm Physical Characteristics Weight 2.2KG (not including HDD) 2.6KG Operating Temp -40ºC ~+70ºC (with Heating and NO HDD) -40ºC- +70ºC (with Heater) or -10ºC- +70ºC +44(0)1420 487110 Environment Operating Humidity 8%-95% (No Condensation) 8%~90% echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 42 316 MB 281 MB NUMBERS GIVEN ARE AS AN ESTIMATE PER CHANNEL, BASED ON 1 HOUR OF RECORDING TIME Based on PAL format and 25 FPS. NTSC format will increase required capacity by roughly 10% +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 43 User Manual MOBILE DVR RANGE +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com...
- Page 44 +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchoMaster-eu.com EchoMaster is a brand of AAMP Global Woolmer Way, Bordon, Hampshire, GU35 9QE V2.1 aampglobal-eu.com...
