Product Guide

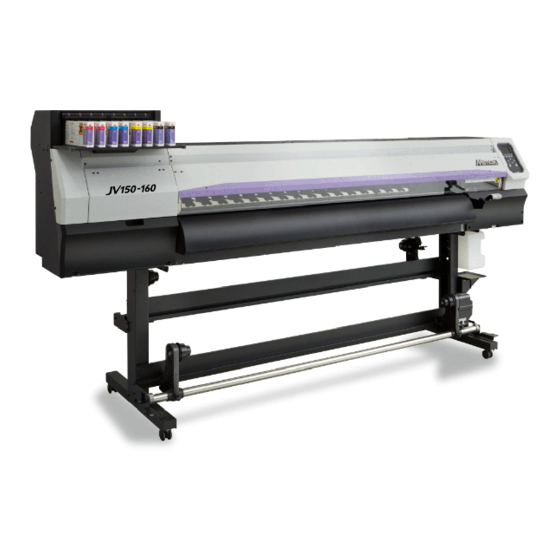

Affordable, high-spec, high-performance printer
Engineering excellence and creative innovation
The information in this document is subject to change without notice.
07-03-2019
Mimaki Europe B.V.
V1.61EU
Sign Graphics Products

Advertisement

loading
Need help?

Need help?

Do you have a question about the JV150-130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MIMAKI JV150-130

Summary of Contents for MIMAKI JV150-130

  • Page 1 Product Guide Affordable, high-spec, high-performance printer Engineering excellence and creative innovation The information in this document is subject to change without notice. 07-03-2019 Mimaki Europe B.V. V1.61EU Sign Graphics Products...

  • Page 2: Terms Of Use

    Mimaki Europe B.V. • Contents and technical explanations in this presentation are based on the test results achieved at Mimaki at the time of testing and are not a guarantee for performance. Substrates should be tested beforehand. •...
  • Page 3 High quality printing by Mimaki’s original technologies • Smooth image quality by waveform control and precise dot placement technology • Mimaki’s proprietary 3-way intelligent heater for optimization of the dot gain • MAPS3 eliminates banding and delivers smooth print densities •...
  • Page 4 More applications with Orange and Light Black ink • Printing with orange ink gives a larger color gamut for printing more corporate colors • Accurate gray scale printing with light black ink without color shifts Mimaki Europe B.V. Sign Graphics Products...

  • Page 5: System Configuration

    Compatible OS: Windows Vista(32/64bit) Windows 7(32/64bit) Options Windows 8(32/64bit) Windows 10(32/64bit) AMF Kit Monitor: 1366x768 MBIS3 Drying Fan Works also with: Air exhaust unit Anti-static sheet Additional Pinch roller 8x Eco-cartridge for BS3/BS4 inks Mimaki Europe B.V. Sign Graphics Products...
  • Page 6 - 600ml Ink pack - 440ml cartridge - 2L Ink pack (for MBIS3) - 2L Ink pack (for MBIS3) (with Eco-cartridge) - 2L Ink pack (for MBIS3) capacity - 2L Ink pack (for MBIS3) Mimaki Europe B.V. Sign Graphics Products...
  • Page 7 Prints both high quality mode and high speed mode (3 drop sizes are automatically selected depending on print modes) 1-head:1440-nozzle (180-nozzle x 8-lines) 1 2 3 4 5 6 7 8 Nozzle row length Approx.25.4mm (1 inch) Nozzle width Approx.31mm (1.2 inch) Mimaki Europe B.V. Sign Graphics Products...
  • Page 8 4ｐｌ 4ｐｌ Low density due to a gap between the dots High density with no gap between the dots ↓ ↓ Not suitable for high speed mode (low resolution) Suitable for High speed mode Mimaki Europe B.V. Sign Graphics Products...
  • Page 9 The print modes shown in this document are the performance of the printer itself. The profiles are created selectively depending on the media type. When the profile is not available, use MPM-3 to create the profile for the media. Mimaki Europe B.V. Sign Graphics Products...
  • Page 10 The print modes shown in this document are the performance of the printer itself. The profiles are created selectively depending on the media type. When the profile is not available, use MPM-3 to create the profile for the media. Mimaki Europe B.V. Sign Graphics Products...
  • Page 11 The print modes shown in this document are the performance of the printer itself. The profiles are created selectively depending on the media type. When the profile is not available, use MPM-3 to create the profile for the media. Mimaki Europe B.V. Sign Graphics Products...
  • Page 12 The print modes shown in this document are the performance of the printer itself. The profiles are created selectively depending on the media type. When the profile is not available, use MPM-3 to create the profile for the media. Mimaki Europe B.V. Sign Graphics Products...
  • Page 13 The print modes shown in this document are the performance of the printer itself. The profiles are created selectively depending on the media type. When the profile is not available, use MPM-3 to create the profile for the media. Mimaki Europe B.V. Sign Graphics Products...
  • Page 14 • Grainy results can be seen at the low • Reflection density is higher at the gradation areas Sb53-DK • low gradation part More smoke generation during heat transfer, compared to the K ink Mimaki Europe B.V. Sign Graphics Products...
  • Page 15 Sb54, 4C printing speeds KT,BLT,MT,YT Super Draft 50,5 360x360,1P,Bi Draft 36,7 31,9 540x360,2P,Bi High Speed① 21,8 540x360,3P,Bi High Speed② 19,5 17,0 540x720,4P,Bi Standard① 13,9 720x720,4P,Bi Standard② 11,1 720x1080,6P,Bi High Quality 720x1440,8P,Bi JV150-160 JV150-130 Super Smooth 720x1440,10P,Bi m²/h Mimaki Europe B.V. Sign Graphics Products...
  • Page 16 Covering approx. 94.8% of the PANTONE coated color chart, 7% more than only with 4C • The large color gamut makes it easy to reproduce corporate colors, etc. M C Y Lc Lm Lk Or Mimaki Europe B.V. Sign Graphics Products...
  • Page 17 Gamut comparison Comparing print results CMYKLcLm CMYKLcLmLk+Or -120 -100 -80 100 120 Less bright orange High reproducibility color with brighter orange CMYKLcLmLkOr color CMYK -100 Colors of PANTONE PANTONE近似色 -120 *PANTONE solid chips coated(1085 colors) Mimaki Europe B.V. Sign Graphics Products...
  • Page 18 Smooth color balance without color shifting, reproducing high quality, smooth gray output CMYKLcLm CMYKLcLmLkOr CMYKLcLm CMYKLcLmLkOr • Reddish gray • • Reddish gray • Smooth skin tone No color shift and • smooth gradation Skin with grainy appearance Mimaki Europe B.V. Sign Graphics Products...
  • Page 19 High accuracy dot placement, jetting ink drops in straight lines, with almost perfect round dots • Generating less mist, printing clear and sharp letters, lines, edges, and etc. • Waveform is optimized to reduce the risk of missing nozzles Mimaki Europe B.V. Sign Graphics Products...
  • Page 20 Ink dots overlap and no accurate dot placement Ink dots do not overlap and gives ↓ an accurate dot placement Grainy appearance and uneven density ↓ No grainy appearance Mimaki Europe B.V. Sign Graphics Products...
  • Page 21 • This allows printing in not only high resolution printing for high quality, but also high speed & high density printing for high productivity! Variable dot Normal dot Mimaki Europe B.V. Sign Graphics Products...
  • Page 22 Controls drop size by 3-way Intelligent Heater patent No. heating up media. Japan 4889059 Heater cover 8.444.262 Print-head Print- heater Post-heater China ZL 200910222559.8 Pinch roller Pre-heater Post-heater to ensures faster drying Grid roller Mimaki Europe B.V. Sign Graphics Products...
  • Page 23 Stunning quality • MAPS3 (Mimaki Advanced Pass System 3) • MAPS3 prints passes in gradation-like tone, by dispersing ink drops between the passes, which reduces banding, uneven drying ink, and bidirectional stripes • MAPS3 works in the higher pass modes of each resolution...

  • Page 24: Continuous Operation

    • When clogged nozzles are detected, the cleaning is started automatically • When the clogged nozzle is not recovered by cleaning, the Nozzle Recovery System works automatically, and printing starts Mimaki Europe B.V. Sign Graphics Products...
  • Page 25 When the number of missing nozzles is higher than the number in the setup Warning (Standby) Nozzle check duration: 50sec./check Nozzle check ink consumption: 192 cc/year *Operating Condition: One check/hour x 10-hour operation/day x 240-day Mimaki Europe B.V. Sign Graphics Products...
  • Page 26 Replaces missing nozzles by working nozzles in other passes • No need for direct service intervention • Makes printing with the same quality possible, even if nozzles are missing Continuous printing by NRS Continuous Operation Down Time Mimaki Europe B.V. Sign Graphics Products...
  • Page 27 • NRS does not change the printing speed • NRS does not work when: • Printing in low pass modes • Printing in some modes with MAPS3 • The position of the nozzle is not correct Mimaki Europe B.V. Sign Graphics Products...
  • Page 28 • No pollution on the print head caused by ink residue from the wiper • Easier daily maintenance as the wiper is cleaned automatically 1. Washing liquid Wiper cleaner 2. Wipe out Mimaki Europe B.V. Sign Graphics Products...
  • Page 29 Event mail • Status of the printer can be sent from the printer to a mobile phone via the internet • For remote status indication of the printer Internet Print start/finish error/warning Email receiving device Mimaki Europe B.V. Sign Graphics Products...
  • Page 30 • No waste of time and media or ink • Not available with 6C+WW and 8C ink sets • Optional MBIS3 (Mimaki Bulk Ink System 3) • Large volume 2L ink packs are placed directly on the ink station •...
  • Page 31 The diameter of the taken-up media is measured by a sensor • This keeps the tension of the media constant Take-up roll switch for manual operation press the button to roll up the media. Mimaki Europe B.V. Sign Graphics Products...
  • Page 32 At front side • Adjustable pinch rollers • Adjust the number of pinch rollers to be used, depending on the width and type of media Pushing down the pinch roller Lifting-up the pinch roller Mimaki Europe B.V. Sign Graphics Products...
  • Page 33 Easy to see from a distance Status LED Various information is Blinking in Blue: Normal operation displayed in a graphical Blinking in Red: Needs attention manner, such as media width, heater temperature and remaining ink Mimaki Europe B.V. Sign Graphics Products...
  • Page 34 Stable printing • Lift up block • Lift up blocks can be attached to the casters of the printer • They prevent the shaking of the machine while printing with lift up block Mimaki Europe B.V. Sign Graphics Products...
  • Page 35 The program update and the profile download can be Frequently used setting can be done through the web easily registered as “My Favorite”. Up to 30 settings can be registered. Mimaki Europe B.V. Sign Graphics Products...

  • Page 36: Input Profile

    Input profile “WideMimakiNaturalVivid” is available for reproducing brilliant color for Orange and Light Black ink set. WideMimakiCMYK WideMimakiNaturalVivid WideMImaki2013forSign ・Mimaki’s standard input profile ・Reproduces brilliant color ・High intensity input profile and natural skin tone for specialized for JV400LX (Or,G) (C)JV150/300 (Or,Lk) Mimaki Europe B.V.
  • Page 37 OPT-J0360 for JV150-130 • OPT-J0359 for JV150-160 • Cannot be installed if the Air exhaust unit option is used • MBIS3 – Mimaki Bulk Ink System3 • OPT-J0364 for JV150 series • Anti-static sheet, recommended option! • OPT-J0358 for JV150-130 •...
  • Page 38 Options • Additional Pinch roller • OPT-J0376 for JV150-130 • OPT-J0362 for JV150-160 • Drying Fan • Extra power supply needed. 100-220V, 1,4A • OPT-J0352 for JV150-130 • OPT-J0351 for JV150-160 • Air exhaust unit • Works only in combination with the Drying fan •...
  • Page 39 4. Ink odor. Please use the machine in a well-ventilated environment 5. Do not install in the place where using a photograph fixer or the place with acid steam like acetic acid, hydrochloric acid *Installation space for PC is required separately Mimaki Europe B.V. Sign Graphics Products...

  • Page 40: Specifications

    1x (100V) Max 1440W / 1x (220V)Max 1920W Applicable standards VCCI class A / FCC class A / UL60950-1ETL / CE Marking(EMC, Low Voltage and Machinery) CB report / RoHS / REACH / CCC(pending) / Energy Star / RCM Mimaki Europe B.V. Sign Graphics Products...
  • Page 41 What do I need to pay attention to, when using an An optional Relay Box is needed to make the external heater work in external heater? conjunction with the printer. Mimaki Europe B.V. Sign Graphics Products...
  • Page 42 APPENDIX Mimaki Europe B.V. Sign Graphics Products...
  • Page 43 Sb53 Dye sublimation ink BL, M, Y, K, DK, Lbl, Lm SB54-x-44 Sb54 Dye sublimation ink 440ml Cartridge BLT, MT, YT, KT, LbT, LmT SB54-x-2L Sb54 Dye sublimation ink BLT, MT, YT, KT, LbT, LmT Mimaki Europe B.V. Sign Graphics Products...
  • Page 44 Washing liquid 03 Maintenance kit 200ml Bottle maintenance. Aqua maintenance liquid. For daily SPC-0137 Cleaning-Solution Bottle A29 100ml Bottle maintenance. Mild solvent maintenance liquid. For daily SPC-0369 Cleaning solution MS2/ES3/HS kit200 200ml Bottle maintenance. Mimaki Europe B.V. Sign Graphics Products...
  • Page 45 1 set shaft×10pcs, O-ring×20pcs SPA-0248 EXHAUST BOX 3pcs SPA-0249 EXHAUST BOX FILTER 9pcs SPA-0250 Rubber stopper for 2L case 8pcs SPA-0257 CP PAD SET 2 1 set SPC-0625 MALE CONNECTOR ABSORBENT FOR MBIS 100 sheets Mimaki Europe B.V. Sign Graphics Products...

  • Page 46: Optional Items

    ECO CASE 4 4pcs OPT-J0362 ADDITIONAL PR-160 OPT-J0376 ADDITIONAL PR-130 OPT-J0364 MBIS3 MIMAKI BULK INK SYSTEM Large ink bulk system SMALL RELAY BOX For connection of external heater OPT-J0370 *1. MPM3 version 3.1.2 or above *2. MTCE version 1.2.12 or above Mimaki Europe B.V.
  • Page 47 Certificates • OEKO-TEX® ECO-PASSPORT Certification for textile inks • Mimaki ink Sb53 and Sb54 are OEKO-TEX® certified • ECO PASSPORT by OEKO-TEX® is a mechanism by which textile chemical suppliers demonstrate that their products are suitable to print skin-friendly clothing and other textiles for end users •...
  • Page 48 Thank You! MIMAKI EUROPE Mimaki Europe B.V. Sign Graphics Products...

This manual is also suitable for:

Jv150-160
