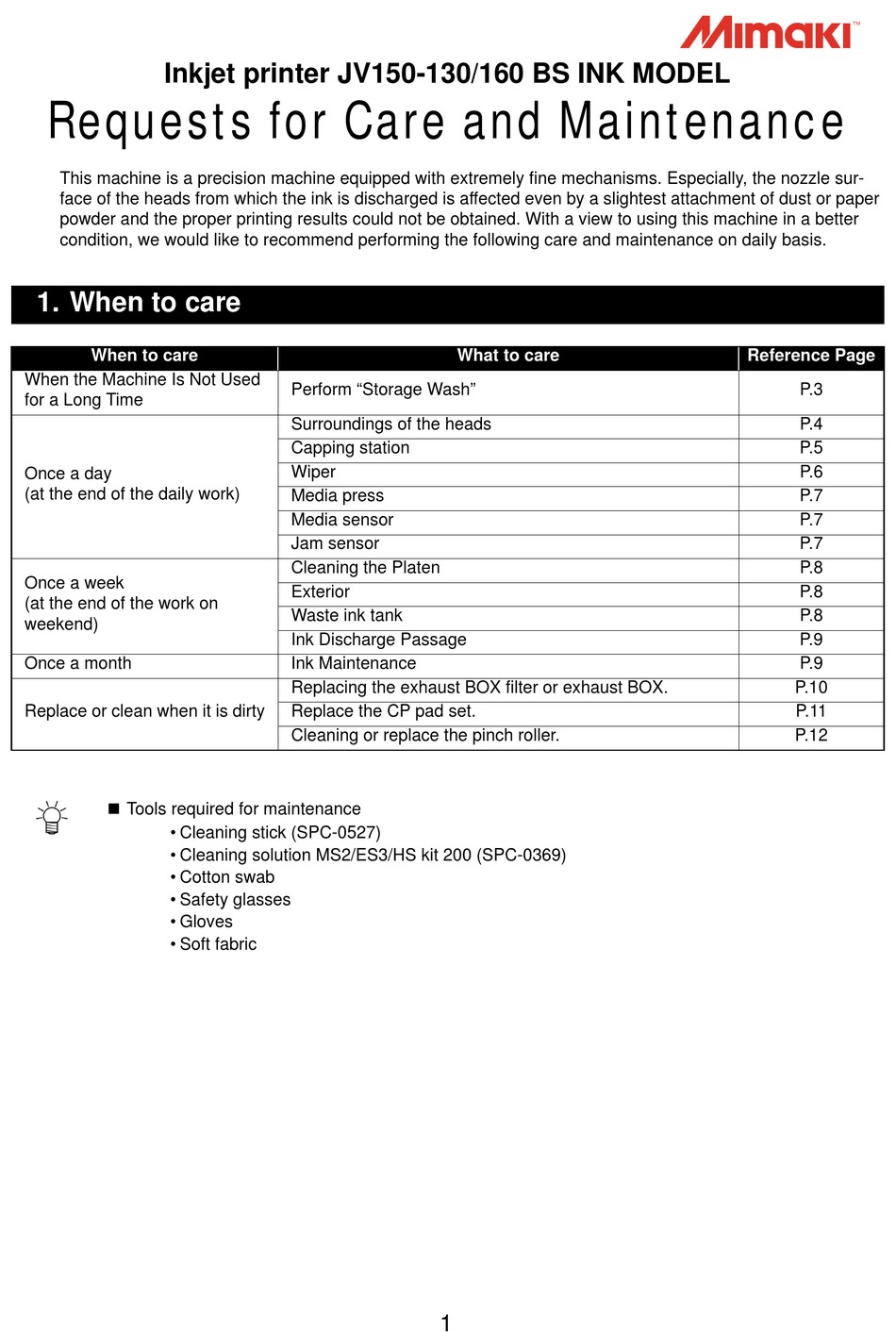

Inkjet printer JV150-130/160 BS INK MODEL
Requests for Care and Maintenance
This machine is a precision machine equipped with extremely fine mechanisms. Especially, the nozzle sur-
face of the heads from which the ink is discharged is affected even by a slightest attachment of dust or paper
powder and the proper printing results could not be obtained. With a view to using this machine in a better
condition, we would like to recommend performing the following care and maintenance on daily basis.
1. When to care
When to care
When the Machine Is Not Used
for a Long Time
Once a day
(at the end of the daily work)
Once a week
(at the end of the work on
weekend)
Once a month
Replace or clean when it is dirty
Tools required for maintenance
• Cleaning stick (SPC-0527)
• Cleaning solution MS2/ES3/HS kit 200 (SPC-0369)
• Cotton swab
• Safety glasses
• Gloves
• Soft fabric
What to care
Perform "Storage Wash"
Surroundings of the heads
Capping station
Wiper
Media press
Media sensor
Jam sensor
Cleaning the Platen
Exterior
Waste ink tank
Ink Discharge Passage
Ink Maintenance
Replacing the exhaust BOX filter or exhaust BOX.
Replace the CP pad set.
Cleaning or replace the pinch roller.
1
Reference Page
P.3
P.4
P.5
P.6
P.7
P.7
P.7
P.8
P.8
P.8
P.9
P.9
P.10
P.11
P.12
Advertisement
Table of Contents
Related Manuals for MIMAKI JV150-160
Summary of Contents for MIMAKI JV150-160
- Page 1 Inkjet printer JV150-130/160 BS INK MODEL Requests for Care and Maintenance This machine is a precision machine equipped with extremely fine mechanisms. Especially, the nozzle sur- face of the heads from which the ink is discharged is affected even by a slightest attachment of dust or paper powder and the proper printing results could not be obtained.
-
Page 2: Safety Precautions
2. Safety Precautions • Pay close attention to ventilation and be sure to wear the included safety glasses and gloves provided, and the filtering face mask, when handling ink, maintenance cleaning solution, waste ink, or other solutions used in this machine. Failure to do so may result in ink or other liquids splashing and coming into contact with the skin, eyes, or mouth. -
Page 3: Installation Environment
3. Installation environment • Use this printer as much as possible in a dust-free environment. Fans and air-blowers could cause the dust scattering. • The using environment of this printer is from 20 to 30°C (68°F to 86°F) in temperature and from 35 to 65 % in relative humidity. -
Page 4: Daily Care
7. Daily care • When possible, use the cleaning stick (SPC-0527) for cleaning around the head/ capping station/ wiper. Using the other cotton bud may attach lint, then it may damage the machine. • Be sure to perform maintenance for the ink cap and the wiper of capping station every day. If you leave it dirty, dirt may adhere to the nozzle surface, or, dust and dry ink may be rubbed against the nozzle. - Page 5 (2) Capping Station (“Cleaning around the wiper” Chapter 4 of the Operation Manual) The surrounding area of the cap is also liable to be stained by the dust and ink. It is recommended to clean the head frequently using the cleaning liquid for maintenance suitable for the ink used to avoid the stains on the head.
- Page 6 (3) Wiper (“Cleaning around the wiper” Chapter 4 of the Operation Manual) On the wiper, the ink, dust and paper powder are liable to accumulate. Check the state of the wiper and if it is stained, clean it. • Cleaning solution MS2/ES3/HS kit 200 (SPC-0369) Move the carriage and open the right maintenance cover.
- Page 7 (4) Media press (“Cleaning the Media Press” Chapter 4 of the Operation Manual) When the cut dust of the media and other dusts accumulate between the media holder and the platen, it could cause the risks that the transfer of the media could not be performed properly or such dusts stick to the noz- zles and this could interfere the proper printings.
-
Page 8: Periodically Care (Once A Week)
8. Periodically care (Once a week) Users are advised to perform the maintenance works described below once a week so that the printer will keep its high performance and accuracy over an extended period of its life. (1) Platen (“Cleaning the Platen” Chapter 4 of the Operation Manual) •... - Page 9 (4) Ink Discharge Passage (“Washing the Ink Discharge Passage” Chapter 4 of the Oper- ation Manual) Wash the ink discharge passage (DISWAY WASH) regularly(about once a week) to prevent the head nozzles from clogging due to ink coagulation inside the passage. •...
-
Page 10: Periodically Care (Once In A Week Or Two Weeks)
10. Periodically care (once in a week or two weeks) (1) Replacing the exhaust BOX filter or exhaust BOX. Replace the exhaust BOX filter (product number: SPA - 0249) or the exhaust BOX (product number: SPA - 0248) when it is dirty with ink. Remove the tabs (2 locations) on the exhaust BOX. - Page 11 (2) Replace the CP pad set. Replace CP pad set (SPA-0257) when it is dirty. Push up the tabs (2places) of CP pad Assy. CP pad Assy Remove the CP pad Assy. Attach a new CP pad Assy. • After inserting the tabs of CP pad Assy to the slit Tabs of C slider, fit the whole.
- Page 12 (3) Cleaning or replace the pinch roller. Cleaning the pinch roller (SPA-0247) when it is dirty. Also replace the pinch roller when it is worn or dirty. Raise the clamp lever to keep the pinch roller lifted. Remove the O-ring retaining the pinch roller. •...
-
Page 13: The Examples Of Defective Printing
11. The examples of defective printing These following examples indicate improper head (nozzle) firing by dust, which effect printing. Confirm the nozzle condition periodically before or during outputting not to use in such as this condition. The nozzle condition can be confirmed with [test printing] in this plotter. (Operation manual Chapter 2 “Test Printing”) 1.Deflection 2.Nozzle out... -
Page 14: Recovery Method Of Defective Nozzle Discharge
12. Recovery method of defective nozzle discharge When this printer has not been used for an extended period of time, or depending on the environmental tem- perature, the discharge at the nozzles could become unstable. In such a case, the following methods may be taken to recover the status of the nozzles. - Page 15 Memo...
- Page 16 You can also download the latest manual from our website. Unauthorized reproduction of any portion of this document is strictly prohibited. 2014 MIMAKI ENGINEERING CO., LTD. D202744-13-20042022 FW :4.20...
