GP P461 Instruction Manual

Pro Charger (USB) 4-Slot NiMH
Instruction Manual
Unpacking and checking
You should find the following items in the packaging*. Please make sure they are undamaged and in good working
order.

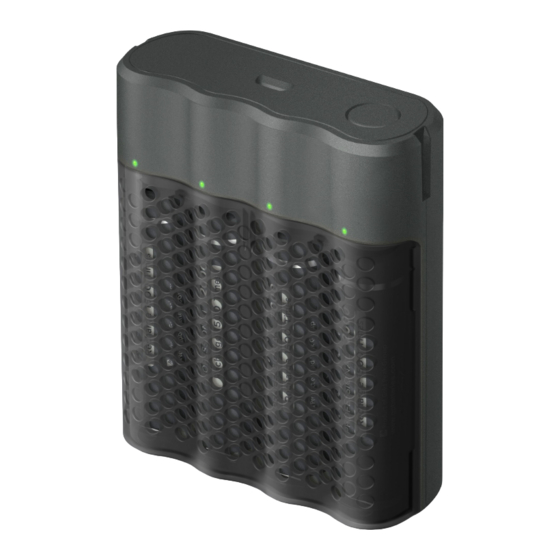

P461 Pro Charger (USB) 4-Slot NiMH
* For exact items in the pack, please refer to "In the box" section of the packaging (wall charger and charging dock may not be
included). The specifications of the wall charger may vary based on the country version purchased.
Charging instructions
Fig. 1b
Fig. 1a
LED indication
(Table 1)
Charging conditions
Charging in progress
Bad or single-use batteries
Charging completed
Built-in capacity indicator
Recommend to charge the batteries
Batteries are ready to use
The built-in battery capacity indicator function is more accurate when the batteries leave in charger in idle mode for more
#
than a day.
^
Press and hold the round button to check the battery capacity (Fig. 4).
Charging time**
Output level
1.7 A
DC 1.4 V 0.85 A
0.7 A
0.35 A
**Charging time is subject to the power rating of USB adapter and ambient temperature.
GP NiHM rechargeable batteries
Fig. 2
#
^
^
(Table 2)
Size
AA
AA
AAA
AAA
Fig. 3
LED indicator
Green (Flashing)
Red (Rapid flashing)
Green
LED indicator
Red
Green
Capacity (mAh)
1,300–2,600 mAh
650–950 mAh
P461
Go to gpbatteries.com for
USB charging cable (input/output)
Fig. 4 Fig. 5
Quantity
1–2 pcs
3–4 pcs
1–2 pcs
3–4 pcs
product information
3 4
1 2
Charging time
0.9–1.8 hrs
1.8–3.6 hrs
1–1.5 hrs
2–3 hrs
