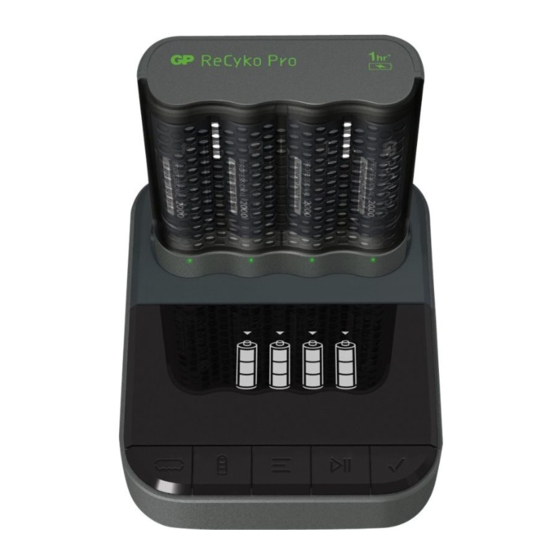

GP ReCyko Pro D461 Instruction Manual

Pro Charger Dock (USB) 4-Slot /
(AC) 8-Slot NiMH with LCD
Instruction Manual
Unpacking and checking
You should find the following items in the packaging*. Please make sure they are undamaged and in good
working order.
D461
Pro Charger Dock (USB) 4-Slot / (AC) 8-Slot NiMH with LCD
*
For exact items in the pack, please refer to "In the box" section of the packaging. The specifications of the wall charger may
vary based on the country version purchased.
Charging instructions
Fig. 1a D461
USB power input: 5V/2A
Fig. 2
P461 Battery Charger
LCD display indications and function buttons
Fig. 4c Charging status
a) Selected battery
b) No battery
c) Bad or single-use battery/error
(flashing)
Fig. 4b Slot selections
D861
a) Slot A selected
b) Slot B selected
c) All slots selected
a b
Battery capacity
Fig. 4a Function buttons
Charging time**
NiHM
(1–8 pcs)
** Charging time varies with different power input and battery capacity in different charger ranges. Please refer to
corresponding charger instruction manual for details.
***Charging time refers to charging one or two P461 battery chargers.
D861
Fig. 1b
d) Aging battery,
replacement
recommended
e) Standby
a
c
Slot Selection
Battery Selection
Size
AA
AAA
D461 / D861
USB charging cable
D861
AC power input: 12V/2A
Fig. 3
Fig. 4d Charging progress
0%
b c d
Function Mode
Pause/Resume
Capacity (mAh)
1300–2600 mAh
650–950 mAh
Go to gpbatteries.com for instruction
video and product information
AC wall charger (D861)
D461
30% 60%
Fig. 4e Function modes
e
a) Fast charging mode
b) ECO charging mode
c) Capacity check mode
d) Conditioning mode
e) Refresh mode
f) Recovery mode
For details of each function
mode, please refer to the
"Function modes" section.
a b
Confirmation
Charging time***
0.9–3.6 hrs
1–3 hrs
D861
90% 100%
c d e f
