INSTRUCTIONS FOR USE
Dual-Loop Attachment Straps
001-05415-EN rev 4 • 10/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dual-Loop Attachment Straps and is the answer not in the manual?

Questions and answers

Related Manuals for Arjo Dual-Loop Attachment Straps

Summary of Contents for Arjo Dual-Loop Attachment Straps

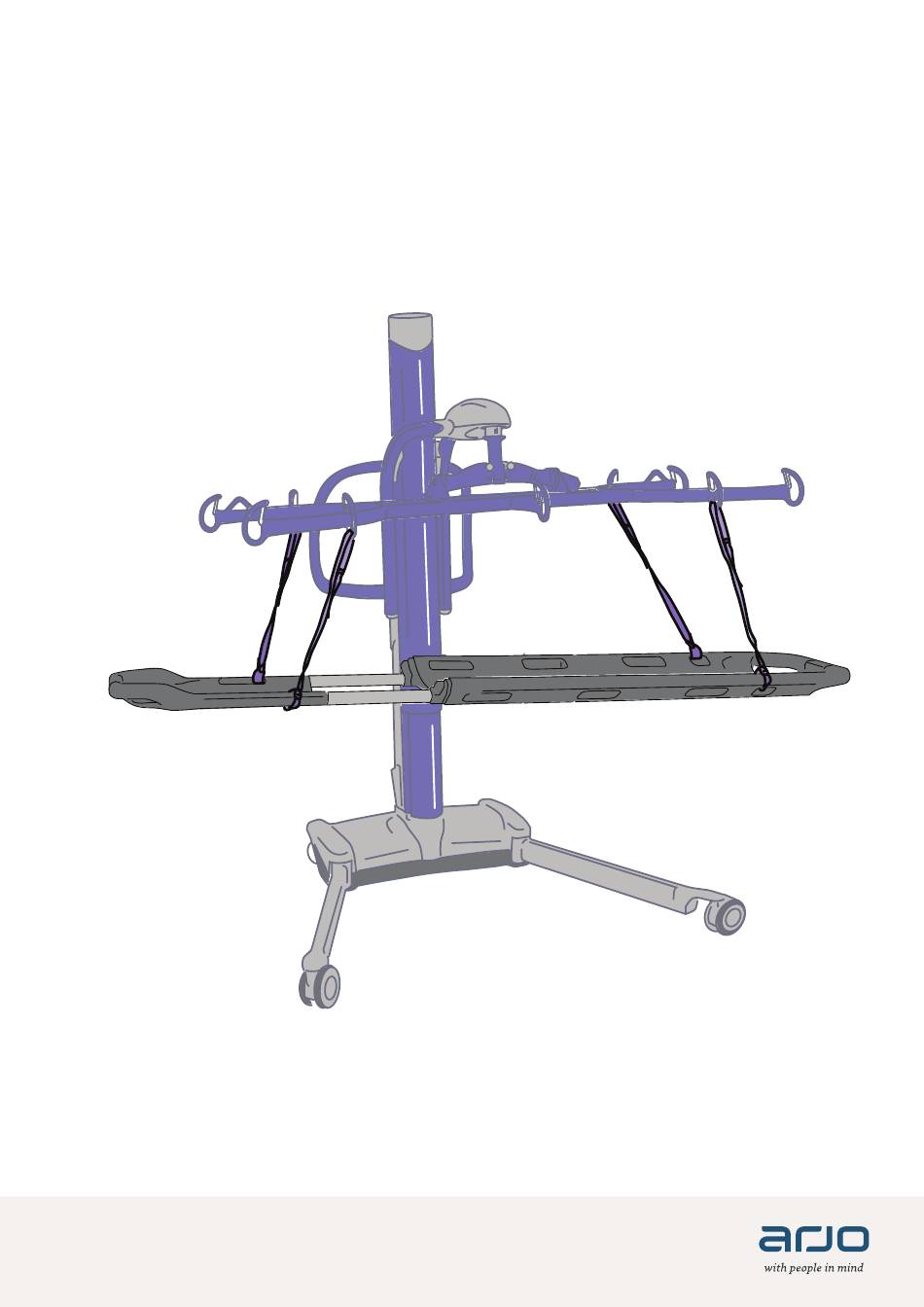

  • Page 1 INSTRUCTIONS FOR USE Dual-Loop Attachment Straps 001-05415-EN rev 4 • 10/2020...
  • Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the Arjo group of companies. © Arjo 2020. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not...

  • Page 3: Table Of Contents

    Safe Working Load ..........................4 Safety Directions ............................4 Parts Designation ............................ 5 DUAL-LOOP ATTACHMENT STRAPS Compatibility ................5 Using the DUAL-LOOP ATTACHMENT STRAPS ...............6 Using the Ferno Scoop EXL Stretcher with the Maxi Move ..............6 Lifting from a Bed or Hospital Stretcher ........................ 6 Care and Maintenance ........................8...

  • Page 4: General Information

    The life span of this product is the safe operating time period before an overhaul is required. Aging, Arjo is dedicated to serving your needs and providing the weight of the patient and maintenance frequency the best products available along with training that...

  • Page 5: Symbols Used

    Symbols Used General Symbols Symbols Key to Symbols Name and address of the manufacturer Manufacturing date. Manufacturer’s catalogue number. CE marking indicating conformity with European Community harmonised legislation. Read the Instructions for use before use. Safe Working Load is the maximum load the device is rated for safe usage.

  • Page 6: Safety Instructions

    • If there is anything in the manual that is confusing or hard to understand, call Arjo or their vendor (the • The straps are properly fastened. telephone number appears on the last page of this •...

  • Page 7: Parts Designation

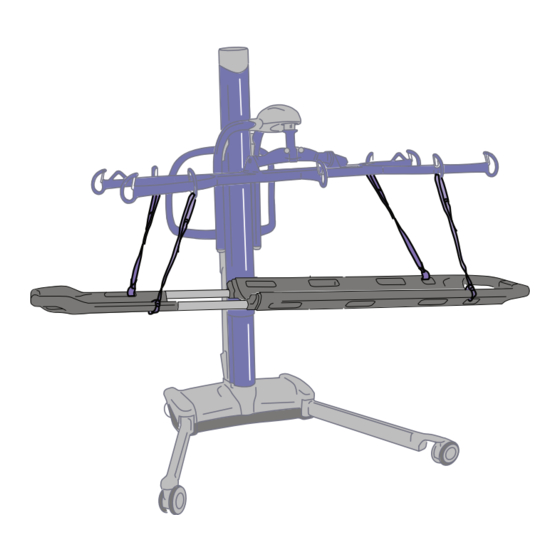

    Fig. 1 DUAL-LOOP ATTACHMENT STRAPS Compatibility The DUAL-LOOP ATTACHMENT STRAPS can only be used with the accessories shown in Fig. 2 below. Foldable Stretcher Frame № 700-19302 and Stretcher Frame № (KPA3060-XX, KMA82339-XX) WARNING: Must not be used with a Maxi Move floor lift featuring an extended jib (KMC**E).

  • Page 8: Using The Dual-Loop Attachment Straps

    The following procedure should only be performed the hooks (See Fig. 4). using the DUAL-LOOP ATTACHMENT STRAPS . WARNING: Inspect the straps prior to each use. See “Straps Inspection” on page 8. Never use a strap if damaged or badly worn as it may result in the patient falling, causing injuries.
  • Page 9 (see Fig. 7). In this position, the complete unit may be moved through wide doorways. Fig. 7 8) Lower the patient down onto the new location. Fig. 8 Using the DUAL-LOOP ATTACHMENT STRAPS...

  • Page 10: Care And Maintenance

    Continuing to use a damaged strap can seriously products. compromise the caregiver’s or patient’s safety. The DUAL-LOOP ATTACHMENT STRAPS should be inspected between each patient use and cleaned Verify the manufacturing date label found on each if needed.

  • Page 11: Specifications

    (26 mm) LABELS (Refer to Care and Maintenance Section). 560 mm Fig. 12 Technical Data PRODUCT INFORMATION DUAL-LOOP ATTACHMENT STRAPS (354-14912) Total weight 0.03 kg (0.07 lb) SWL 227 kg (500 lb) Material Polyester webbing ENVIRONMENTAL CONDITIONS Ambient temperature range Operation and Storage: -40°C to 70°C (-40°F to 158° F)

  • Page 12: Labels

    Labels Fig. 13 Specifications...
  • Page 13 Intentionally left blank...
  • Page 14 Intentionally left blank...
