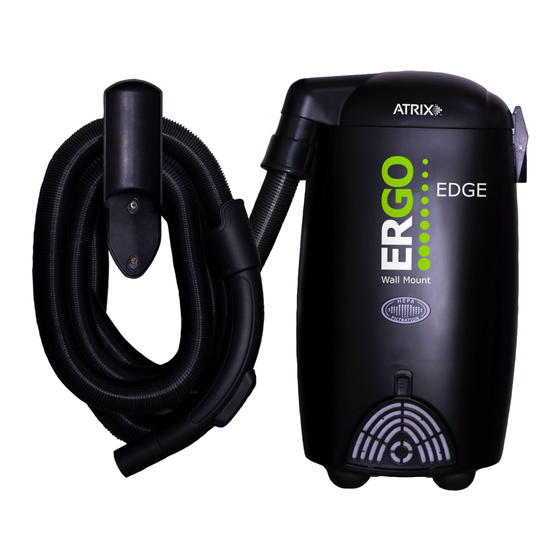

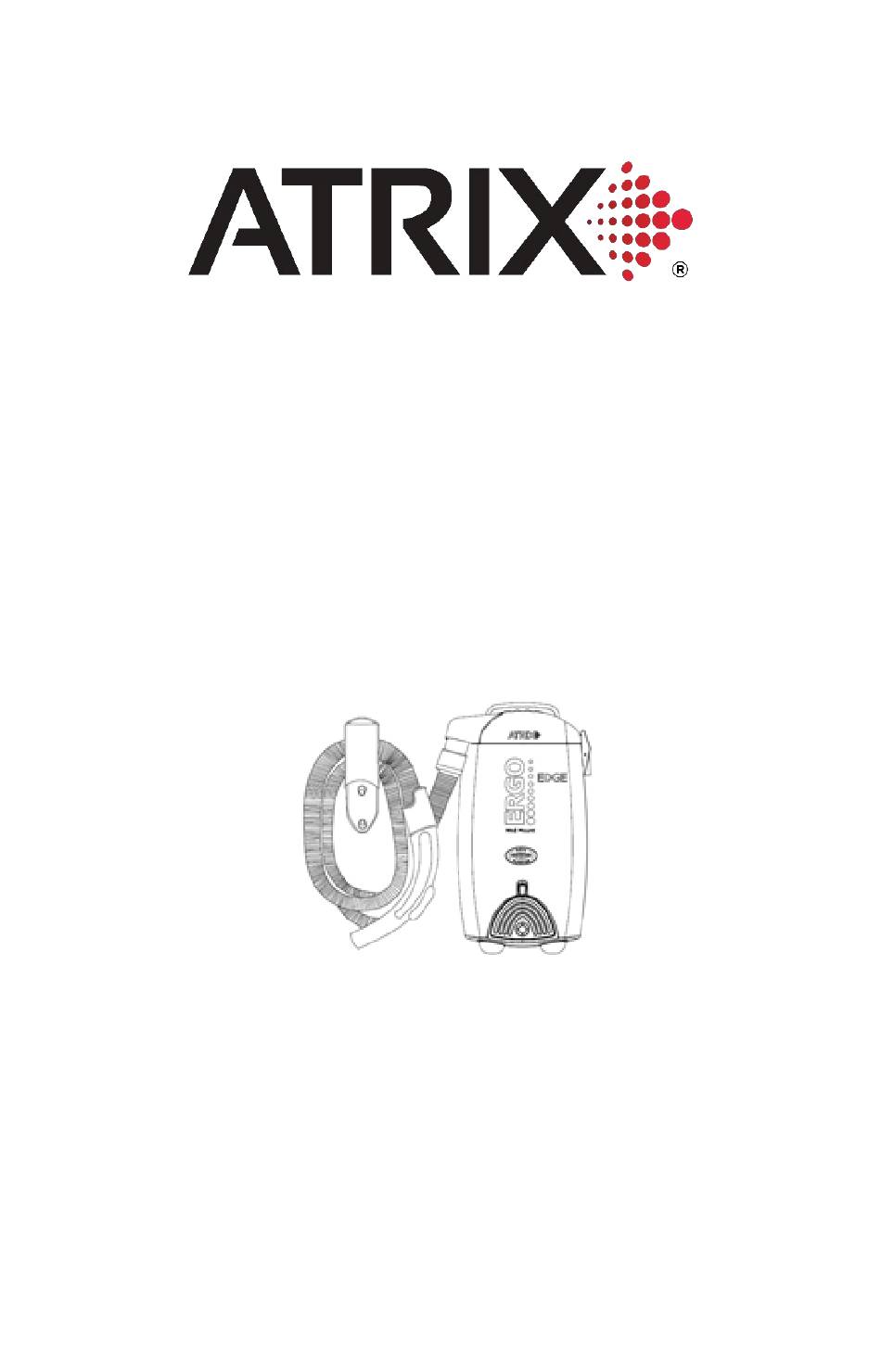

- Page 1 Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn MA 01801 TestEquipmentDepot.com ERGO EDGE WALL MOUNT VACUUM/BLOWER OWNER’S MANUAL Model: VACBP1WV 120V 12A, 1400W ETL US Canada...
-
Page 2: Important Safety Instructions
Atrix International. 6. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges of corners. Do not run appliance over cord. Keep cord away from heated surfaces. - Page 3 13. Turn off all controls before unplugging. 14. Use extra care when cleaning on stairs. 15. Do not use to pick up any liquids, including flammable or combustible liquids such as gasoline or use in areas where they may be present. 16.
- Page 4 GET TO KNOW YOUR ERGO EDGE WALL MOUNT VACUUM...
- Page 5 1. Main Unit 15. Telescopic Tube Button 2. Exhaust Filter Cover 16. Hard Floor Brush 3. On/Off Power Switch 17. Air Driven Turbo Brush 4. Latch 18. Round Dusting Brush 5. 30' Stretch Hose 19. Extraction Tool 6. Telescopic Tube 20.
- Page 6 1. Unplug the power cord and remove the flexible hose. 2. To open the canister lid, press on the canister lid tabs on each side of the unit and lift canister lid. (Fig. 1) (Fig. 1) 3. Pull the tab on the HEPA dust bag holder out slightly and flip upwards.
- Page 7 7. Flip the HEPA bag holder over, pressing the tab on the bag holder until it clicks, then replace the canister lid. 8. The canister lid can be replaced on the unit with the hose opening on the right or left, as per your preference. (Fig. 5) (Fig.
- Page 8 Open gives you less suction, closed maximum suction. For example, less suction is required on upholstery and draperies compared to thick carpets, which require maximum suction. (Fig. 8) Using the Attachments Air Driven Turbo Brush The efficiency of your air driven turbo brush depends on the bristle brush rotating at high speed.
- Page 9 1. Pull up and hold the exhaust tab, with the free hand pull out the exhaust filter cover grill. (Fig. 9) (Fig. 9) 2. Remove the exhaust filter. 3. To place the power port into the exhaust outlet, align the lower tabs on the blower port with the slots on the exhaust.
- Page 10 Using Your Vacuum 1. Insert the power plug into the wall outlet. 2. Connect the hose, and telescopic tube if desired. 3. Turn the unit on by pressing the switch located near the base of the unit to turn the vacuum cleaner on. Warning: To reduce the risk of electric shock, the power cord must be disconnected before removing the...
- Page 11 4. Replace the HEPA dust bag with a new bag. Do not reuse the same bag. 5. The cardboard face of the new bag should rest securely in the dust bag cover guides. (Fig. 13) (Fig. 13) Cleaning & Replacing the Shake-Out Bag - Note: Clean the shake-out bag outdoors when changing the HEPA dust bag.
- Page 12 Cleaning the HEPA Pre-Motor Filter Important – Please Note: The HEPA pre-motor filter will stop most dust particles and airborne allergens from re-entering the air you breathe. The HEPA pre-motor filter will accumulate many fine dust particles that are difficult to see. Be assured that the HEPA pre-motor filter is doing the job.
-
Page 13: Warranty Information
(1) year from the date of purchase. Should any failure to conform to this warranty appear within this period, Atrix will, at its option, repair or replace the defective product. It is the user’s responsibility to return the product, freight prepaid, to Atrix International.
