Summary of Contents for Atrix ERGO PRO VACBPAIC

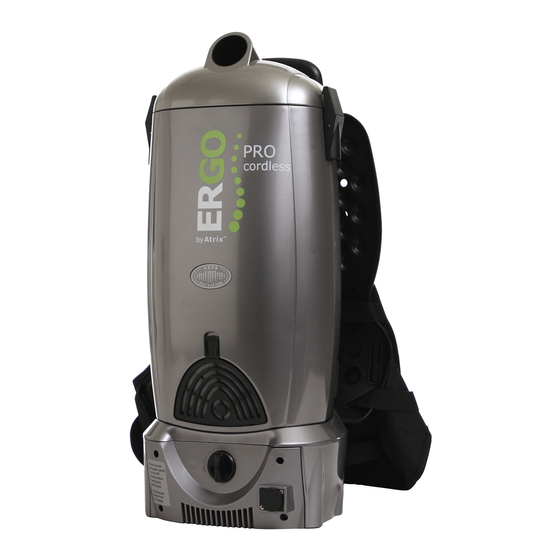

- Page 1 ERGO PRO CORDLESS BACKPACK VACUUM OWNER’S MANUAL Model: VACBPAIC 26V, 300W Atrix 1350 Larc Industrial Blvd. Burnsville, MN 55337 www.atrix.com sales@atrix.com Telephone: 952.894.6154 Toll Free Telephone: 800.222.6154 Fax: 952.894.6256...
-
Page 2: Important Safety Instructions
Battery MUST be REMOVED from the Vacuum prior to charging. Failure to follow the warnings and instructions may result in shock, fire, property damage and or serious injury or death. IMPORTANT SAFETY INSTRUCTIONS Per CFR 49, Lithium Ion batteries are considered “hazardous goods.”... - Page 3 7. DO NOT put any objects into openings. Do not use with any opening blocked, keep free of dust, lint, hair, and anything that may reduce air flow. 8. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
- Page 4 GETTING TO KNOW YOUR ERGO PRO CORDLESS VACUUM 1. Replacement 1.5” Lid Grey (VACBPAILIDG) 2. Replacement Latch (BP34-38) 3. 3a & 3b Assembly - Replacement Handle, Webbing and Harness (BPAIHARN) 4. On/Off Power Switch 5. Replacement Hose 1.5” (VACBPAI39) 6. 7a - 1.5” Aluminum Wand Hose End (VACBPAI37) 7b - 1.5”...
- Page 5 OPERATING INSTRUCTIONS Assembling Your Vacuum 1. Push/press fit the hose into the lid opening. (Fig 1) (Fig. 1) 2. To connect the hose and attachment wand, slide the hose over the hose end wand attachment and over the bump by approx.
- Page 6 4. Secure the utensil to the end of wand. Align the copper ring with the groove on the tool to ensure a secure fit (Fig. 4) (Fig. 4) Using Your Vacuum 1. Ensure the battery pack is assembled and locked in the vacuum.
- Page 7 Replacing the HEPA Bag 1. To open the canister lid, pull up the canister lid tabs on each side of the unit and remove canister lid. (Fig.1) Fig. 1 Fig. 2 2. Pull the tab on the HEPA bag holder out slightly and flip upwards. (Fig.
- Page 8 Cleaning or Replacing the HEPA Pre-Motor Filter Important Please Note: The HEPA pre-motor filter will stop most of the tiniest dust particles and airborne allergens from re-entering the air you breathe. Because of this incredible filtration performance, the HEPA pre- motor filter will accumulate many fine dust particles that are difficult to see.
-
Page 9: Cleaning The Exhaust Filter
Cleaning the Exhaust Filter 1. Pull up and hold the exhaust tab and pull out the exhaust cover. (Fig. 7) 2. Remove the exhaust filter. 3. As necessary, hand wash or replace the cloth filter with tap water and let dry before reinserting it. (Fig. -
Page 10: How To Charge The Battery Pack
When using the charger, basic precautions should always be followed, including the following: Battery and Charging Safety To reduce the risk of electric shock, fire, battery explosion, or injury: 1. Basic information and warning for ATRIX Battery and Charger contained below. detailed... -
Page 11: Specifications And Parts
SPECIFICATIONS AND PARTS Charger Specification: Charger input: 100-240V 50/60Hz AC Charger output: 30V 4A Battery Specification: Lithium Polymer chemistry 26V Approximate charge time: 4 Hours Approximate run time: 60 Minutes 1. 26V Battery Pack (BPAIBAT) 2. Battery Charger (BPAICHG) 3. Cord US, EURO, UK... - Page 12 If the charger’s light is not lit at any point during the charging process, remove the battery pack from the charger to avoid damaging the product. DO NOT insert another battery. Contact Atrix with any issues. BATTERY PROTECTION FEATURE The 26-volt Lithium Polymer batteries are designed with features that protect the Lithium Polymer cells and maximize battery life.
-
Page 13: Warranty Information
Warranty/Service Information, please contact Atrix. Atrix Ergo Pro Cordless Backpack Vacuum, Part no. VACBPAIC, Limited Warranty: To the original user purchasing the Atrix Ergo Pro Cordless Backpack Vacuum, Atrix warrants that the vacuum will be free of defects in material and manufacture for a period of one (1) year from the date of purchase.
